Installation
24 3A6931A
Pump ADM Kit
The pump ADM kit 25E439 comes fully assembled and
ready to attach to the pump. The mounting holes for the
ADM are located next to the ports for the cable
connections as shown in Figure 46.
1. Align the mounting bracket with the mounting holes
on the pump.
2. Attach the ADM assembly using the washers (410),
locking washers (404), and fastener knobs (403).
3. Adjust the ADM to the required angle and tighten
the two knobs until it is secure.
4. Connect the CAN cable (407) to the ADM as shown
in Figure 47.
5. Connect the other end of the CAN cable (407) to the
electric driver in Port 1.
6. Install the software as described in the E-Flo SP
Software Instructions. See Related Manuals on
page 2.
Ram ADM Kit
The ram ADM kit 25E437 needs to be attached to the
ADM bracket that is included in each of the ram
conversion kits.
1. Mount the ADM (501) to the ADM bracket on the
ram as shown in Figure 49.
2. Connect the CAN cable (502) to the ADM (501) as
shown in Figure 47.

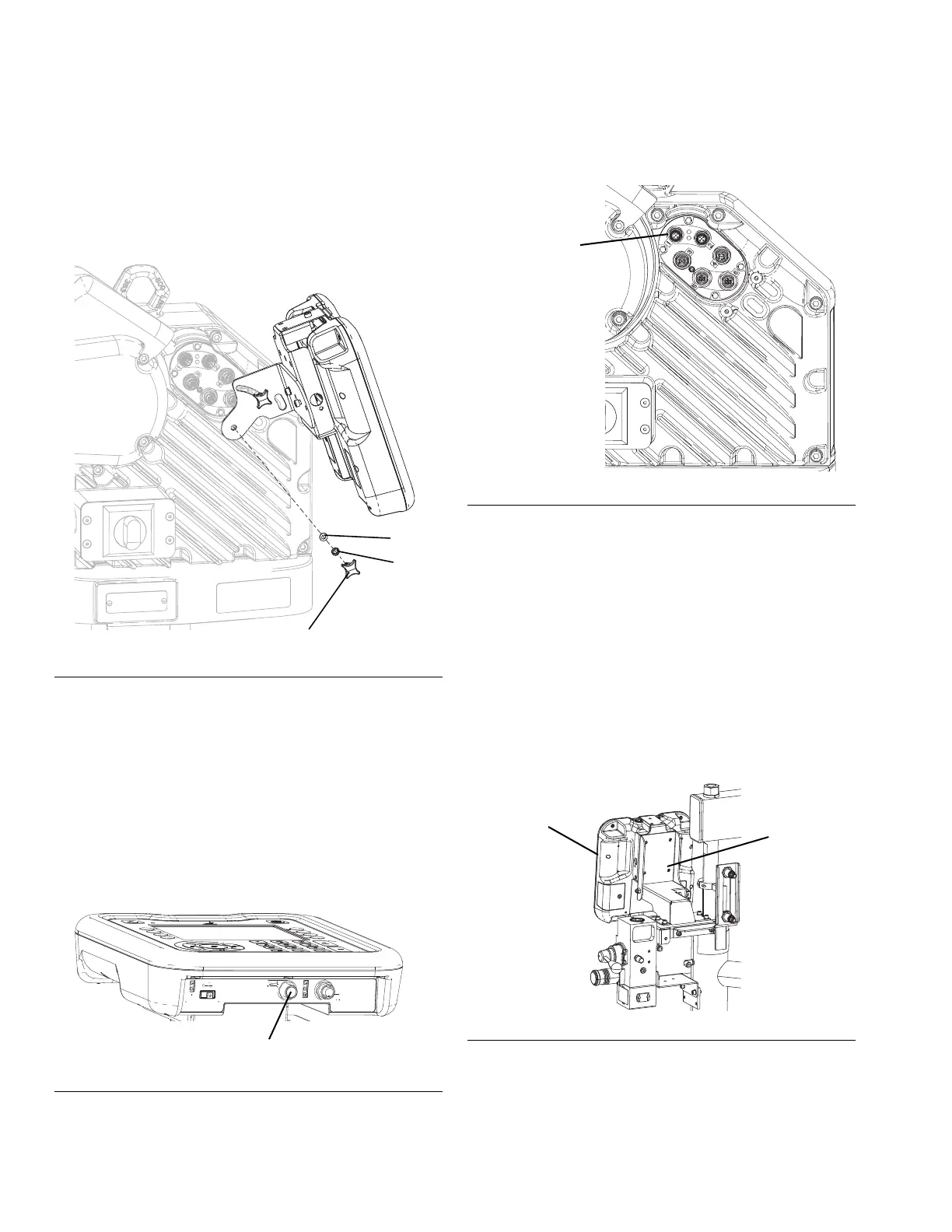

FIG. 46: Mount ADM to the Pump
FIG. 47: ADM CAN Cable Connection
FIG. 48: Electric Driver Port for CAN Cable
FIG. 49: Mount the ADM to the Ram
