Installation
16 3A6931A
23. Refer to Connect Power to an Electric Ram
System on page 23 to connect power to the ram
junction box.
Air to Electric D200 Ram
Conversion Kits
The air to electric D200 ram conversion kit is available in
three options depending on the pump lower size.
Disassemble the Air Motor Ram
1. Follow the Pressure Relief Procedure for the air
motor pump and ram system you are using. See
Related Manuals on page 2.
2. Remove the main air supply from the air controls.
3. See Figure 21 and remove the pump coupling,
pump lower, and three tie rods from the air motor
supply system. Save these parts to be used when
installing the kit. Refer to the Supply Systems
Operation manual and the Supply Systems
Repair-Parts manual. See Related Manuals on
page 2.
4. Remove the air motor supply hose and fittings from
the top of the air controls.
5. On the air controls, disconnect the air motor shutoff
and control sections together by removing the two
screws underneath the air motor control as shown in
Figure 21. Lift the two sections to remove them.
Remove the o-ring from around the hole in the top of
the air controls.
6. Remove the air motor from the ram.
Assemble the Electric D200 Ram
Conversion Kit
NOTE: Refer to the Air to Electric D200 Ram
Conversion Kit, 25P283-85 parts on page 35 for
correct assembly.
1. Refer to Figure 22 and remove the hex nut from the
ram’s cross beam. Place the cable track bracket
(219) on the cross beam with the track on the rear of
the beam and replace the hex nut.
Kit
Number Pump Lower Size
25P283 CM100
25P284
CM200, CM250, DF115, DF145,
DF180, DF220, DF290
25P285 CM500, DF430

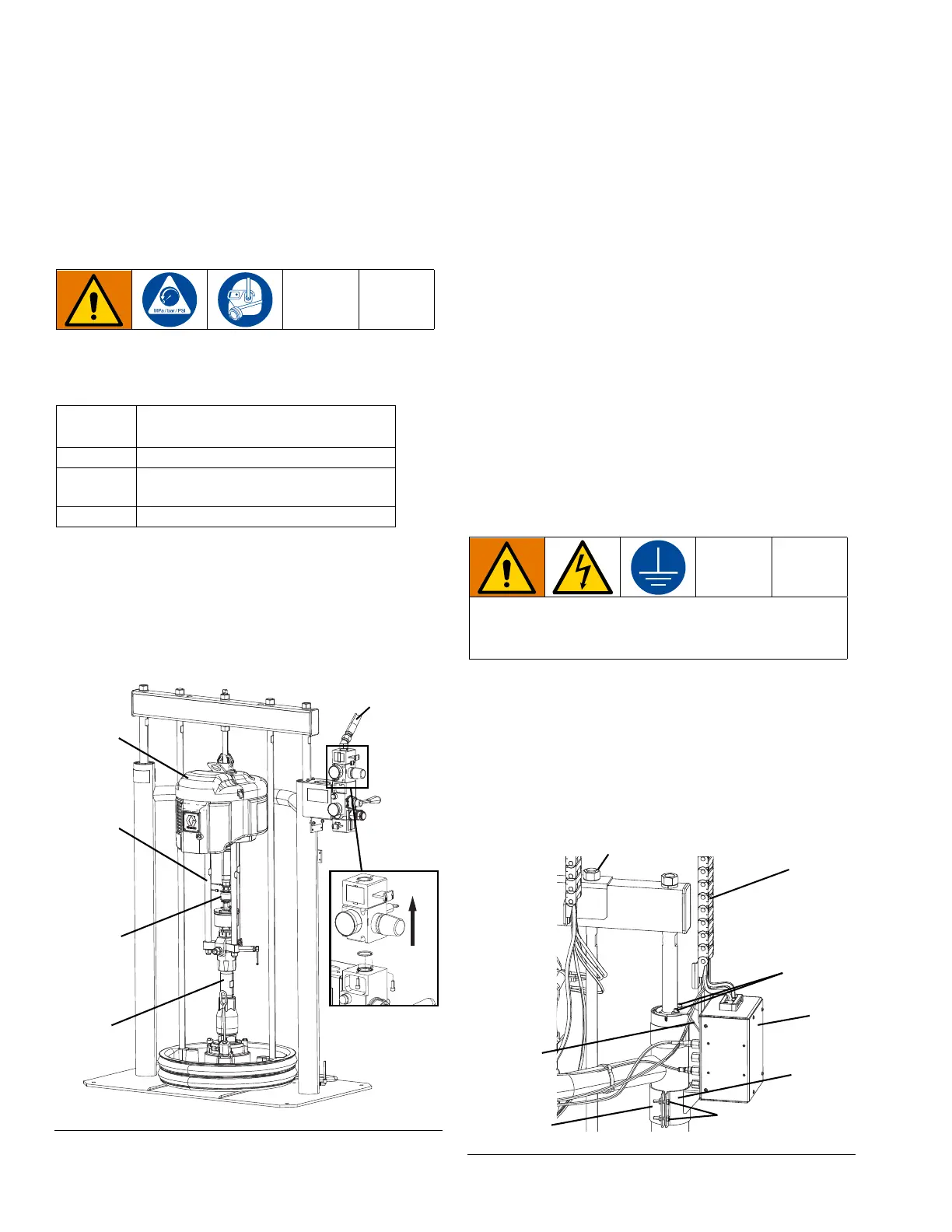

FIG. 21: D200 with Air Motor
Air Motor
Air Motor
Air Supply
Fittings
Pump
Coupling
Tie Rods
Pump
Lower
Air Motor
Shutoff/
Control
All electrical wiring must be done by a qualified elec-
trician and comply with all local codes and regula-
tions.
FIG. 22: D200 Cable Track and Ram Junction Box
219
213,214
213,215,216
210
211
209
Hex Nut
208
