Graco E-Flo SP - E-Flo SP Ram Transformer Kit, 25 E202

Parts
44 3A6931A
E-Flo SP Ram Transformer Kit, 25E202
* Not shown.
 Replacement safety, labels, tags, and cards are
available at no cost.

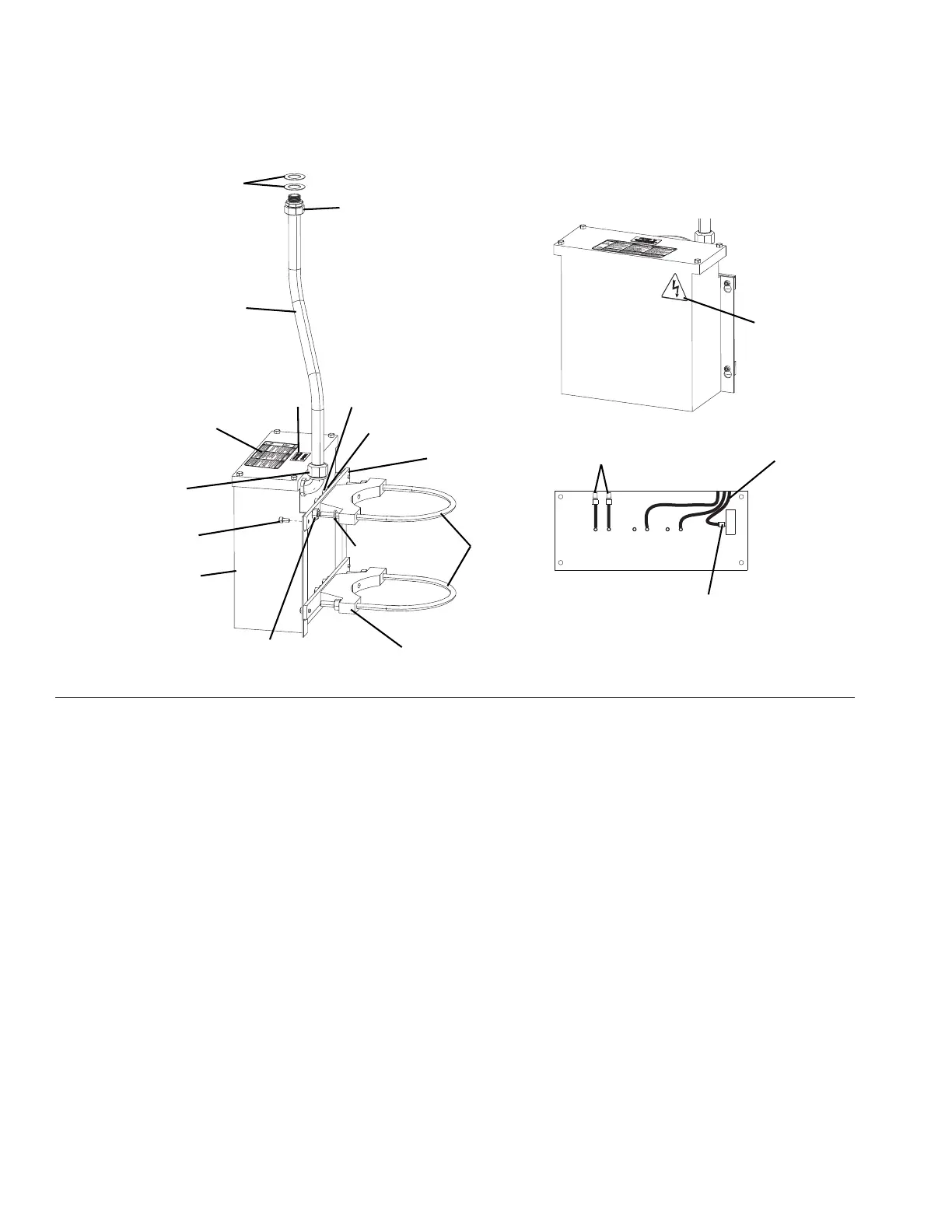

FIG. 68:E-Flo SP Ram Transformer, 25E202
813(x4)
812
802
809
H3 X3
H2
X2
H1
X1
815,816
817
819
(x3)
801(x4)
803(x4)
805
807(x8)
804(x4)
806(x2)
808(x2)
821
810
811
814
820
Ref Part Description Qty
801 100101 SCREW, cap, hex hd
4
802 16K918 LABEL, power in, branch circuit
1
803 C19200 WASHER, plain
4
804 100131 NUT, full hex
4
805 C32424 BOLT, u, 7 in.
2
806 617395 CLAMP, saddle
2
807 100133 WASHER, lock, 3/8
8
808 17X836
BAR, xformer mtg, 6 in. ram,
painted
1
809 196548 LABEL, caution
1
810 17D987
CONNECTOR, conduit,
liquid-tight
1
811 120800 CONDUIT, 1/2
1
Ref Part Description Qty
812 17D989
CONNECTOR, conduit,
liquid-tight, 0
1
813 107530 SCREW, cap, sch, hex
4
814 129626 TRANSFORMER, 480 v
1
815 127431
CONNECTOR, butt splice, 12-10
awg, yl
2
816 070414 TUBE, poly heat shrink
0.1
817 065388
WIRE, copper, electric, 14 awg,
g/y
1
818 124443*
TERMINAL, ring, insulated,
1/4,12-10
1
819 127667 FERRULE, 16 ga twin wire
3
820 25E178 LABEL, safety, danger
1
821 114170 WASHER, flat
2
