Graco EcoQuip - Setting Up the Equipment

Operation
Setting Setting
Setting
Up Up
Up
the the
the
Equipment Equipment
Equipment

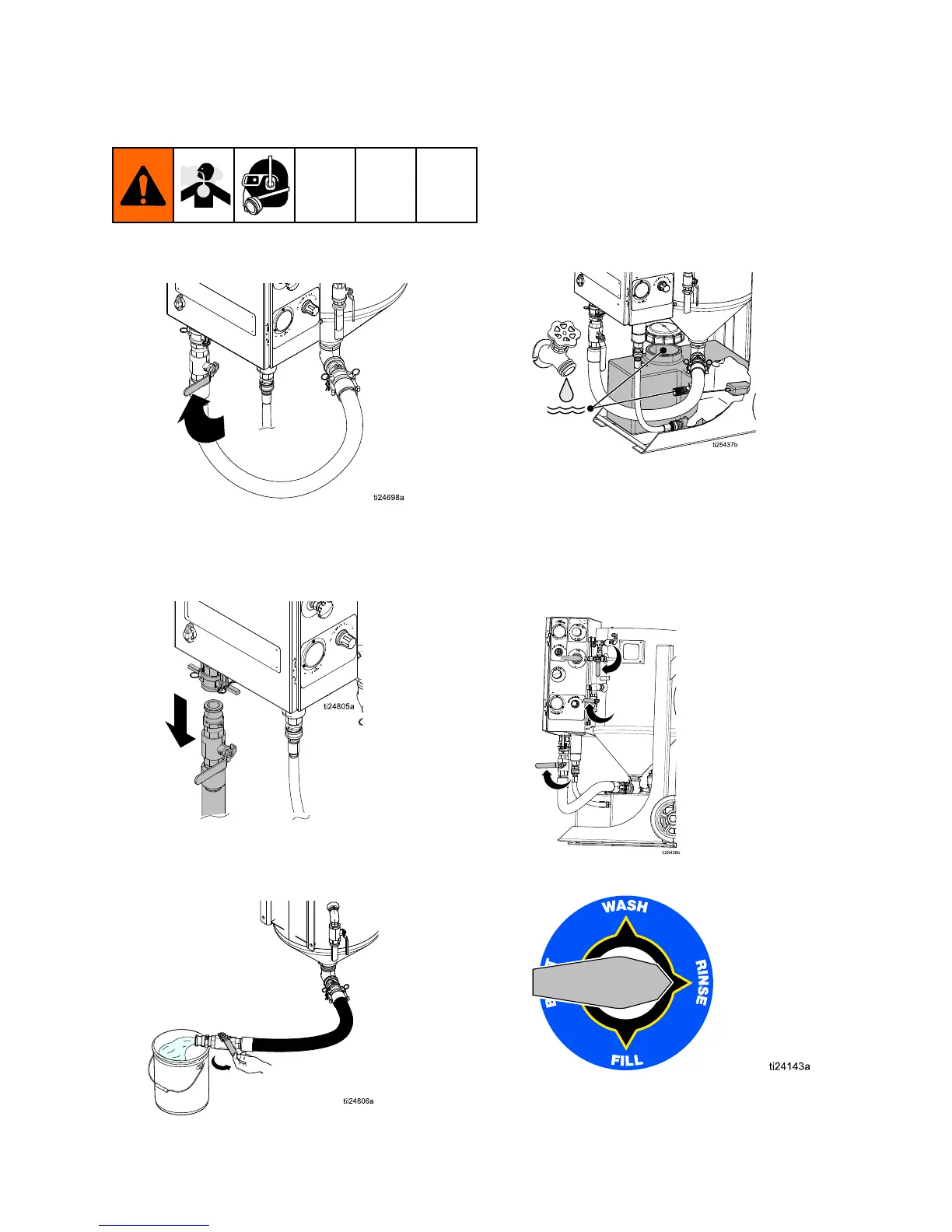

1.Disconnecttheabrasivehoseatthecamand
groovewiththeabrasiveballvalveclosed.
NOTE: NOTE:
NOTE:
Ifthepotcontainswaterandabrasive
(especiallyunderpressure),disconnectingthe
cam-lockwiththeballvalveopenwillcausean
unintentionalreleaseofabrasive.
2.Flushwaterthroughthepotandoutofthe
disconnectedabrasiveballvalvebefore󰘰llingthe
potwithwaterandabrasive.
3.Reconnecttheabrasivehose.
4.Disconnectthepumpinlethoseand󰘱ushthe
watertanktoremoveanyremainingdebris.
Reconnectthepumpinlethose.
5.Fillthewatertankonlywithfreshwater.Connect
hosewithatleasta3/4in.(19mm)IDfromwater
supplyto3/4in.gardenhoseinletonwatertank.
NOTE: NOTE:
NOTE:
Themaximumwatersupplypressureis
100psi(6.8bar,.068MPa).Usea󰘱uidregulator
ifnecessary.
NOTE: NOTE:
NOTE:
Theminimum󰘱owrequirementis3gpm
(11lpm).
6.Closetherinse,dump,andabrasiveballvalves.
7.TurntheselectorvalvetoRINSE.
