Graco EM 5000 - Page 35

307-913 35

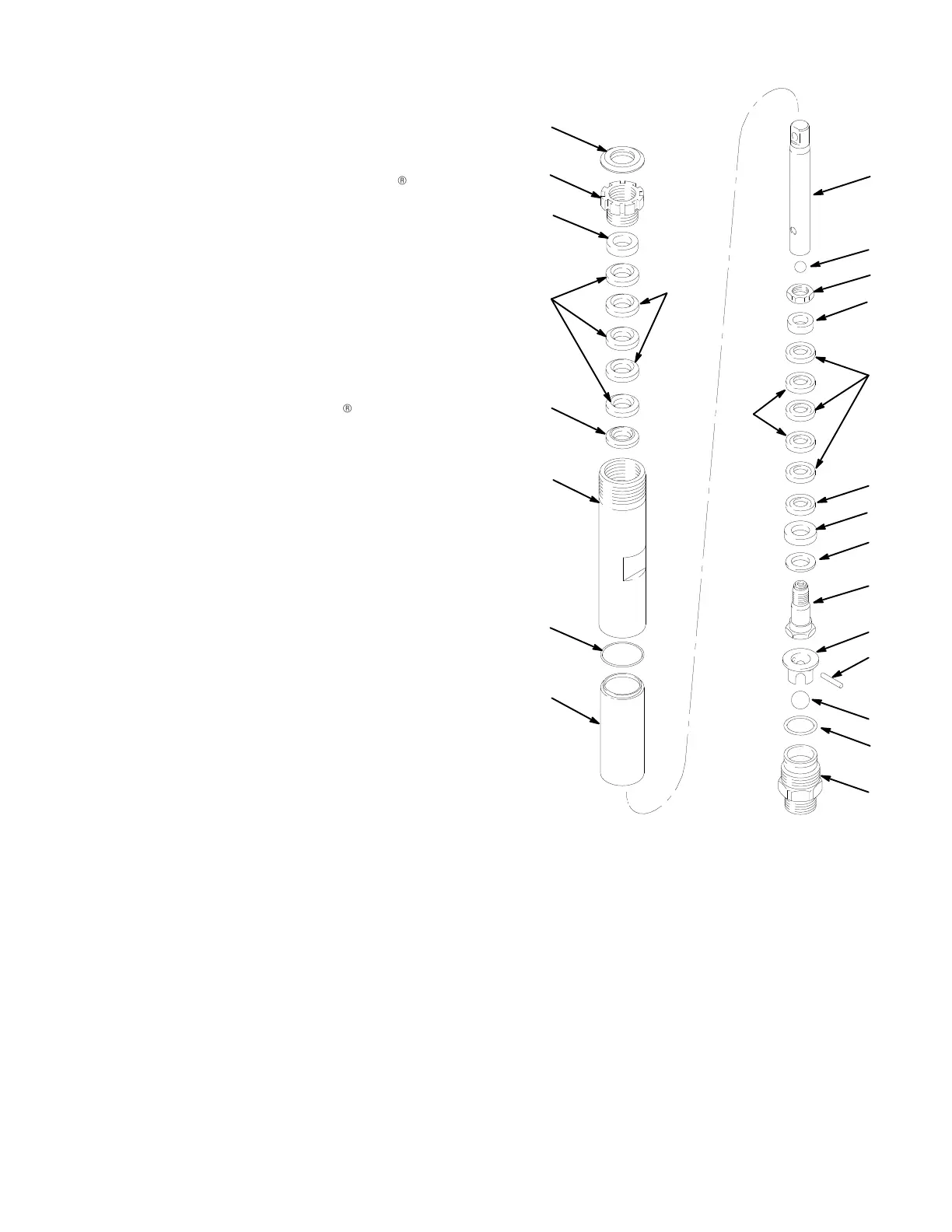

Displacement Pump Parts List & Drawing
Model 220–872, Series A
Includes items 401 to 425
REF
NO. PART NO. DESCRIPTION QTY
401 107–098* P
ACKING, o–ring, PTFE  1
403 108–690*
SEAL, u–cup, polyurethane 1
404 108–775* BALL; sst 1
405 183–171* PLUG 1
406 183–174* V–P
ACKING, leather 2
407 183–175* V–P
ACKING, leather 2
408 183–176*
GLAND, male 1
409 183–177*
GLAND, female 1
410 183–178*
GLAND, male 1
411
183–179 NUT , hex, retaining 1
412 183–182* V–P
ACKING, polyurethane 3
413 183–183* V–P
ACKING, polyurethane 3
414 183–653* WASHER, backup 1
415 183–185*
GLAND, female 1
416
183–186 NUT , packing 1
417 183–172* O–RING, PTFE
 1
418
183–361 SLEEVE, cylinder 1
419
183–181 CYLINDER 1
420
183–180 GUIDE, ball 1
421 183–173*
PIN, ball stop 1
422
220–631 VAL VE, piston 1
423
220–629 VAL VE, intake 1
424
220–630 ROD, piston 1
425 101–947*
BALL 1
*These parts also supplied in accessory
Packing Repair Kit 220–877.
Keep an extra kit on hand to reduce down time.
*405
416
*409
*413
*408
419
*417
418
407*
424
425*
411
410*
415*
403*
414*
422
420
421*
404*
401*
423
*406
412*
