Application Programming Instructions
18 313855K

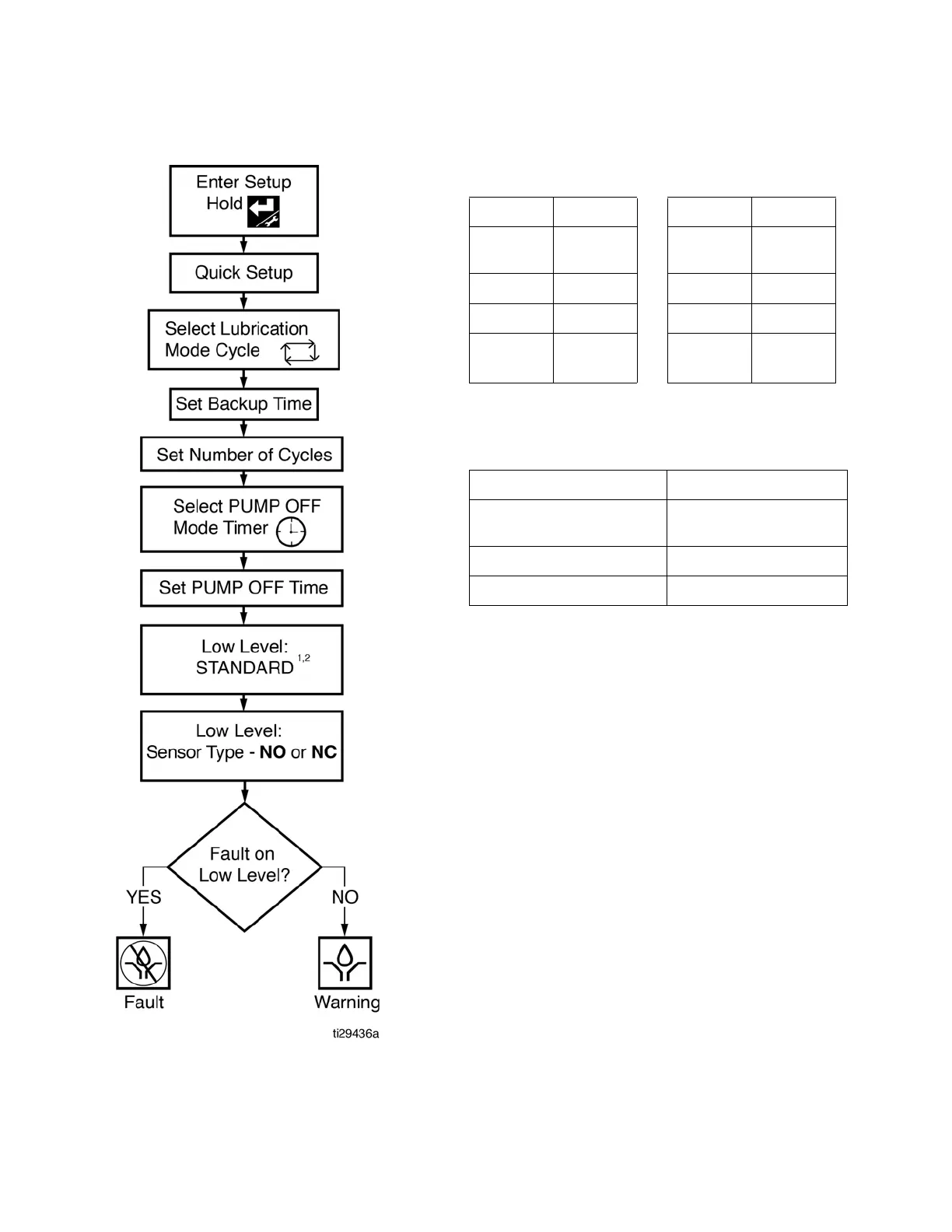

GLC4400 Series Progressive Programming
Wiring Information
Advanced Settings to Consider
Notes:
1. If Low Level is not connected, select SKIP.
2. If G3 Pump, select PADDLE.
3. See programming instructions sections of manual
for machine count programming information.
Signal
J? +, -
Signal
J? Pin#
Power
J7 1, 2
Pressure
Switch
J6 2
Pump
J7 3, 4
Low Level
J6 6 (opt)
LL Alarm
J7 5, 6 (opt)
Remote Run
J6 10 (opt)
Aux Alarm
J7 7, 8 (opt)
Machine
Count
3
J6 14 (opt)
Prelube? ADVANCED -> POWER UP
Lubrication Delay at
Startup?
ADVANCED -> POWER UP
Reciprocate Pump? ADVANCED -> PULSED
Recommended ADVANCED-> PIN CODE
