Pulsed Pump Screen
1. Use the Arrow keys to move the cursor over the
PULSE pull-down menu.
2. Press ENTER.
3. Use the UP/DOWN Arrow keys to move cursor to
select ON.
4. Press ENTER.
5. Use the Arrow keys to move the cursor over the
TIME OFF field.
6. Press ENTER.
NOTE: The time is displayed in Seconds.
7. Use the UP/DOWN arrows to move up and down
through the numbers 0-9 until the first number of the
TIME OFF you are creating is displayed in the field.
8. Use the RIGHT arrow to move the cursor to the next
field. Repeat step 7.
9. Press ENTER.
10. Use the Arrow keys to move the cursor over the
TIME ON field.
11. Press ENTER.
NOTE: The time is displayed in Seconds.
12. Use the UP/DOWN arrows to move up and down
through the numbers 0-9 until the first number of the
TIME ON you are creating is displayed in the field.
13. Use the RIGHT arrow to move the cursor to the next
field. Repeat step 7.
14. Press ENTER.
15. Press RESET. The Main Screen, page 24 displays.
NOTE:
• The maximum Time Off and Time On is
99 seconds.
• The minimum Time Off is 3 seconds.
• The minimum Time On is 0 (zero) seconds.
PIN Setup
If protection for the setup mode is desired, a PIN Code
entry can be enabled.
1. Use the UP/DOWN Arrow keys to move the cursor
over PIN CODE.
2. Press ENTER to display the PIN CODE setup
screen.

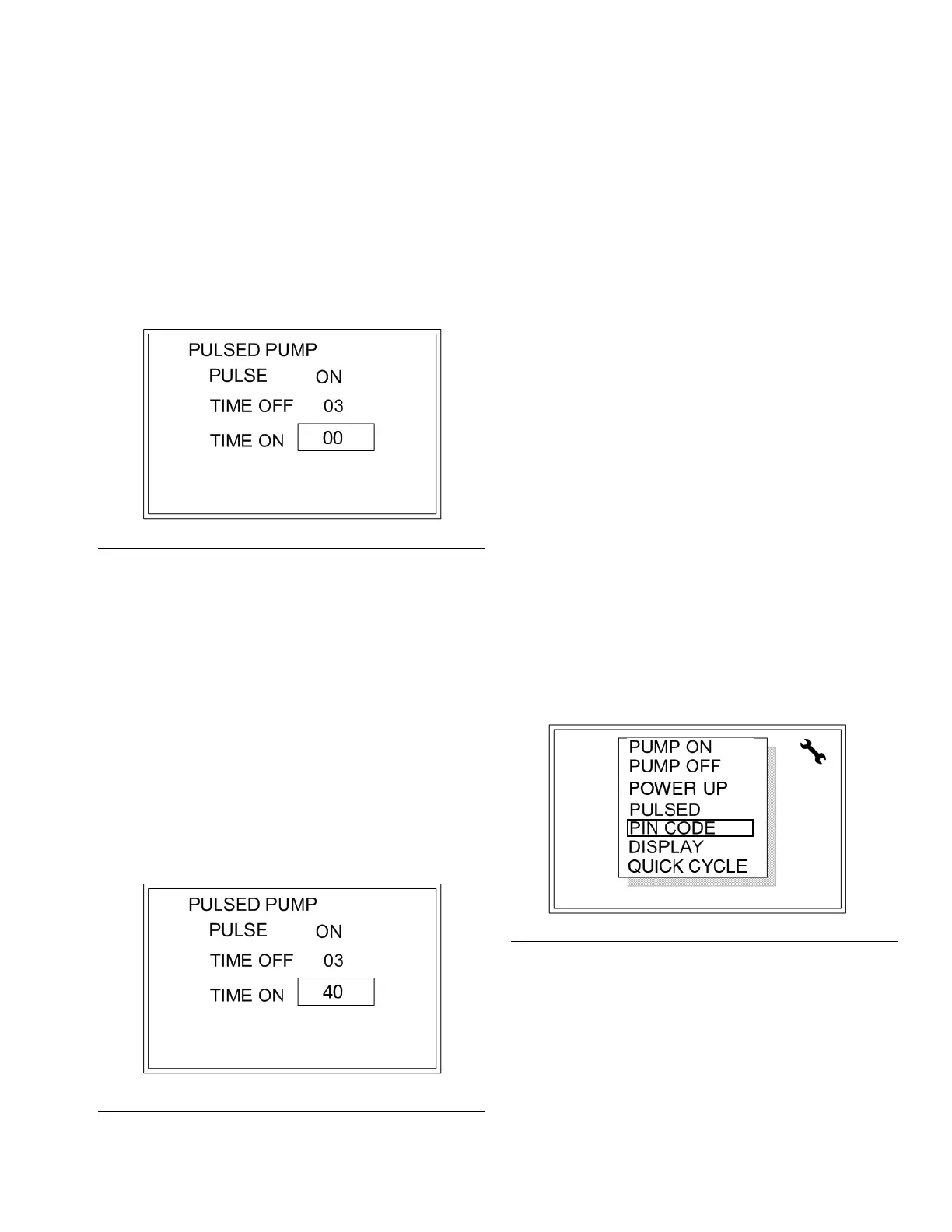

F
IG. 42
F
IG. 43
