Setup
20 313855K
Setup

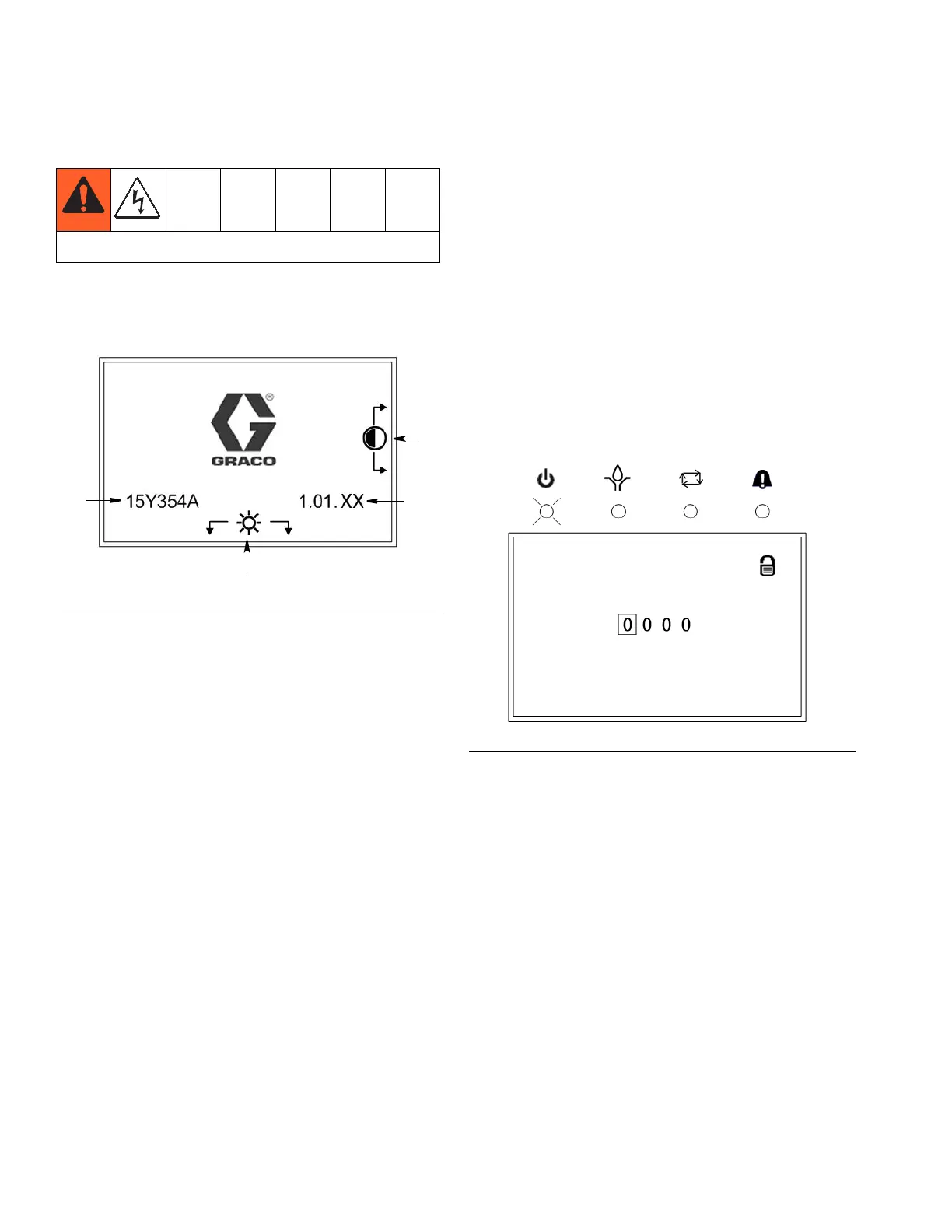

When you first turn on power to the Lubrication Control-
ler, the following identification screen displays.
A Display Contrast Adjustment: UP and DOWN
Arrows can be used to adjust the display contrast.
B Brightness Adjustment: LEFT and RIGHT Arrows
can be used to adjust the backlight brightness.
NOTE: Contrast and Brightness adjustments can be
made on any Run Screen at any time.
C Software (Part Number): 15Y354
D (Software) Version: 1.01.XX
NOTE: The example of the Software Version (D) shown
in F
IG. 20 displays “XX” as the last two numerals. On
your Controller’s screen, the “XX” will be replaced by the
current software version numbers.
PIN Mode Enabled
1. To access Setup Mode, hold down the ENTER key
for 3 seconds. The PIN ModeScreen shown in F
IG.
21 displays.
NOTE:
• The Pin Mode screen shown in F
IG. 21 only displays
when the PIN mode is enabled. For setting up sys-
tems when the PIN mode is not enabled, go to Sys-
tem Setup instructions on page 21.
• Before the PIN Mode screen shown in F
IG. 21 can
display, the PIN Mode must be enabled in an previ-
ous setup sequence. See PIN Setup, page 31.
2. The PIN Mode screen in F
IG. 21 displays.
NOTE: The PIN Code prompt spaces are initially blank.
3. Use the LEFT / RIGHT arrow to position the cursor
over the first blank PIN Code prompt field (F
IG. 21).
4. Use the UP/DOWN arrows to move up and down
through the numbers 0-9 until the first number in the
PIN code is displayed in the field.
5. Use the RIGHT arrow to move the cursor to the next
field.
6. Repeat steps 4 and 5 for each PIN Code prompt
field.
7. When finished, press ENTER.
