Setup

313855K 25

PRESSURE Setup

NOTE: Time is displayed in HH:MM:SS.

1. Use the Arrow keys to move the cursor over the

PUMP ON time box.

2. Press ENTER.

3. Use the UP/DOWN arrows to move up and down

through the numbers 0-9 until the first number in the

PUMP ON time is displayed in the field.

4. Use the RIGHT arrow to move the cursor to the next

field.

5. Repeat steps 3 and 4 until the desired time is dis-

played.

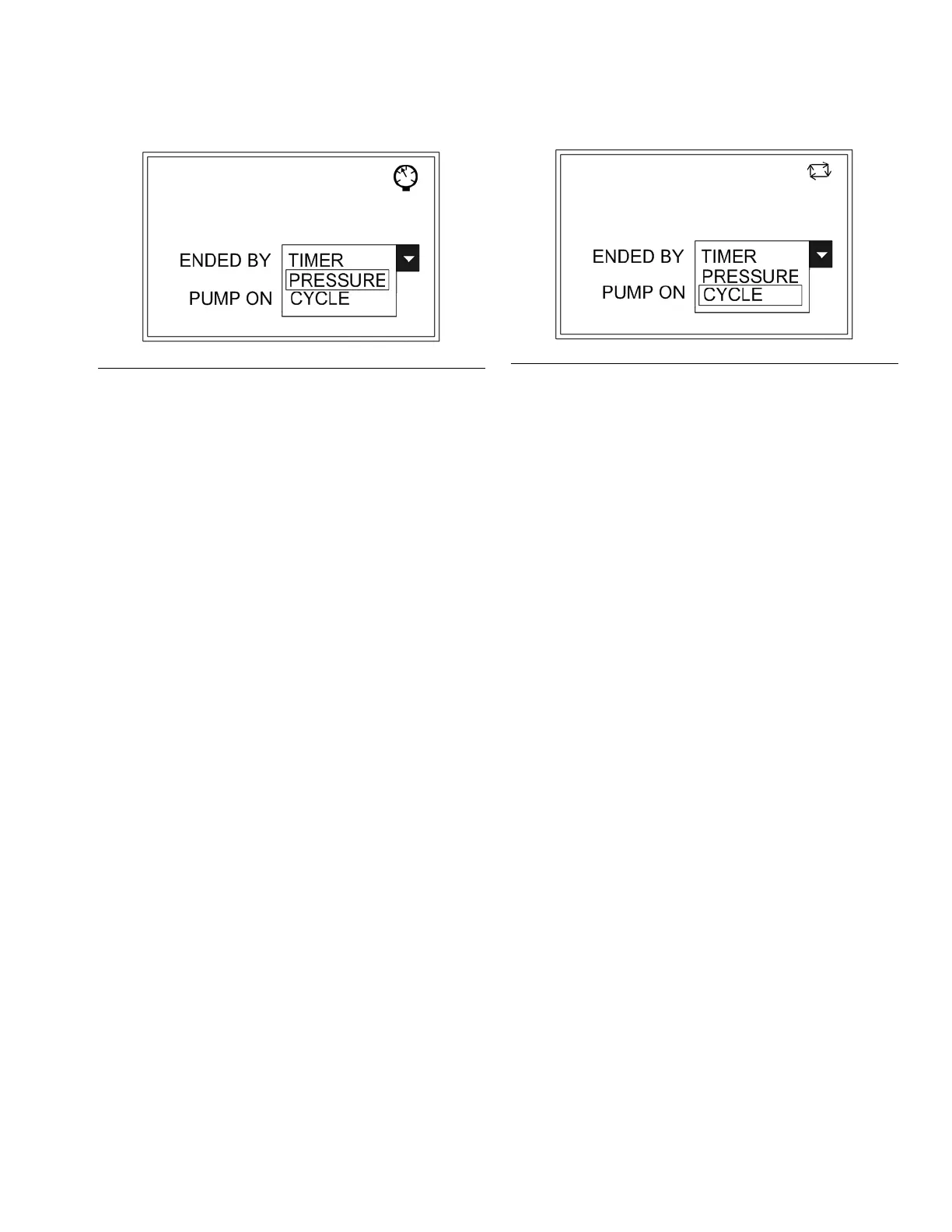

6. Use the Arrow keys to move the cursor over the

ENDED BY pull-down list.

7. Press ENTER.

8. Select PRESSURE from the pull-down list.

9. Press RESET. The Main Screen, page 24 displays.

NOTE: When PRESSURE is selected, the Pressure

Icon will display on the top right corner of the screen.

CYCLE END Setup
