Graco GLC 4400 - PIN Code Entry and DISPLAY Setup; Enable PIN Code Entry

Setup
32 313855K

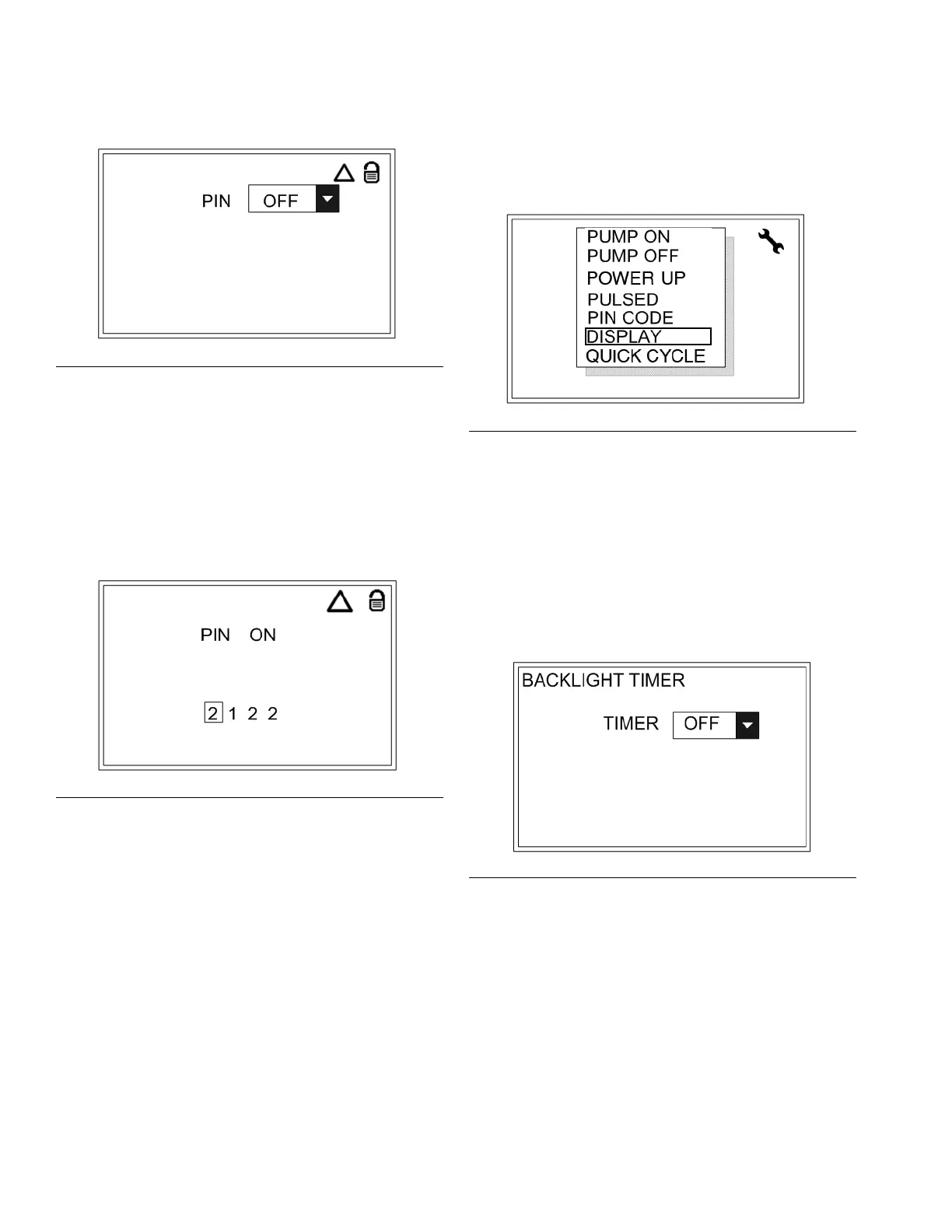

To enable PIN Code Entry:
1. Use the Arrow keys to move the cursor over the PIN
pull-down menu.
2. Press ENTER.
3. Use the UP/DOWN Arrow keys to move cursor to
select ON.
4. Press ENTER.
5. Use the Arrow keys to move the cursor over the PIN
CODE prompt field.
6. Use the LEFT/RIGHT arrow to position the cursor
over the first blank Pin Code prompt field (F
IG. 21).
7. Use the UP/DOWN arrows to move up and down
through the numbers 0-9 until the first number in the
PIN code you are creating is displayed in the field.
8. Use the RIGHT arrow to move the cursor to the next
field. Repeat step 7
9. Repeat steps 7 and 8 for each PIN Code prompt.
10. Press RESET. The Main Screen, page 24 displays.
DISPLAY Setup
Adjust setting related to the display and backlight.
1. Use the UP/DOWN Arrow keys to move the cursor
over DISPLAY.
2. Press ENTER to display the DISPLAY setup screen.
Display Backlight
The display backlight can be set to turn off after a pro-
grammed amount of time. If the backlight is OFF it will
turn back on when any front panel key is pressed.
1. Use the Arrow keys to move the cursor over the
TIMER pull-down menu.
2. From the pull-down menu, select ON.
3. Press ENTER.
F
IG. 45
F
IG. 46
FIG. 47
F
IG. 48
