Graco GrindLazer 270 Repair Manual

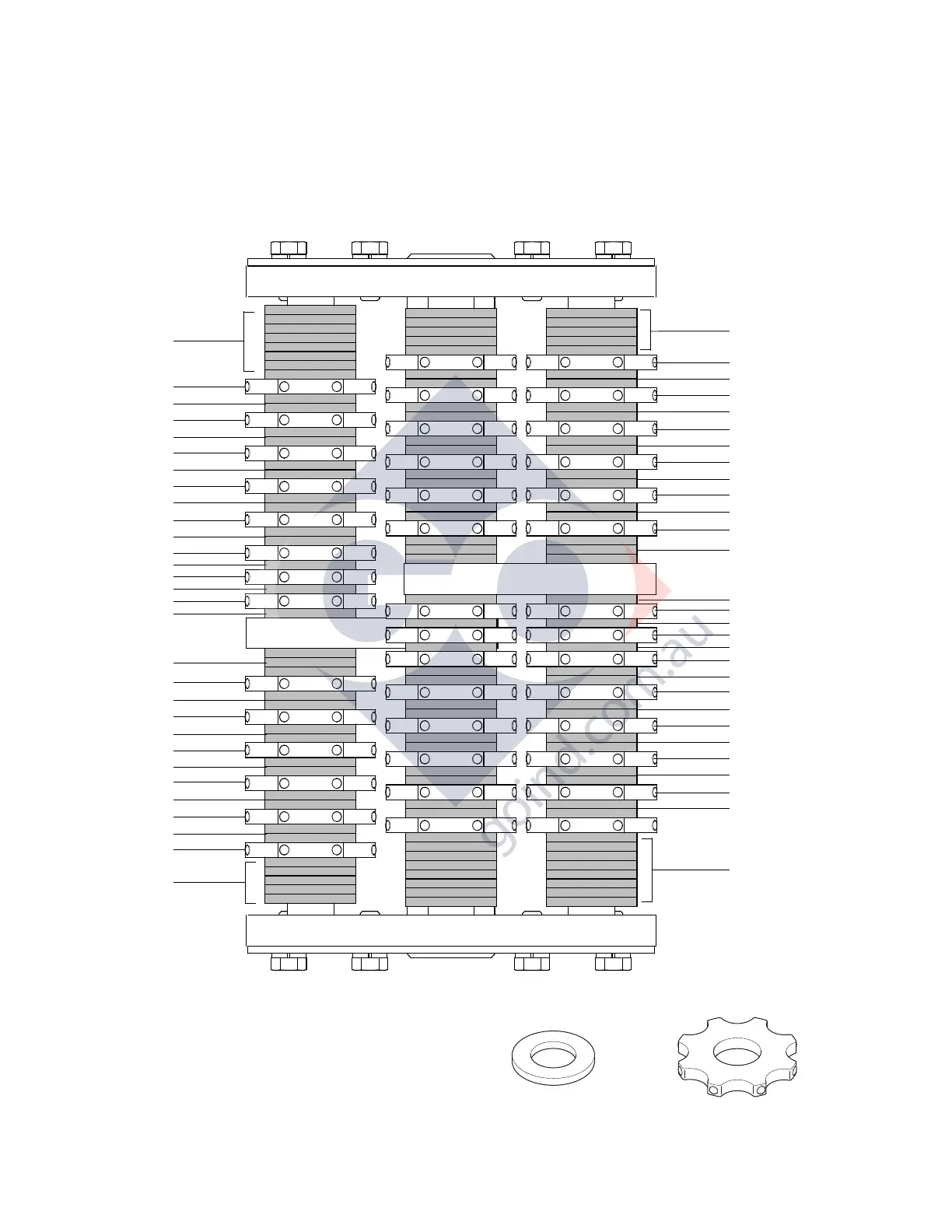

Cutter Stacking Recommendations
18 3A0102D
8 in. (20 cm) Coarse Cut Flail Cutters (Double Space)
234 Spacers / 84 Cutters
INSTRUCTIONS: Rotate sequence 180° and repeat for
remaining shafts.
2 (S)
2 (S)
1 (C)
(S) Spacer
(C) Carbide Cutter
5 (S)
1 (C)
3 (S)
2 (S)
1 (S)
1 (C)
2 (S)
1 (C)
2 (S)
1 (C)
2 (S)
1 (C)
2 (S)
1 (C)
2 (S)
1 (C)
1 (S)
1 (C)
1 (S)
1 (C)
2 (S)
1 (C)
2 (S)
1 (C)
14 (S)
ti15046a
ti15053a
1 (C)
8 (S)
1 (C)
2 (S)
1 (C)
1 (C)
1 (C)
1 (C)
1 (C)
1 (C)
1 (C)
2 (S)
2 (S)
2 (S)
2 (S)
1 (S)
1 (S)
1 (S)
3 (S)
1 (C)
1 (C)
1 (C)
1 (C)
1 (C)
1 (C)
5 (S)
2 (S)
2 (S)
2 (S)
2 (S)
2 (S)
NOTE: Assembly may vary due to tolerances.
Stack cutters and spacers so the drum is properly
balanced to prevent excessive vibration.
