Graco GrindLazer 270 Repair Manual

Belt Replacement
3A0102D 9

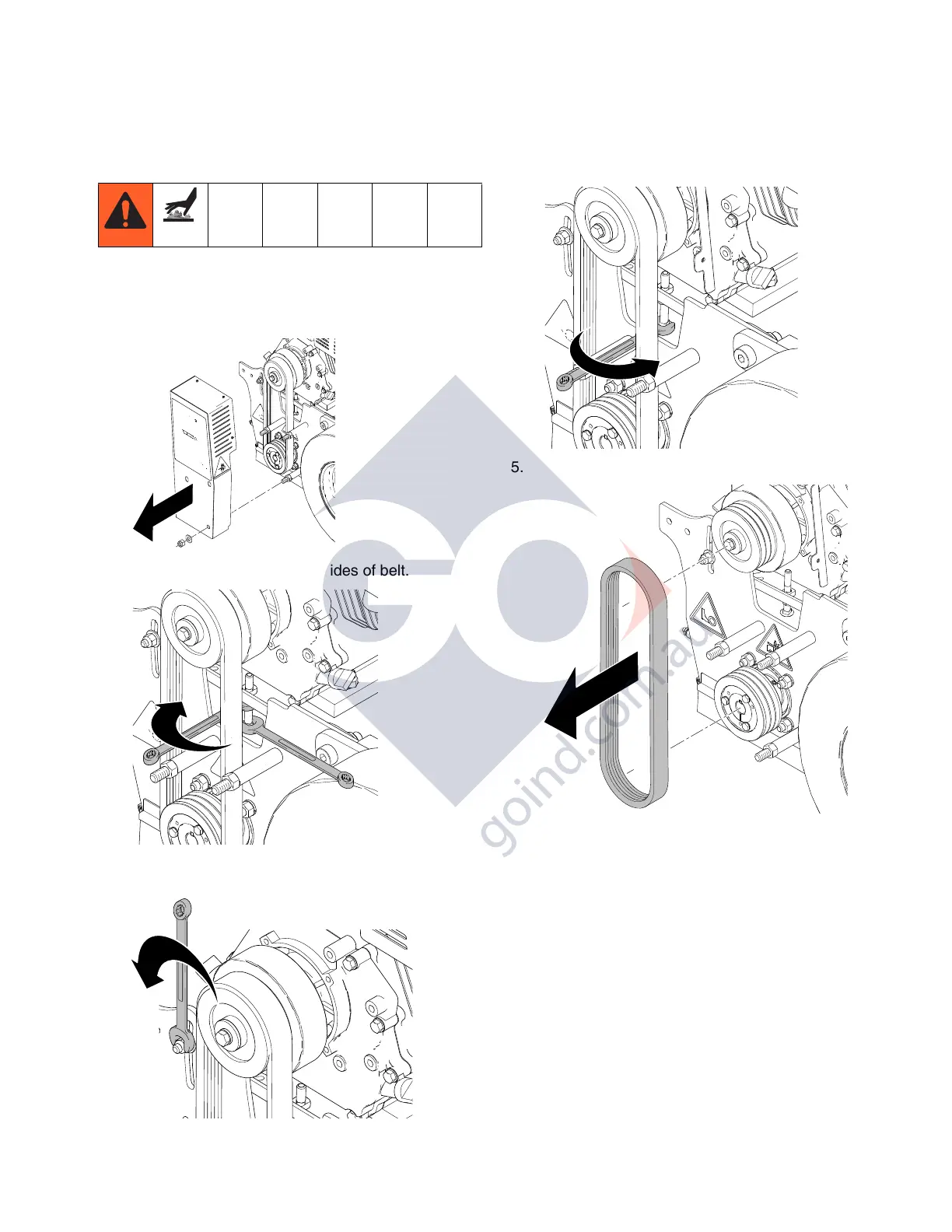

Belt Replacement
Removal
1. Remove three nuts and washers. Remove belt
shroud.
2. Loosen jam nut through two sides of belt.
3. Use two wrenches to loosen motor mount bolts on
each side of scarifier base.
4. Tighten bottom bolt to lower pulley plate.
5. Remove used belt.
ti15064a
ti15085a
ti15066a
ti15069a
ti15076a
