Graco GrindLazer 270 Repair Manual

Cutter Stacking Recommendations
3A0102D 35
Diamond Blades
Groove
Width
Number
of Blades
Number of
Steel 1/8 in.
Spacers
Number of
Aluminum 1/4
in. Spacers
1 in. (2.5 cm) 4 5 36
2 in. (5 cm) 8 9 32
3 in. (7.5 cm) 12 13 28
4 in. (10 cm) 16 17 23
5 in. (12.5 cm) 19 21 21
6 in. (15 cm) 23 24 15
7 in. (17.5 cm) 27 28 11
8 in. (20 cm) 31 32 7
9 in. (23 cm) 35 36 3
10 in. (25 cm) 38 39 2
For best performance, use 1/4 in. spacers on each end of
shaft to center diamond blades on drum.
1/4 in. Spacers
1/8 in. Spacers

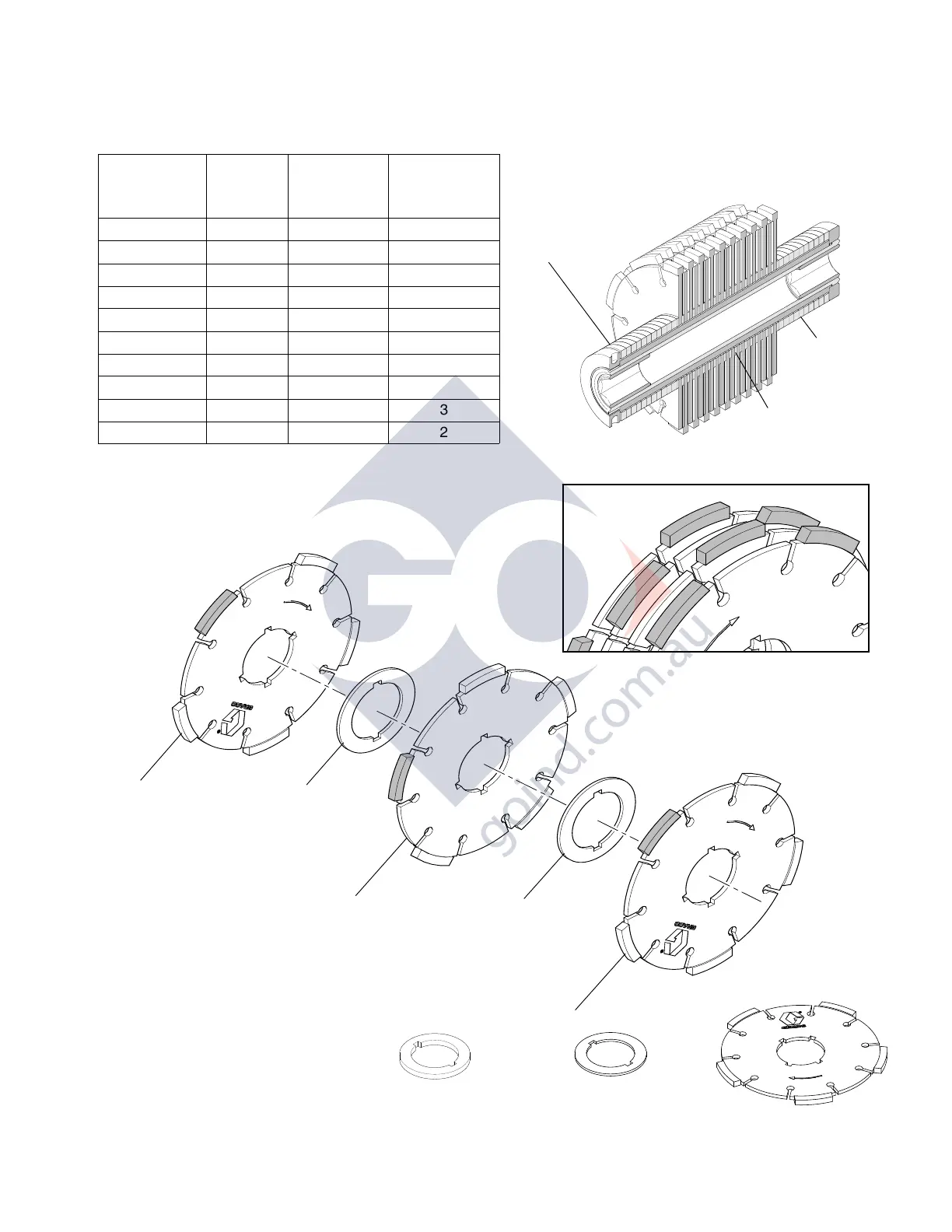

ti15135a
1/4 in. Spacers
(SE) Spacer-1/8 in.
(D) Diamond Blade
1 (D)
ti15055a
ti15054a
1 (SE)
1 (D)
1 (D)
1 (SE)
(SQ) Spacer-1/4 in.
NOTE: Be sure to rotate the blade 180 degrees
every time an additional blade is added to a stack.

Graco GrindLazer 270 Specifications
