Cutter Replacement
3A0102D 7
Cutter Replacement

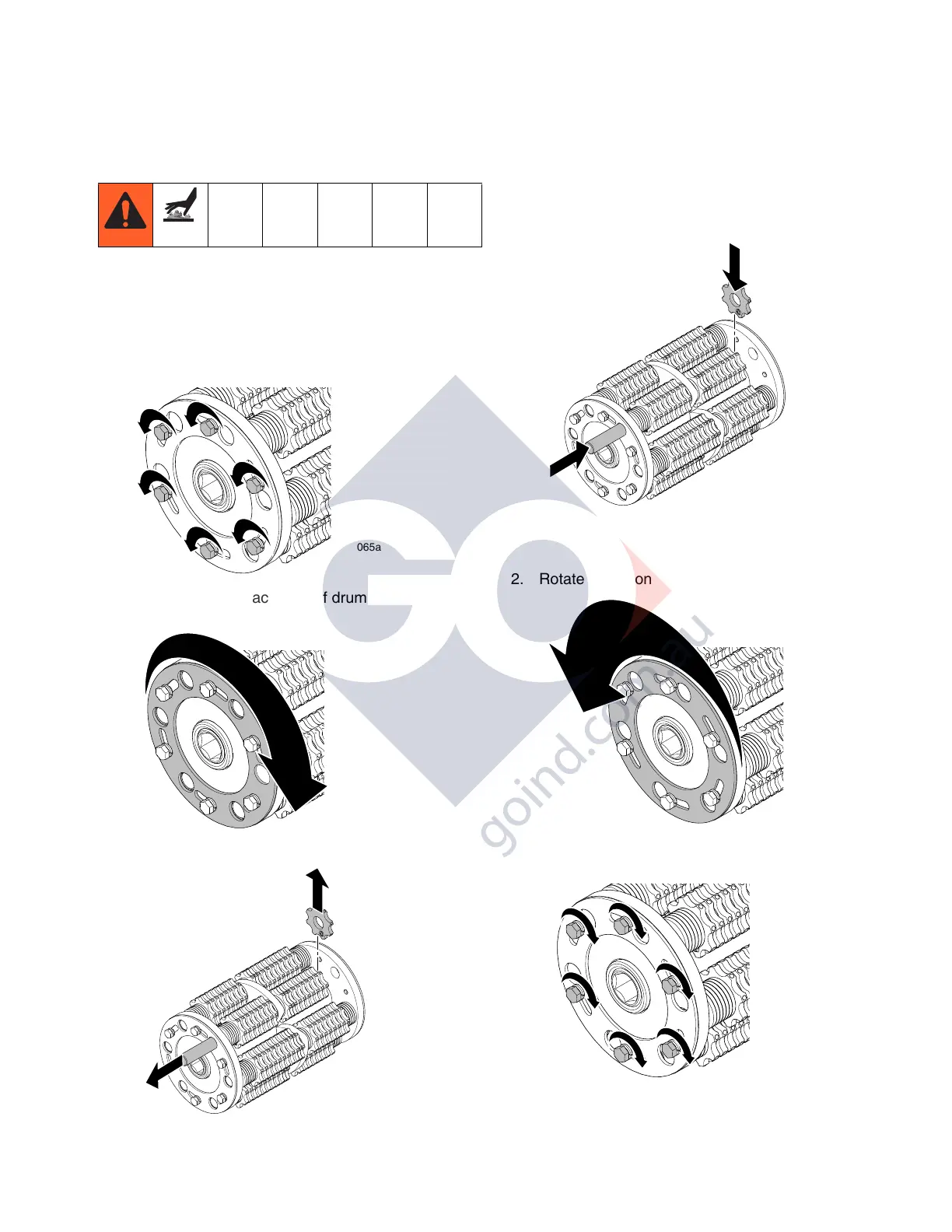

Removal (Carbide Flail/Carbide Miller)
1. Remove drum (see Drum Replacement, page 6).
2. Loosen six bolts on each side of drum (do not
remove bolts).
3. Rotate plates on each side of drum so rods are
exposed.
4. Push rod out and remove cutters.
Installation (Carbide Flail/Carbide Miller)
1. Replace cutters and washers (see Cutter Stacking
Recommendations, pages 17 - 35).
NOTE: Cutters must be centered on drum for best
performance.
2. Rotate plates on each side of drum to cover rods.
3. Tighten six bolts on each side of drum to 125-175
in-lb (14-20 N•m).
4. Install drum (see Drum Replacement, page 6).
