Graco GX21 Cordless User Manual

Know Your Sprayer
8 3A8429A
Know Your Sprayer

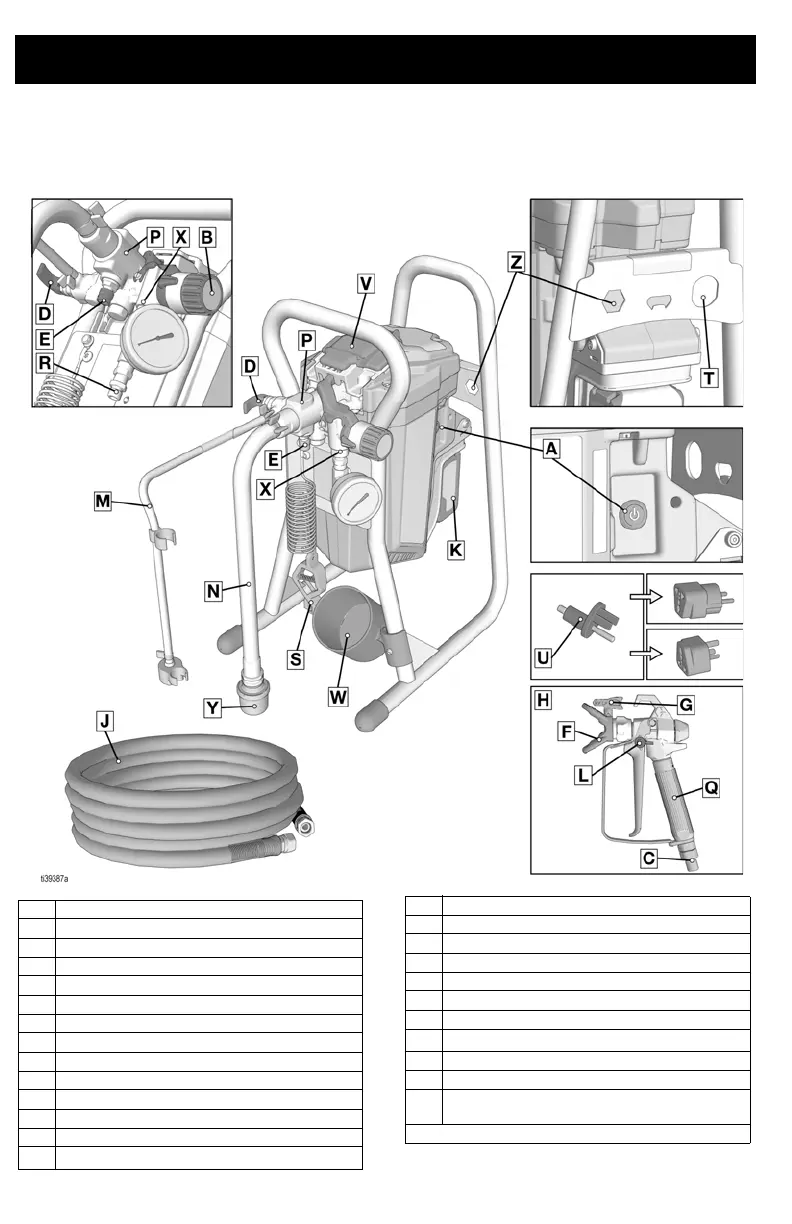

Component Identification
A ON/OFF Switch
B Pressure Control Knob
C Gun Fluid Inlet Fitting
D Prime Valve
E Push Prime Button
F Tip Guard
G Reversible Spray Tip
H Airless Spray Gun
J Airless Hose
KBattery
L Gun Trigger Lock
M Drain Tube (with Diffuser)
N Fluid Intake (Suction) Tube
P
ProXChange
™
Pump (behind easy access door)
Q Gun Fluid Filter (inside handle)
R Fluid Outlet Fitting (airless hose connection)
S Grounding Wire with Clamp
T Inlet Valve Removal Tool
U Ground Adapter
V Easy Access Door with Cover
W Suction/Drain Tube Cup
X
InstaClean
™
Fluid Filter (inside fluid outlet)
Y Inlet Strainer
Z Pump Removal Tool
Model/Serial Tag (Not shown, located on bottom
of unit.)
See Quick Reference, page 31 for more information.

Graco GX21 Cordless Specifications

General

Brand	Graco
Model	GX21 Cordless
Category	Paint Sprayer
Language	English
