Graco HFR - Dimensions

Motor Control Module Technical Data
110 313997ZAA

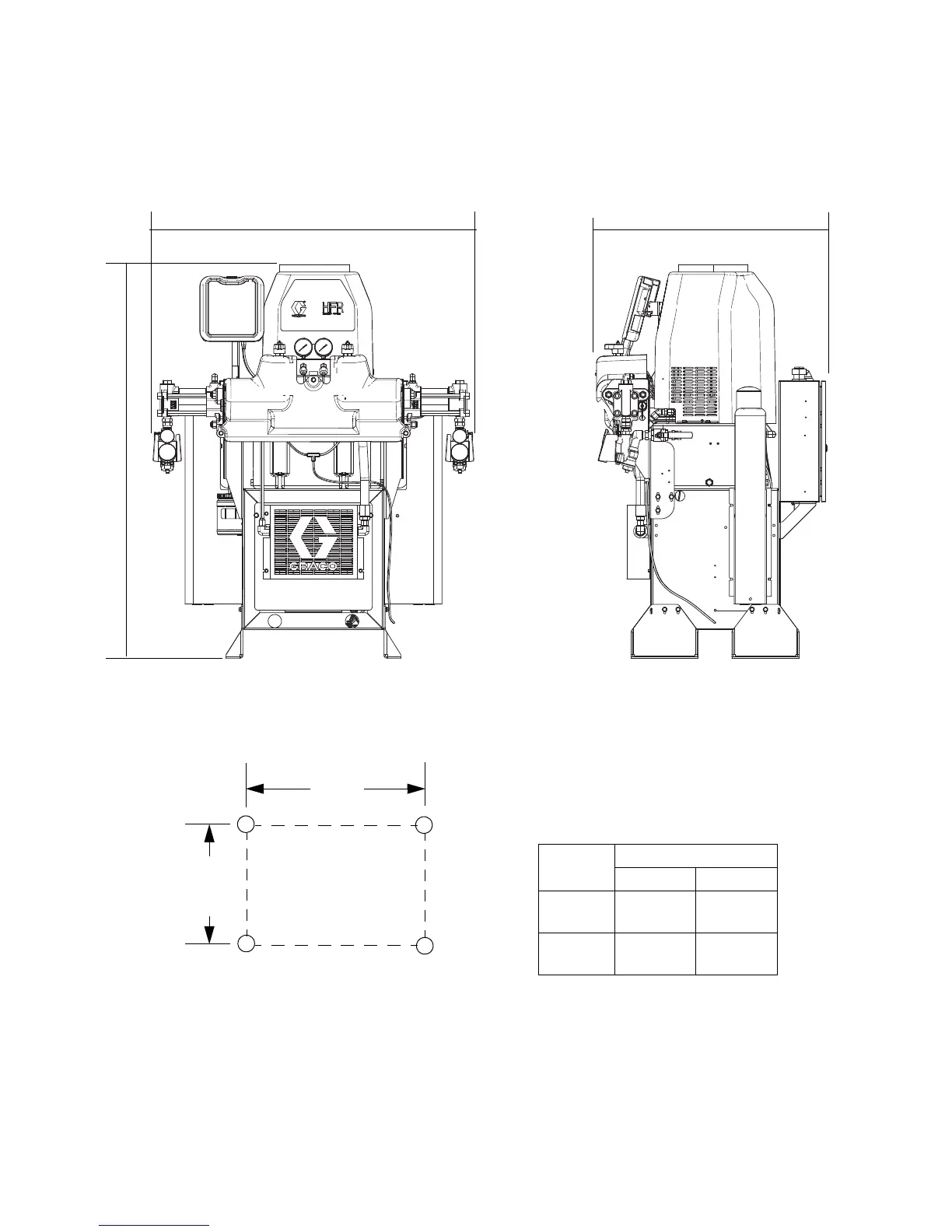

Dimensions
Bolt Mounting Pattern and
Dimensions
Ref
Type of Base
No Pallet Pallet
D
24 in.
(610 mm)
32.4 in.
(823 mm)
E
15 in.
(381 mm)
30.3 in.
(770 mm)
Front
Right
D
E
59.8 in.
(1520 mm)
47.5 in.
(1210 mm)
34.1 in.
(870 mm)
