Troubleshooting
313997ZAA 61
ADM Troubleshooting
ADM Module Status LEDs (CN) Conditions
USB Module Status LEDs (CL) Conditions

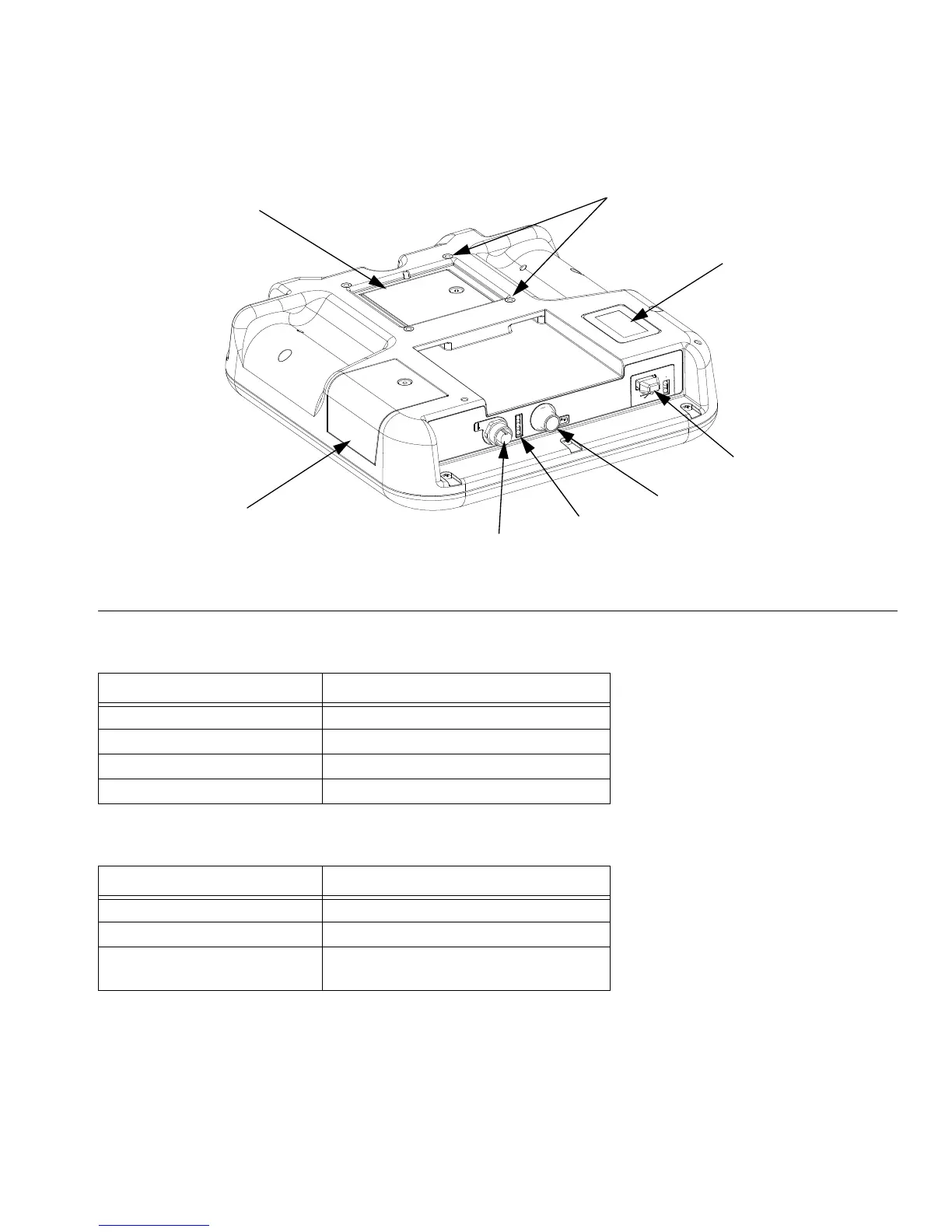

FIG. 18: ADM Component Identification - Rear
CR
CK
CJ
CL
CP
CN
CM
CS
r_24E451_3B9900_1a
Module Status LED Signal Description
Green on System is powered up.
Yellow on Communication in progress.
Red solid ADM hardware failure.
Red flashing Uploading software.
Module Status LED Signal Description
Green flashing System is powered up.
Yellow on Downloading information to USB
Green/Yellow Flashing ADM is busy, USB cannot transfer
information when in this mode
