Graco HFR - ADM Buttons and Interface

Component Identification
30 313997ZAA
Advanced Display Module (ADM)
User Interface
Buttons

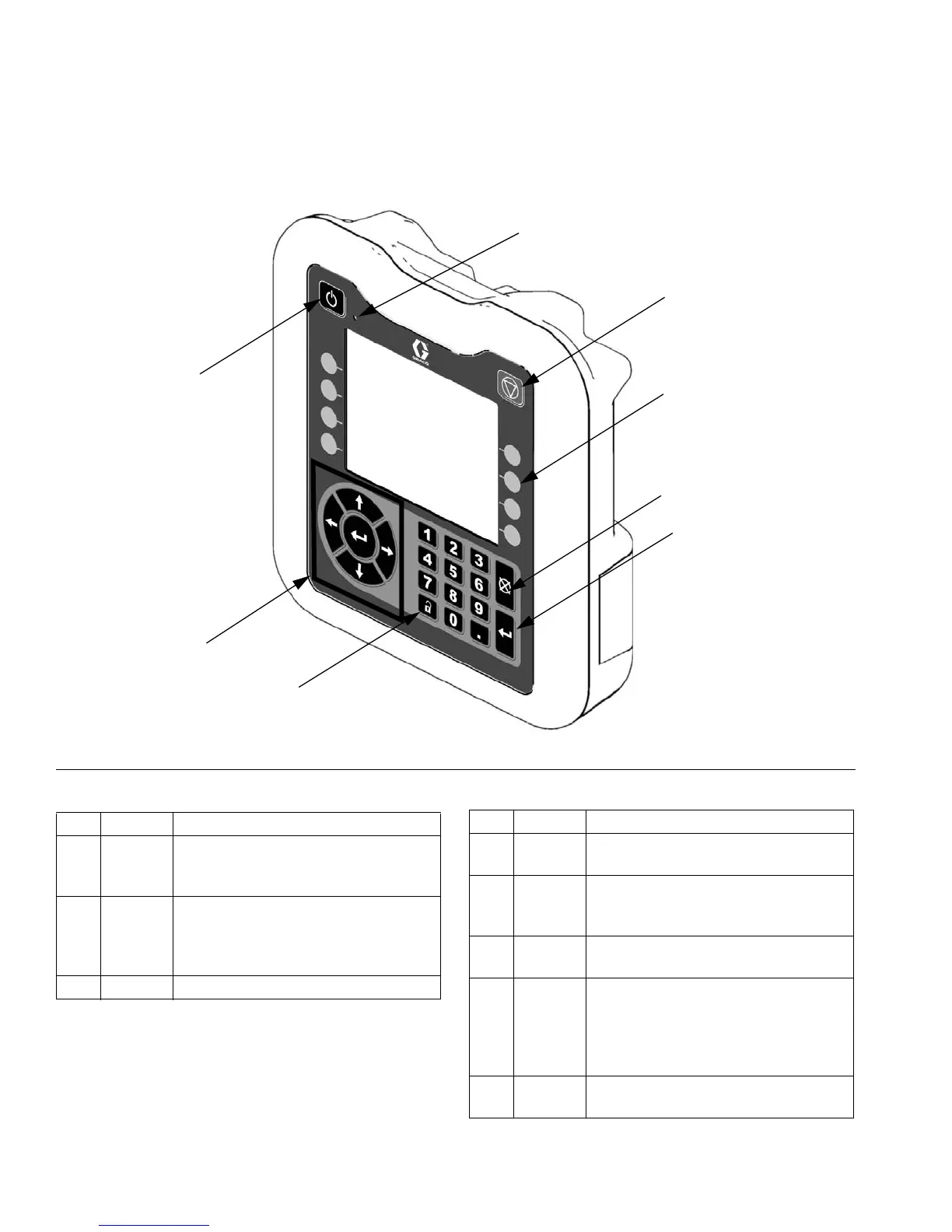

FIG. 5: ADM Component Identification - Front
TI12362a1
CA
CB
CC
CE
CH
CG
CF
CD
Ref. Button Function
CA System
enable/
disable
Enables/disables system. When sys
tem is disabled, temperature control
and dispense operation are disabled.
CB System
Status
Indicator
Light
Displays system status. See System
Status Indicator (CB) Conditions on
page 31 for details.
CC Stop Stops all system processes.
CD Soft
Keys
Defined by application using ADM.
CE Cancel Cancel a selection or number entry
while in the process of entering a
number or making a selection.
CF Enter Acknowledge changing a value or
making a selection.
CG Lock/Set
up
Toggle between run and setup
screens. If setup screens are pass
word protected, button toggles
between run and password entry
screen.
CH Naviga
tion
Navigate within a screen or to a new
screen.
Ref. Button Function
