Typical Installation
313997ZAA 23

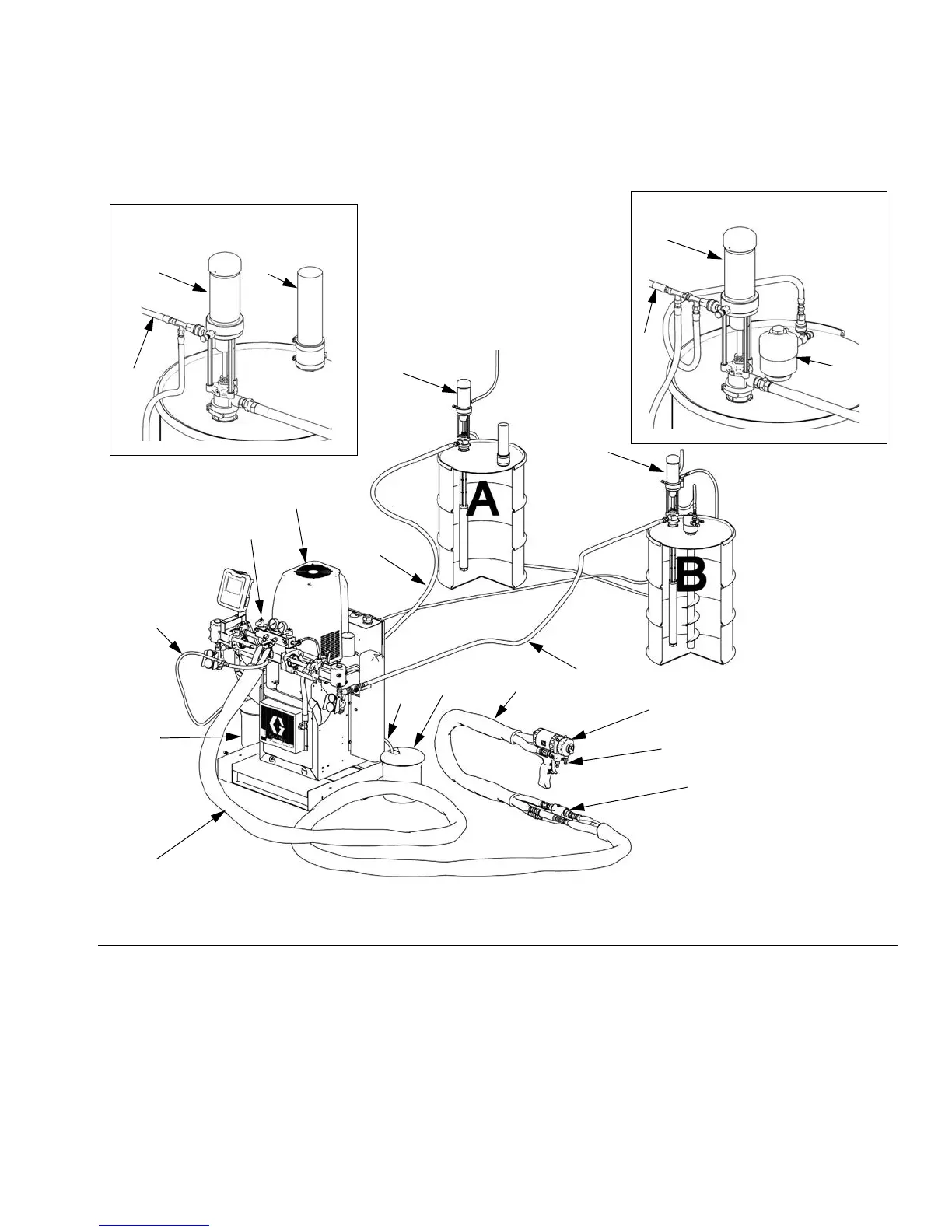

Typical Installation
Key:
A HFR Unit (see FIG. 2, page 25)
BHose
C Fluid Temperature Sensor (FTS); 2x, 1 for each hose
D Whip Hose
E Dispense Gun
F Gun Air Supply Hose
G Feed Pump Air Supply Lines
H Waste Container
J Fluid Supply Lines
K Feed Pumps
L Agitator
M Desiccant Dryer
N Bleed Lines
P Fluid Manifold
FIG. 1
B
C*
D
E
F
K
J
ti7821a3
* Shown exposed for clarity.
Wrap with tape during operation.
J
A
K
P
N
H
L
G
K
B (Blue) Side Supply Detail
G
K
M
A (Red) Side Supply Detail
ti7821a2
ti14720a
P
H
