Graco HFR - Fluid Control Module

Troubleshooting
64 313997ZAA
Fluid Control Module
Diagnostic Information
Module Status LED Signal Diagnosis
Green on System is powered up
Yellow Internal communication in progress
Red solid FCM hardware failure. Replace FCM.
Red flashing fast Uploading software
Red flashing slow Token error. Remove token and
upload software token again.

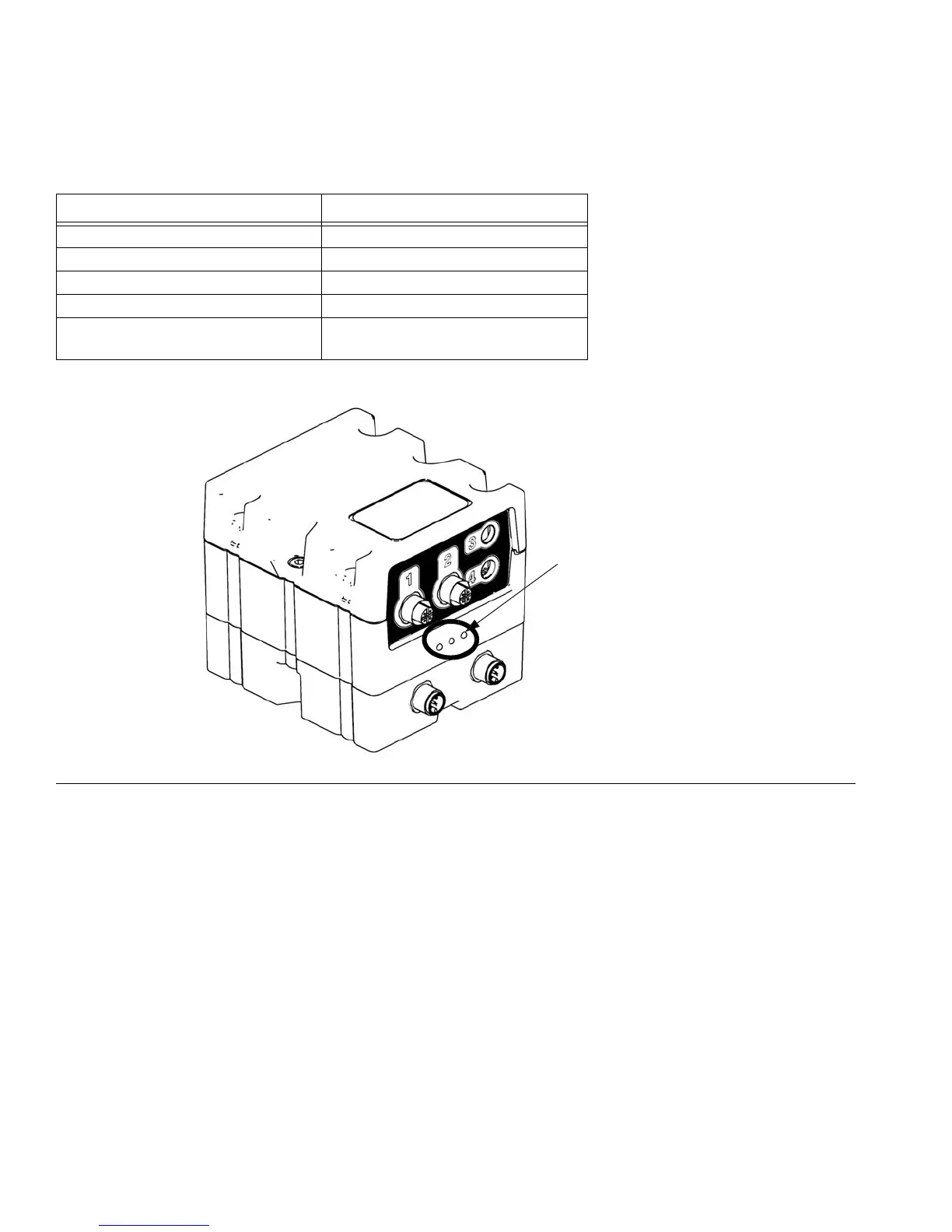

FIG. 20:
ti12337a1
Module Status LEDs
