Graco HFR - Temperature Control Module (Heated HFR Only)

Component Identification
34 313997ZAA
Temperature Control Module (Heated HFR Only)
Key:
1 Overtemperature Switch Connection (primary heaters
only)
2 RTD Temperature Sensor Connection
3 Output Power Connection
4 DC Output Connection
5 Input Power Connection
6 CAN Connections
7 Rotary Selector Switch, Token Access
1 Overtemperature Switch Connection
2 RTD Temperature Sensor Connection
3 Output Power Connection
4 DC Output Connection
5 Input Power Connection
6 CAN Connections
7Base

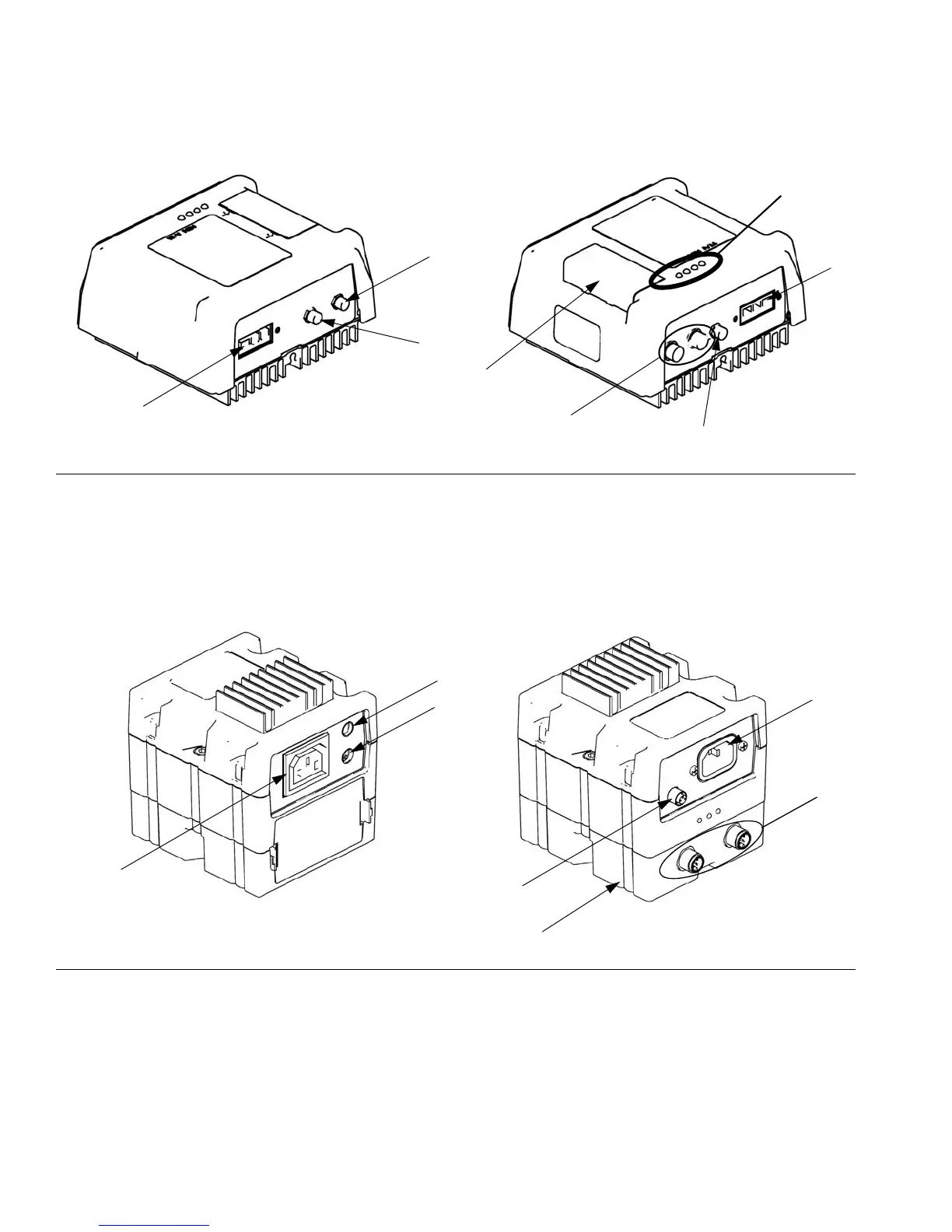

FIG. 9: High Power Temperature Control Module Sensor Connections
1
2
3
5
4
6
LED
Signals
7
ti12352a1
ti12353a1
FIG. 10: Low Power Module Cable Connections
1
2
3
4
5
6
7
ti12356a1
ti12357a1
