Graco HFR - Page 35

Component Identification
313997ZAA 35
Heat Control Zone Selection
(Heated models only)
The HFR unit supports 4 independent temperature con
trol zones. The high power temperature control modules
are located inside the frame below the hydraulic power
pack.

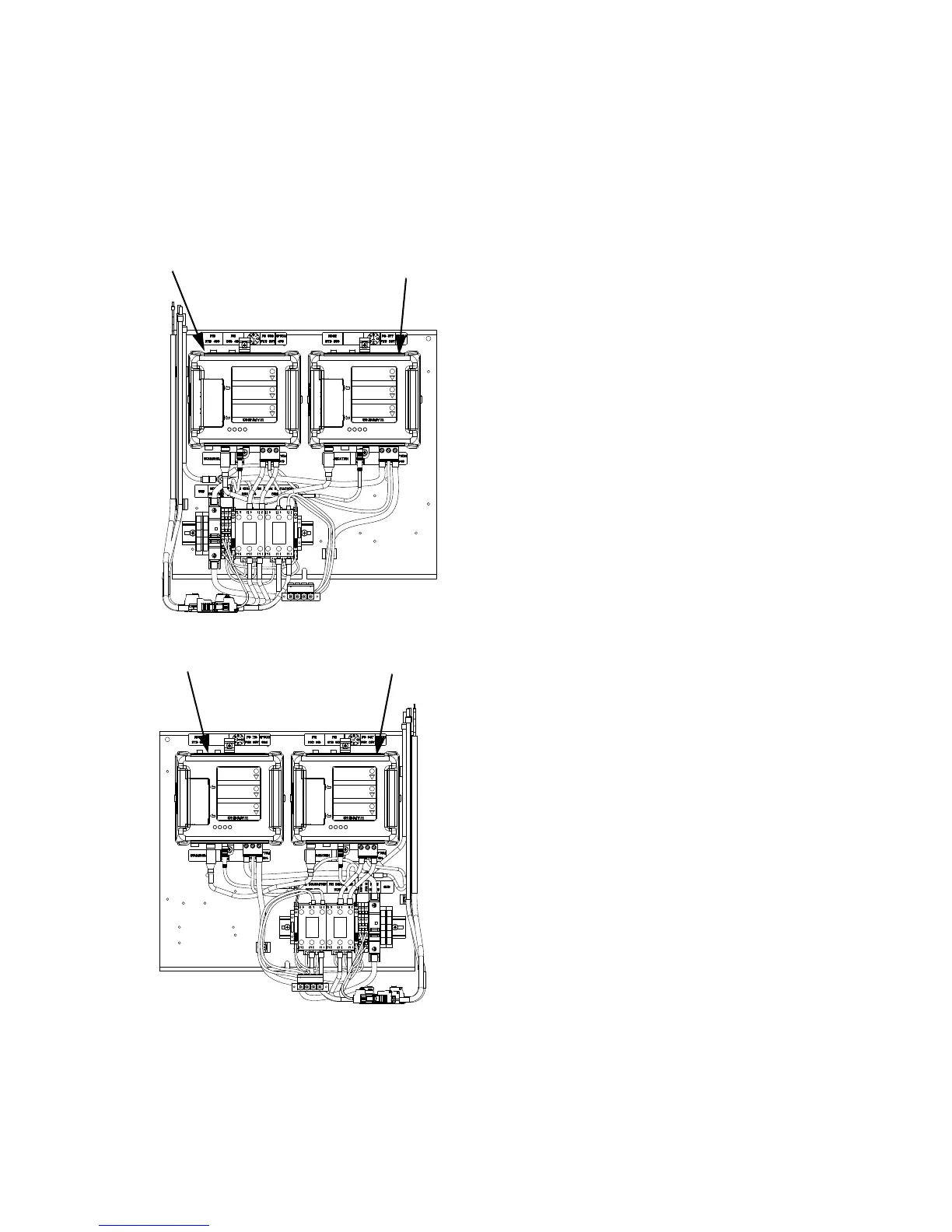

Hose Heater B (Blue) Primary Heater B (Blue)
Hose Heater A (Red)
Primary Heater A (Red)
Right Side from
Rear View
Left Side from
Rear View
24C332_313998_3f
24C332_313998_6f
