Component Identification
36 313997ZAA
Adjust Rotary Switch
The rotary switch setting indicates which zone the tem
perature control module will control in the system. The
high power module uses an 8-position rotary switch.
The low power module uses a16-position rotary switch.
Set the rotary switch (S) to the specific selection accord
ing to the settings listed in the following tables.

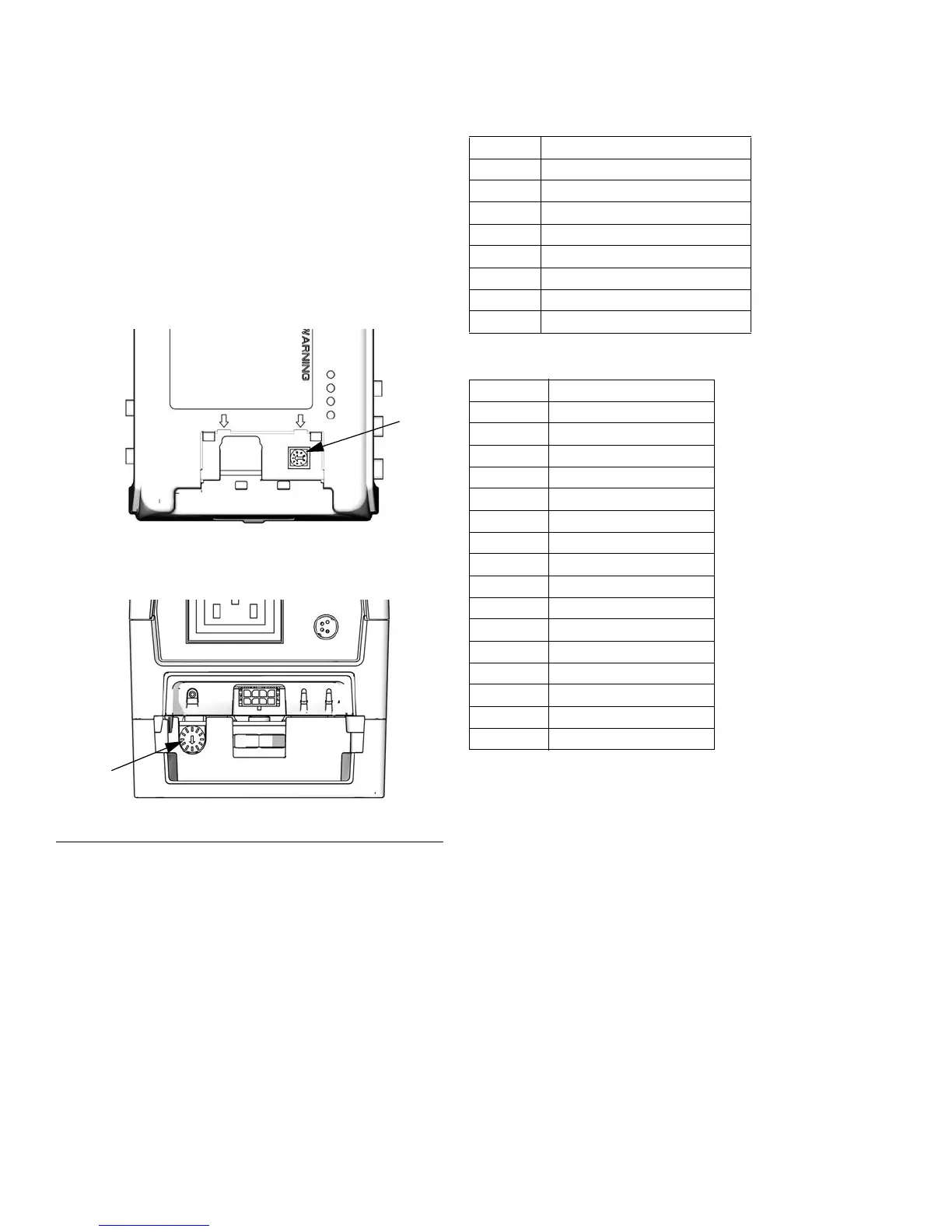

High Power Module Rotary Switch Settings
Low Power Module Rotary Switch Settings
F
IG. 11
High Power Module Rotary Switch Location
Low Power Module Rotary Switch Location
S
S
ti12360a
ti12361a
Setting Zone
0Not Used
1 B (Blue) Primary Heat
2 B (Blue) Hose Heat
3 A (Red) Primary Heat
4 A (Red) Hose Heat
5Not Used
6Not Used
7Not Used
Setting Zone
0Not Used
1Not Used
2Not Used
3Not Used
4Not Used
5 B (Blue) Tank Heater
6 A (Red) Tank Heater
7 B (Blue) Chiller
8 A (Red) Chiller
9Not Used
ANot Used
BNot Used
CNot Used
DNot Used
ENot Used
FNot Used
