Component Identification
32 313997ZAA
Main Display Components

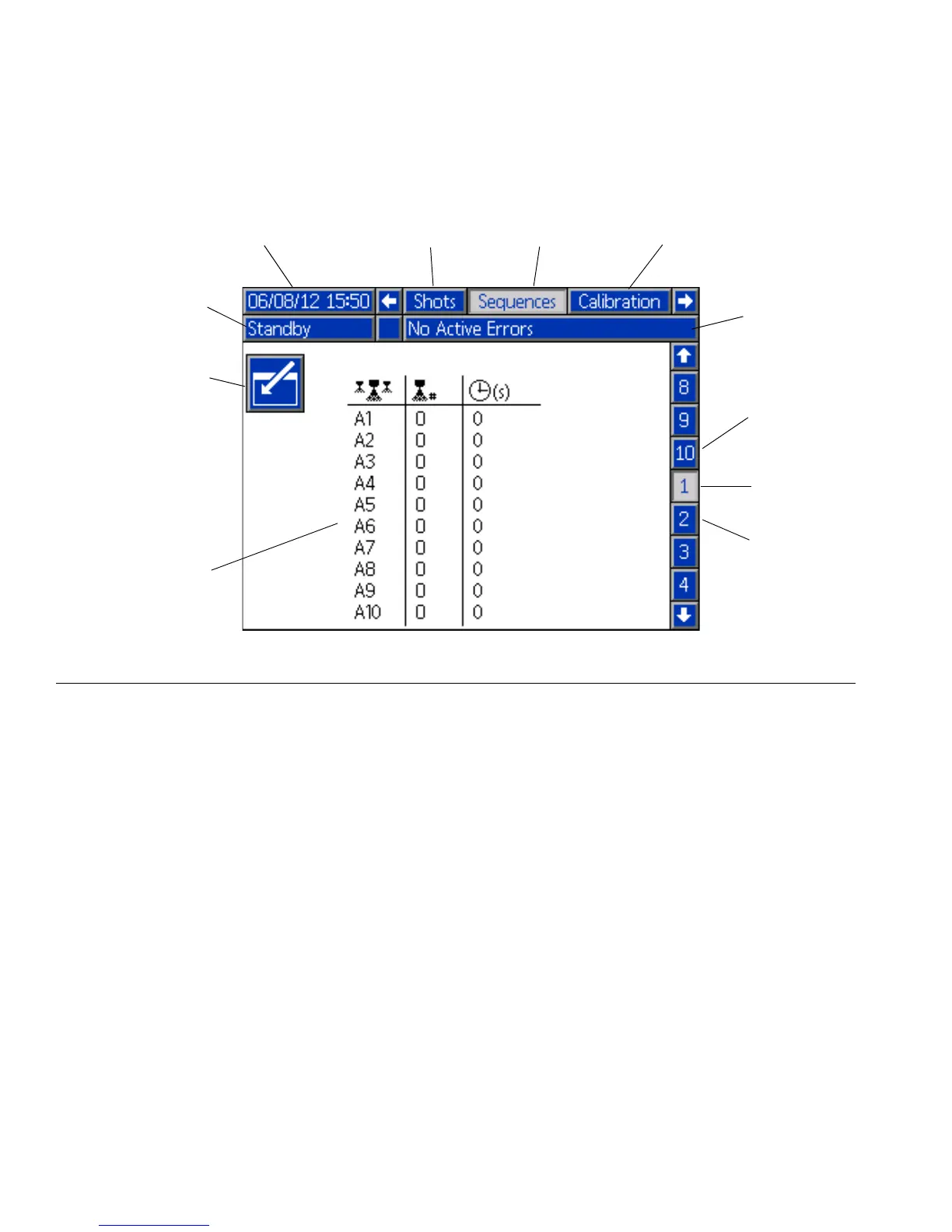

The following figure calls out the navigational, status, and general informational components of each screen. For
details regarding the user interface display see Advanced Display Module (ADM) Operation, page 46.
F
IG. 7: Main Display Components
Current date and time Current screen
Enter/Exit screen
Previous screen Next screen
Function display
Current
screen no.
Next
screen no.
Previous
screen no.
Mode
Faults, Status
