Appendix C - ADM Run Screens Overview
313997ZAA 87

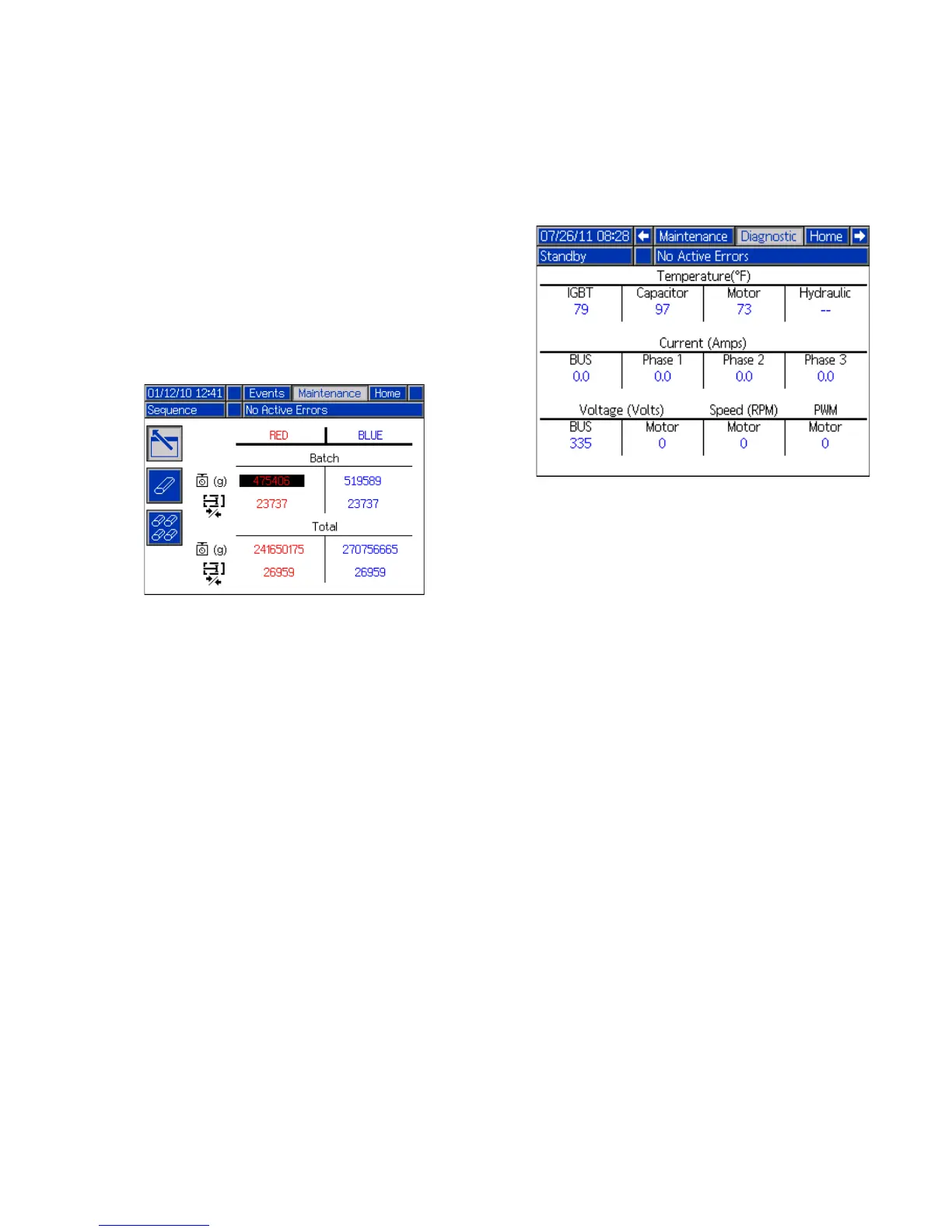

Maintenance Screen 1
This screen displays historical information for each
pump in the system. The Batch counters are resettable
and count both material usage and pump cycles. The
Total counters are not resettable by the user. They also
count both material usage and pump cycles. For mate
rial usage counters, units are displayed next to the vol
ume/weight indicator icons.
To erase a batch counter, press the Enter Screen button
and navigate to the field to be erased. Press the Erase
Single button to erase that data point. Alternatively, the
Erase All button may be pressed to erase all of the
batch data points simultaneously.
NOTE: In a circulation system, the pumpline must be
stopped to erase counters.
Optional Screens
The optional Diagnostic screen can be enabled in the
Advanced Screen 4 screen, see page 81.
Diagnostic
The Diagnostic screen shows status information for var
ious system components.
