Positioning the Gun Arm Assembly
Setup for Spraying Arcs
1. Disengage the trigger cable (1) and engage the gun
trigger safety latch. See page 22.
2. Loosen the arm clamp (6) and rotate the arm (A)
back
near the rear tire and then position the arm so
the spray tip guard aligns with the back axle of the
unit.
Retighten the clamp.
3. Extend the carriage bar (4) or second gun bar (404)
so you can easily watch the line you are painting and
also to avoid running over the paint line. See page
18.
4. Adjust
the vertical and horizontal position of the gun.
5. Spray the arc from the outside.

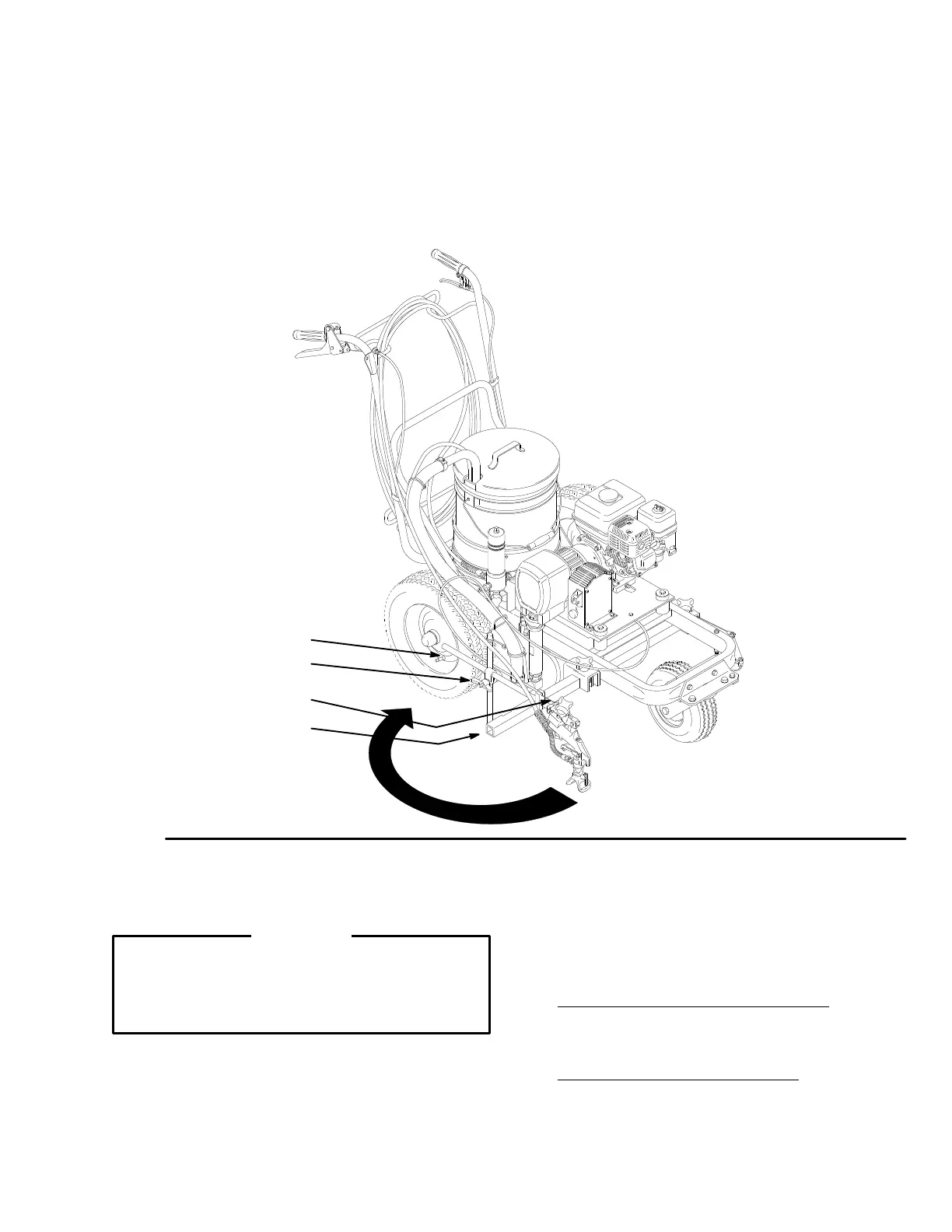

02155
1
4
A
6
Fig. 14
Adjust Simultaneous Gun T riggering
WARNING
To reduce the risk of a fluid injection injury , always dis -
engage the trigger cable to the gun(s) and engage the
guns’ trigger safety latch before moving or adjusting
the guns or gun arms.
1. Align the front of the guns by adjusting the gun arms.
See page 18.
2. Position the dual gun selector to trigger both guns.
See
page 21.
3. Start the sprayer , using water , or spray on card-
board. See page 14. T rigger the guns to see if the
lines
begin at the same time and place.
If one gun triggers before the other gun , reduce the
cable tension of the gun that triggers first. See Ad-
just the trigger cable tension
on page 22 .
If one line starts in front of the other , adjust the posi -
tion
of the guns. See page 18.
T rigger the guns to recheck the adjustments.
