Graco LINE LAZER A Series User Manual

0055A
7
6
4
49
44
45
132
47
48
34
99
REF 1
98
97
96
95
93
103
100
99
101
94
33
33
35
32
113,158
136
SECOND GUN AND HOSE KIT
0056A
113,158
136
98
96
95
49
97
93
48
132
47
44
101
100
99
33
103
94
99
43
Ref 402
405
45
404
403
402
401
6
7
35
33
32
123
123



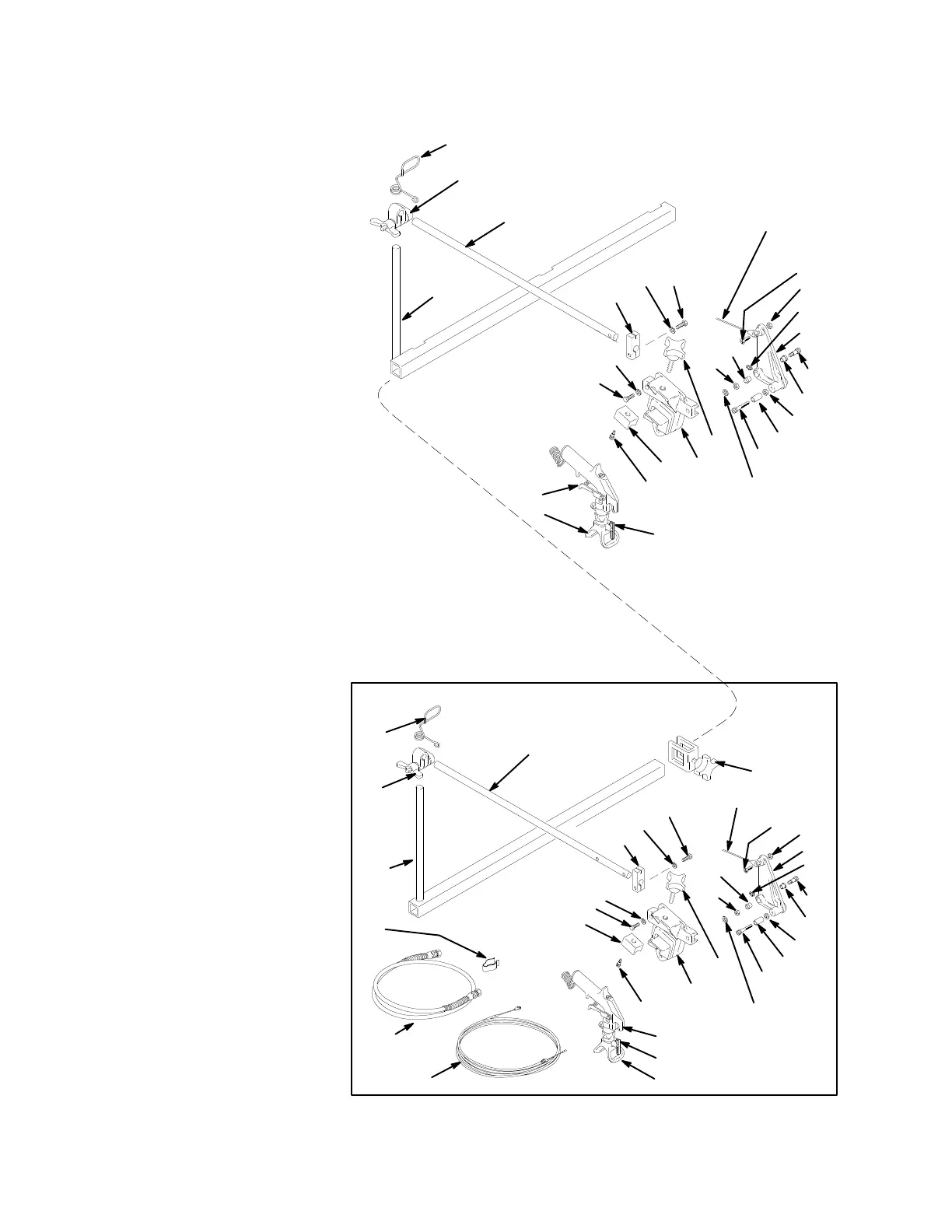

Parts – Gun Mounting
Ref.
No. Part No. Description Qty.
4 224–052 BRACKET
, gun support 1
6 111–817 CLAMP
, arm support 1
7 188–135 GUIDE, cable 1
32 100–846
FITTING, lubrication 1
33 111–016
BEARING, flanged 2
34 111–230 SCREW
, mach, flhd,
1/4–20 x 1” 1
35 100–015 NUT
, hex, 1/4–20 1
44 100–016 LOCKWASHER, 1/4” 2
45 181–734
ARM, support 1
47 100–101 CAPSCREW
, hex hd,
3/8–16 x 1” 1 or 2
48 186–699 BLOCK, mounting cable 1
49 100–021 CAPSCREW
, hex hd,
1/4–20 x 1”
2
93 181–818 KNOB 1
94 186–747
LEVER, actuator 1
95 188–452 HOLDER, gun 1
96 108–483 SCREW
, shoulder , sch,
1/4 x 3/8 ” 1
97 181–795 JAW
, clamp 1
98 235–459 FLEX GUN
See manual 308–235
for parts 1
99 101–345 NUT
, hex, jam, 1/4–20 2
100 108–535 BEARING, sleeve 1
101 107–445 CAPSCREW, sch,
1/4–20 x 1–
1
/
2
”1
103 111–045 SCREW
, shoulder , sch,
5/16 x 1” 1
113 LLT–319
Line Lazer T ip, Sz 319 1
123 110–755 WASHER 1
132 100–133 LOCKWASHER, 3/8” 1
136 220–422 RAC IV DripLess
TIP GUARD 1
158 221–517 SwitchT
ip, Size 517 1
OPTIONAL SECOND GUN AND HOSE KIT
Model 224–097
Included with Sprayer Model 231–141 only
This kit includes the parts shown in the
box to the right, which includes items
401–405 and the items listed above
except 4.
Ref.
No. Part No. Description Qty.
401 178–342 CLIP
, spring 1
402 111–155
CABLE, remote trigger 1
403 224–068 HOSE, 1/4” ID,
cpld 1/4–18 npsm(f)
6.5 ft (1.2 m) grounded,
spring guards 1
404 224–096 BRACKET
, support,
extension 1
405 224–071 CLAMP
, extension 2
