Parts

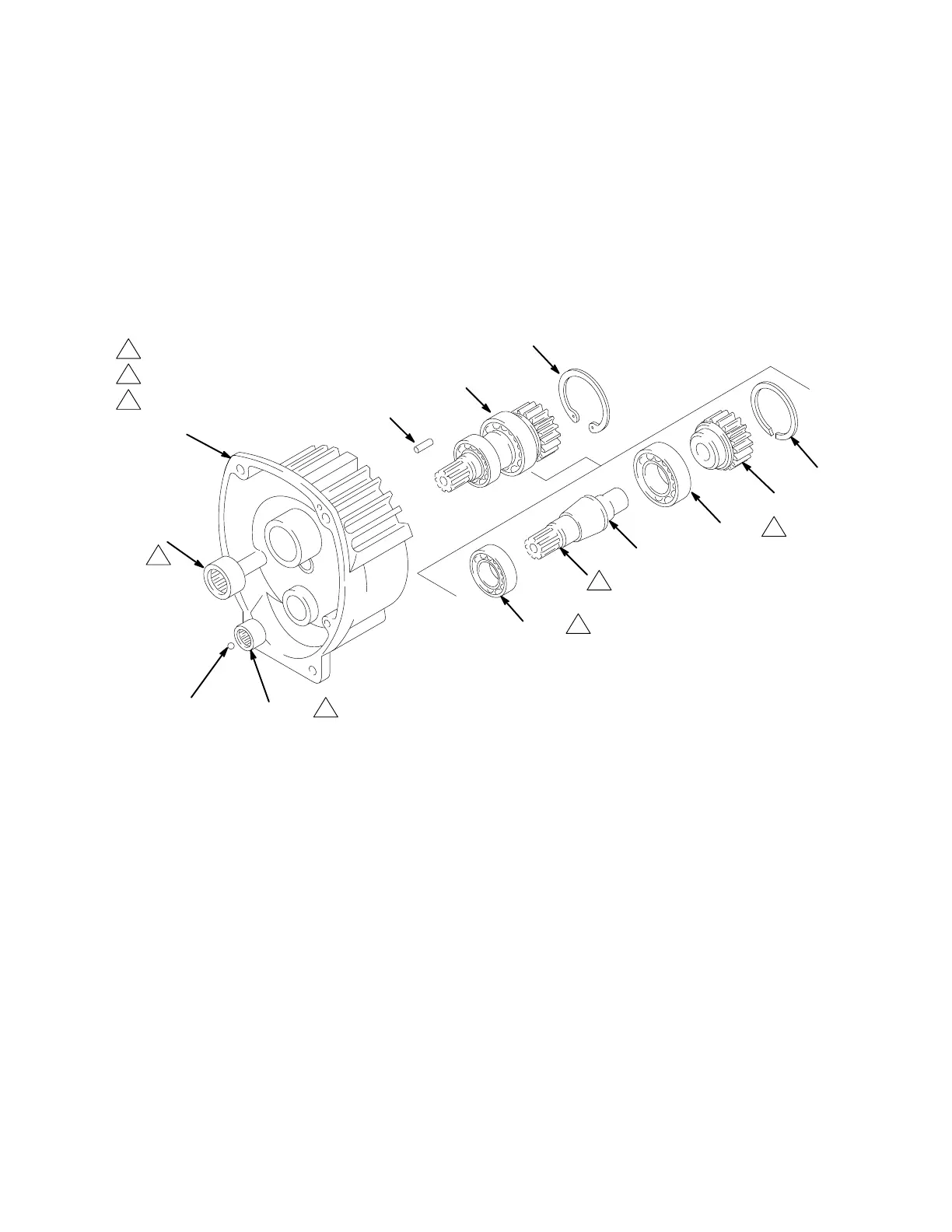

– Pinion Assembly
Ref
No. 138
Pinion Housing
Includes items 138a to 138f
Ref.
No. Part No. Description Qty.
138a 221–032 PINION SHAFT ASSEMBLY
Includes items 138b to 138f
1
138b 183–395 .SHAFT
, pinion
1
138c 108–797
.BEARING, needle
1
138d 108–798 .BEARING, ball 1
138e 108–796
.RING, retaining, external
1
138f 183–396
.HUB, armature
1
Ref.
No. Part No. Description Qty.
NOTE:
Items 138h to 138p are not included in a kit. Or
-
der
them separately as needed.
138h 108–692 BEARING,
ball, roller
1
138j 107–088
BEARING, ball, needle
1
138k 100–069 BALL, sst 1
138m 108–799
RING, retaining, internal
1
138n 105–489
PIN, dowel
2
138p 183–394 HOUSING, pinion 1
138h
138m
138a
138n
138e
138f
138d
138b
138c
138j138k
138p
0042
1
3
2
Lubricate
exterior
Lubricate inner and outer diameters
Lubricate teeth
1
1
2
2
3
Manual
Change Summary
This sprayer now complies with the European Commu-
nity Directives that are required in order to use the CE
mark
which is shown on the cover of this manual. T
o
com
-
ply with the directive, text has been added to the Warn-
ings section regarding wearing ear– noise protection
when
working near the sprayer when the engine is
oper
-
ating. In addition, the following information was added to
the T
echnical Data section.
Noise Level
Sound Power
105 dbA
Sound Pressure
97 dbA @ 1 meter under
maximum operating
conditions per ISO–3744
