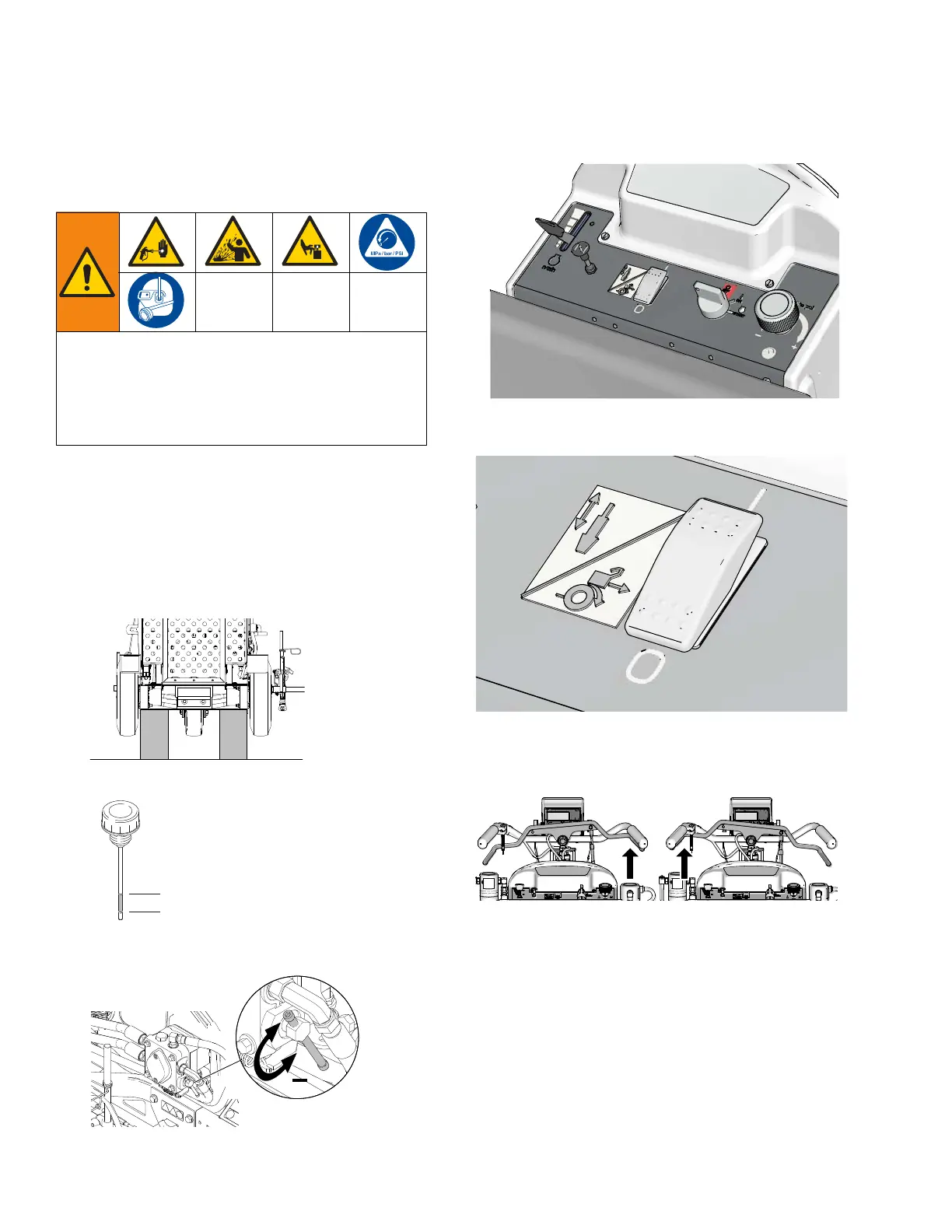

Hydraulic System Purging
3A3394E Repair - Parts 13
Hydraulic System
Purging
Follow this procedure after replacing any hydraulic
component other than the hydraulic gun manifold which
is self-purging.
1. Perform Pressure Relief Procedure, page 10.
2. Set LineStriper on blocks so wheels are off ground.
3. Fill oil reservoir to “Full” range.
4. Make sure drive wheel release is closed (+).
5. Start engine and run at low speed.
6. Turn on the Main Power Switch to engage clutch.
7. Slowly pull forward/reverse control lever in forward
and reverse directions 10 times.
NOTE: Both rear wheels should turn in the correct
direction. If one wheel is not turning, carefully
restrain the spinning wheel to purge out the wheel
that is not turning.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop dispensing and before
cleaning, checking, or servicing the equipment.
ti23889a
ti23891a
