Oil Reservoir Pump Replacement
16 3A3394E Repair - Parts
Oil Reservoir Pump
Replacement

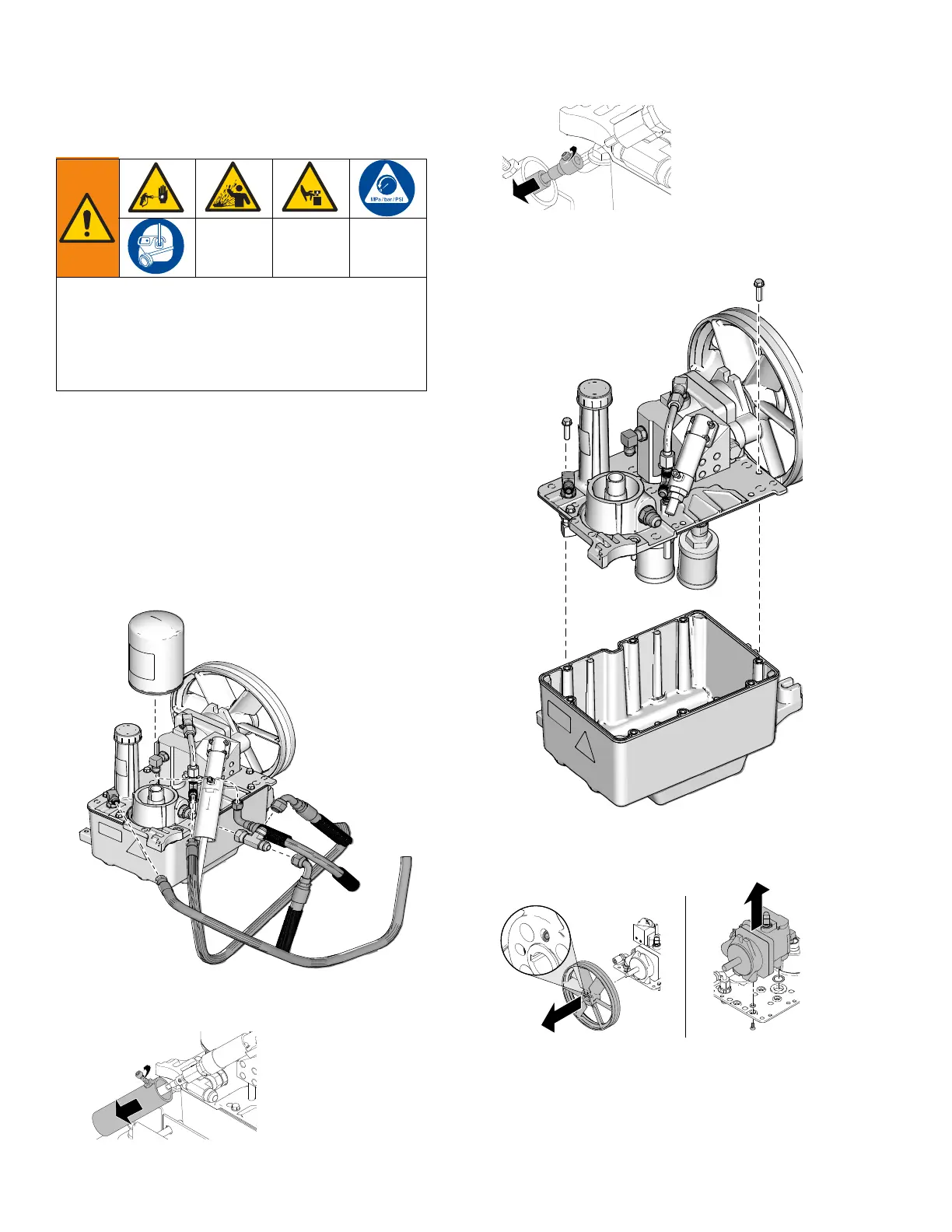

Removal
1. Perform Pressure Relief Procedure, page 10.
2. Remove belt cover, see Oil Reservoir Belt
Replacement, page 12.
3. Remove oil filter and disconnect five hydraulic hoses
from oil reservoir.
4. Loosen nut and slide cable sleeve down to gain
access to the two cable set screws.
5. Loosen two set screws and cable.
6. Remove eight screws and oil reservoir cover with
pump.
7. Remove pulley from pump. Remove four screws and
pump from reservoir cover.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop dispensing and before
cleaning, checking, or servicing the equipment.
