Rear Wheel and Wheel Motors
3A3394E Repair - Parts 43

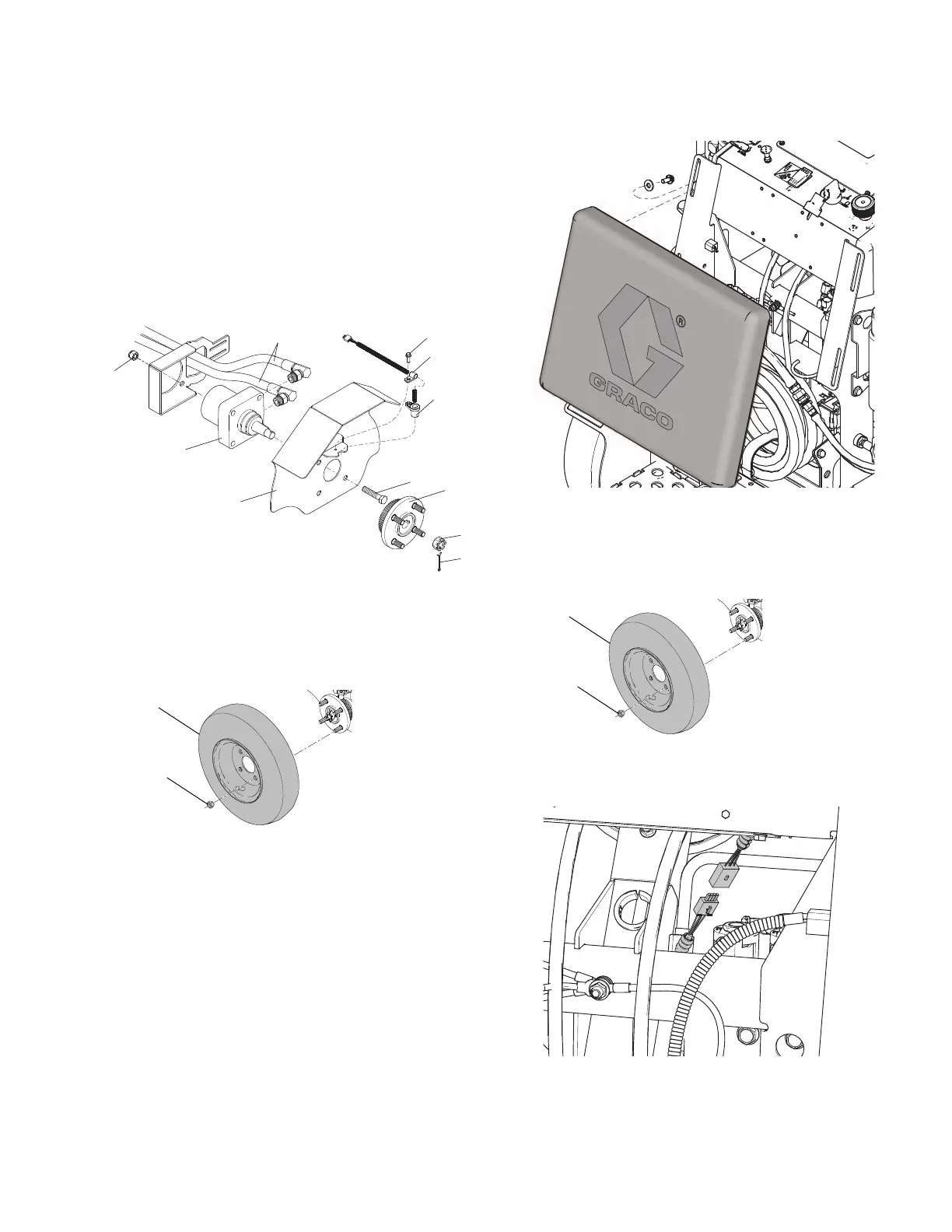

Wheel Motor Installation
1. Connect two hydraulic hoses (112) to wheel motor
(21a) and insert wheel motor (21a) into frame (1).
2. Install wheel motor (21a) and fender (19) with four
bolts (78) and lock nuts (79).
3. Install distance sensor (4) and clamp (5) with screw
(6) on to fender (19).
4. Install wheel hub (22b), castle nut (21b), and pin
(56).
5. Install wheel (16) and four lug nuts (22). Alternately
tighten lug nuts opposite each other.
6. Purge hydraulic system. See Hydraulic System
Purging, page 13.
Wheel Sensor Replacement
Removal
1. Loosen four screws and remove pad.
2. Place jack under frame on the side opposite of the
brake and raise jack.
3. Remove four lug nuts (22) and wheel (16).
4. Disconnect wheel sensor connector from wire har-
ness.
5. Use wrench to remove screw (6), clamp (5), and
wheel sensor (4).
ti23945a
79
21b
To Next Page
