Parking Brake Service
3A3394E Repair - Parts 41
Parking Brake Service
Removal
1. Remove tire, wheel hub, and fender. See, Wheel
Motor Removal, page 42.

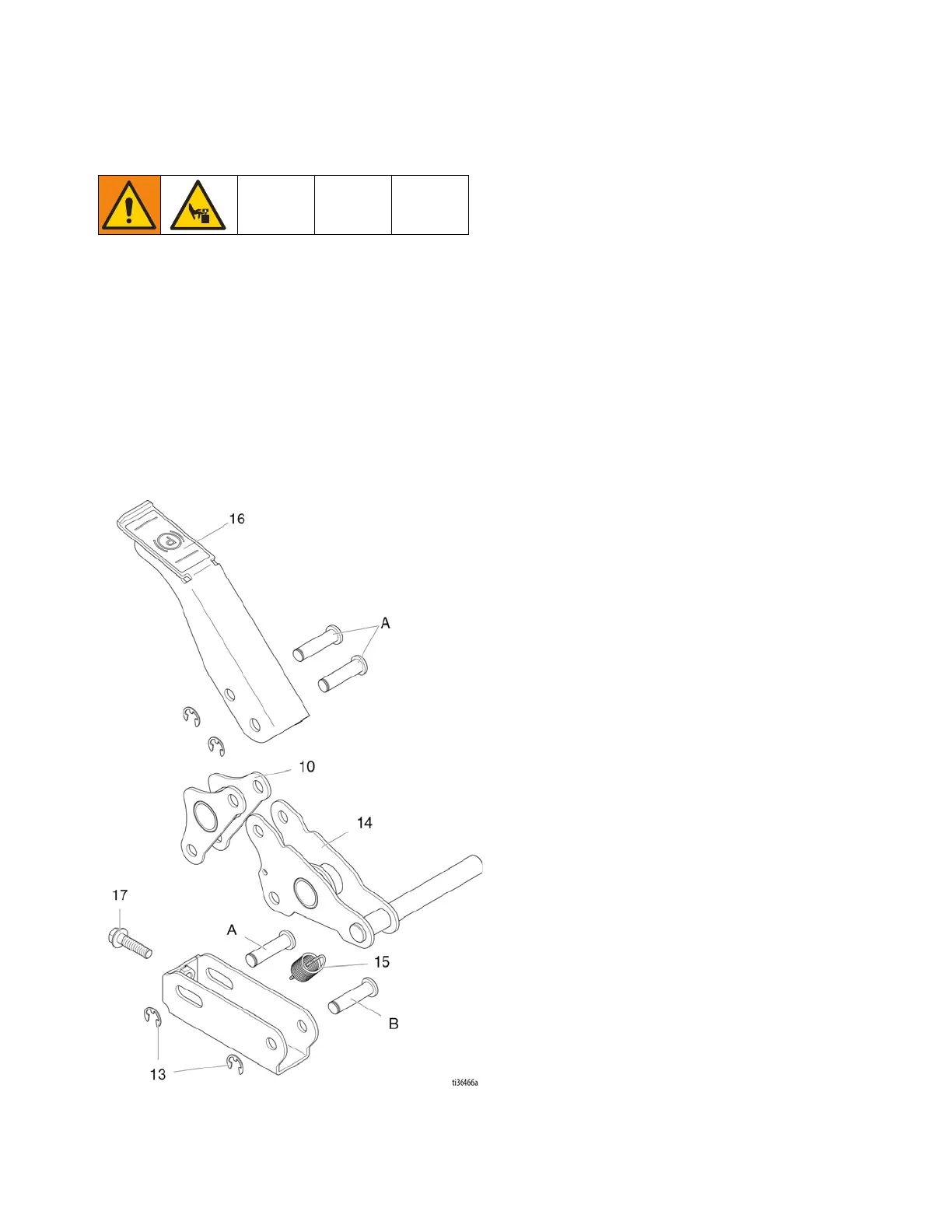

2. Remove clips (13) from three pins (A). Remove pins
and levers.
3. Use screwdriver to remove spring (15). Remove clip
(13) and pin (B).
4. Replace damaged or worn parts.
Installation
1. Install lever (14) with pin (B) and clip (13).
2. Use screwdriver to install spring (15).
3. Install levers (10, 16) with three pins (A) and clips
(13).
4. Install fender, wheel hub, and tire. See, Wheel
Motor Removal, page 42.
5. Adjust screw (17) to hold tire when brake lever (16)
is depressed.
