Graco LineLazer V 250SPS Repair Parts

Rear Wheel and Wheel Motors
44 3A3394E Repair - Parts

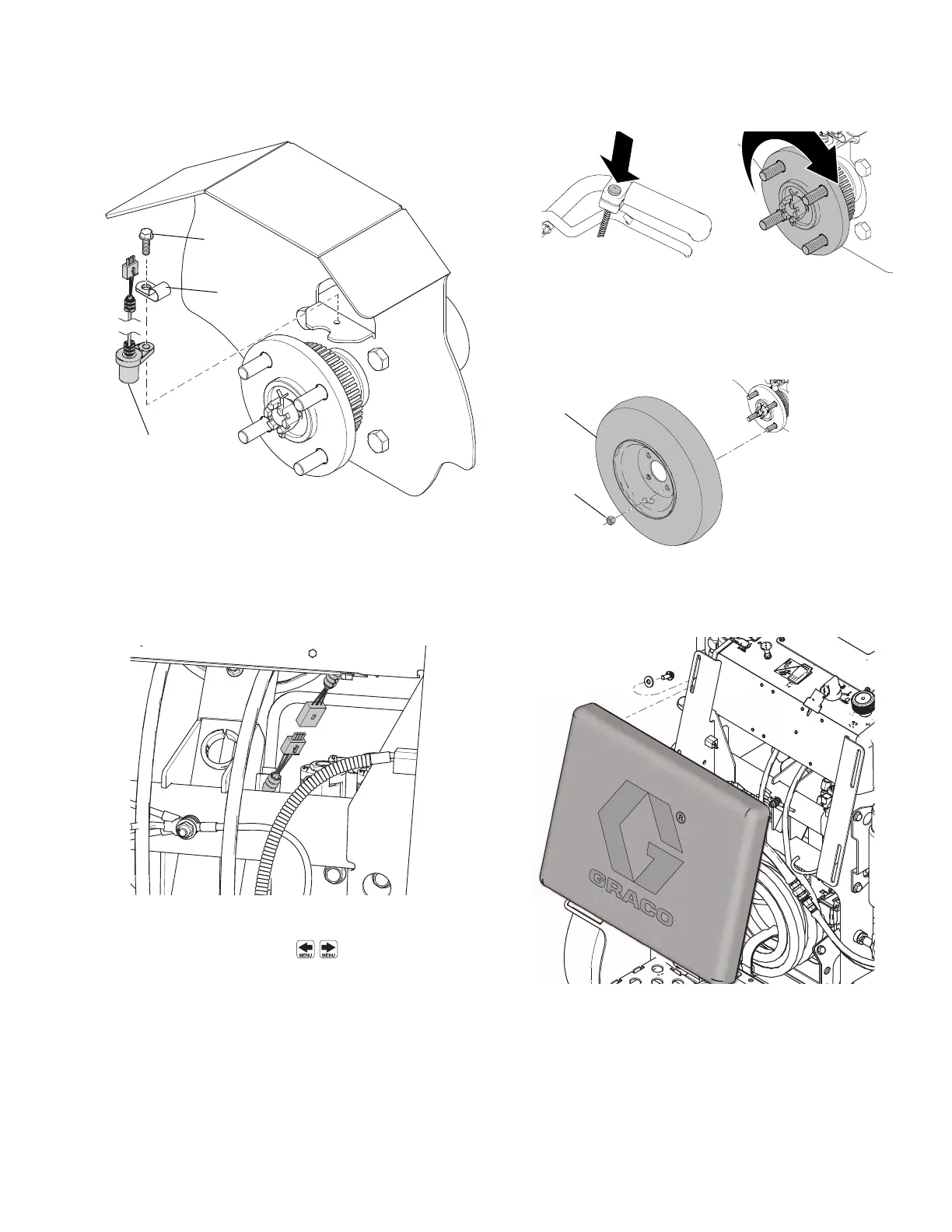

Installation
1. Install wheel sensor (4) and clamp (5) with screw
(6). See Removal step 5.
2. Connect wheel sensor connector to wire harness.
3. Verify sensor is working by turning on the main
power switch and press to display the
MEASURE screen.
4. Press gun trigger control button and rotate hub by
hand exactly three turns.
NOTE: Sensor is working properly if the measure
display reads 12.3 to 12.7 ft (3.75 to 3.87 m).
5. Install wheel (16) and four lug nuts (22).
6. Lower jack.
7. Install pad and tighten four screws.
8. Calibrate sprayer. See Operation manual.
ti23946a
6
5
4
ti19328b
ti19329a
ti18564a
ti18589a
22
16
ti23930a
