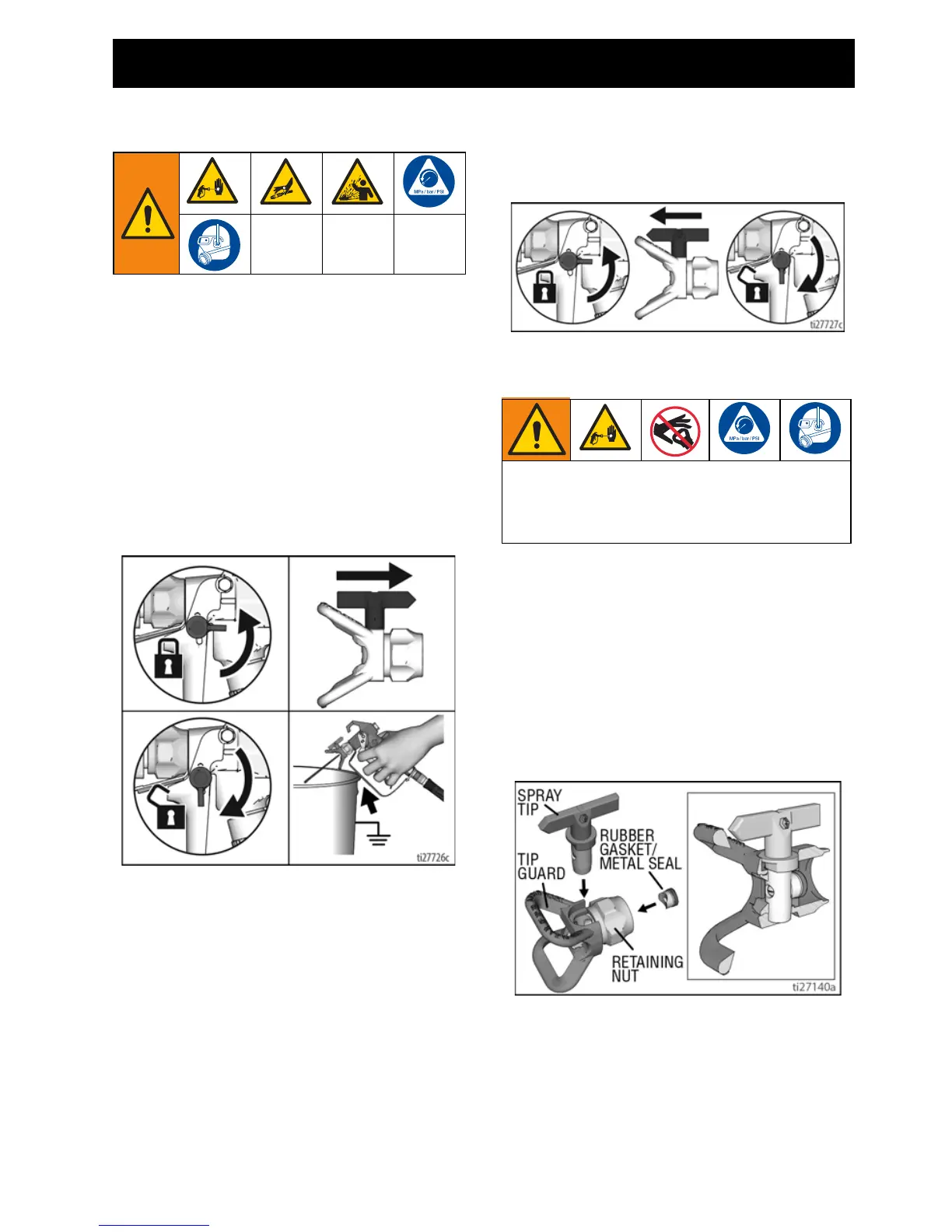

Clear Spray Tip Clog
In the event that particles or debris clog the
Spray Tip, the Spray Tip can be reversed to
quickly and easily clear particles without
disassembling the sprayer.
See Strain the Paint, page 16 for additional
information.
1. Engage trigger lock. Rotate Spray Tip to
UNCLOG position. Ensure spray tip
remains fully seated, pushed all the way
into the Spray Tip Guard. Disengage
trigger lock. Trigger gun at waste area to
clear clog.
NOTE: If Spray Tip is difficult to rotate when
turning to the UNCLOG position perform,
Pressure Relief Procedure, page 14, then
lower Prime/Spray Valve to SPRAY position
and repeat step 1.
2. Engage trigger lock. Rotate Spray Tip
back to SPRAY position. Disengage
trigger lock and continue spraying.
Spray Tip Installation
To prevent Spray Tip leaks make certain
Spray Tip and Spray Tip Guard are installed
properly.
1. Perform Pressure Relief Procedure,
page 14.
2. Engage trigger lock.
3. Verify Spray Tip Guard parts are
assembled in the order shown.
UNCLOG
To avoid serious injury from skin injection
do not put your hand in front of the spray tip
when installing or removing the spray tip
and spray tip guard.
SPRAY
