Cleanup with Power Flush
Valve
(Water-based materials only)
Power flushing is a faster method of cleanup.
It can only be used after spraying
water-based coatings.

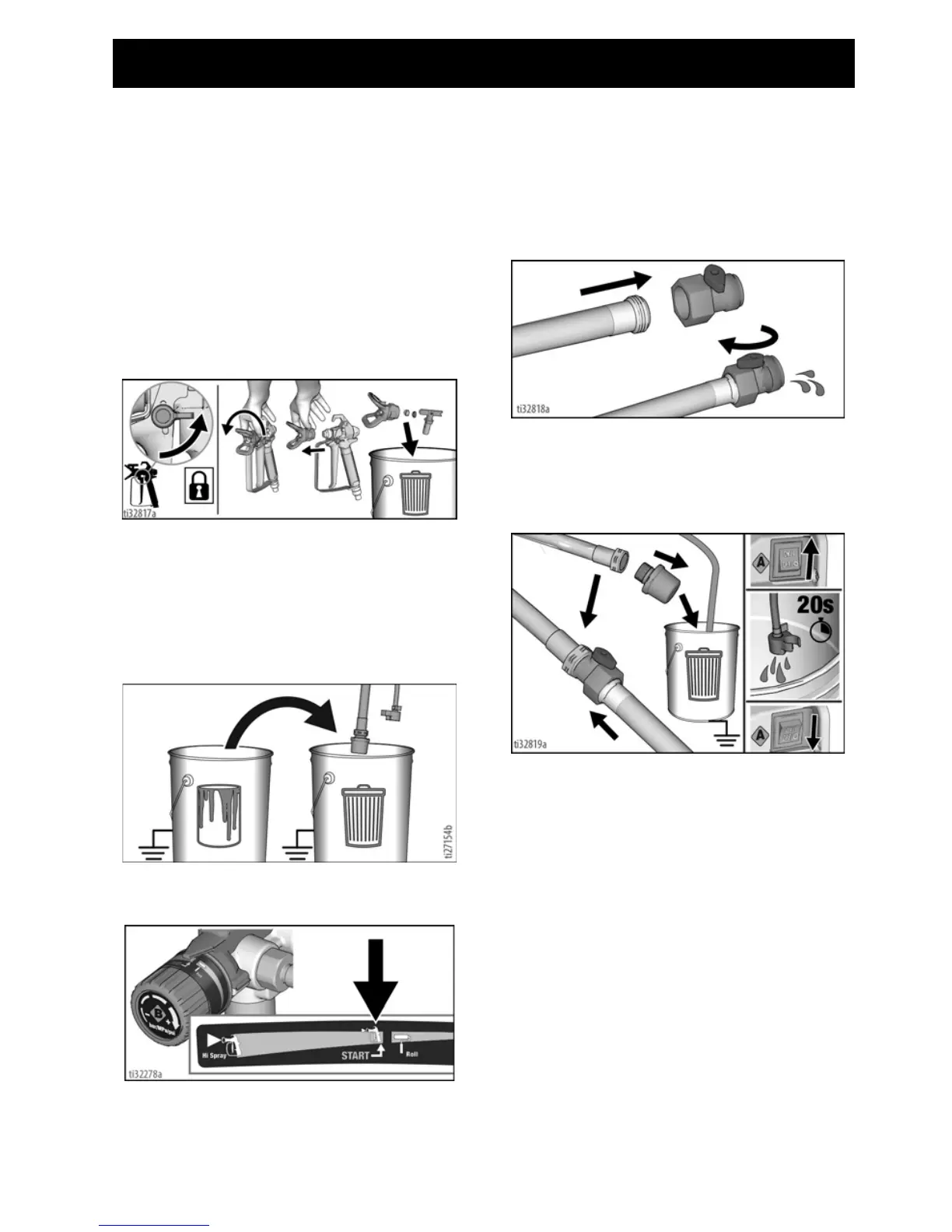

1. Perform Pressure Relief Procedure,
page 14.
2. Engage trigger lock. Remove Spray Tip
Guard assembly from gun and place in
waste pail.
3. Place empty waste and paint pails side
by side.
4. Lift Suction Tube and Drain Tube from
paint pail. Let paint drain into the pail.
5. Place suction and Drain Tube in waste
pail.
6. Turn pressure control knob to the
START position.
7. Screw Power Flush Valve (included
with sprayer) to garden hose. Close
Power Flush Valve.
8. Turn on water. Open Power Flush
Valve. Rinse paint off Suction Tube,
Drain Tube and inlet screen. Close
Power Flush Valve.
9. Unscrew inlet screen from Suction
Tube. Place inlet screen in waste pail.
Connect garden hose to Power Flush
Valve on Suction Tube. Leave Drain
Tube in waste pail.
10. Turn ON/OFF switch to ON position.
11. Open Power Flush Valve.
12. Circulate water through sprayer, into
waste pail, for 20 seconds.
13. Turn ON/OFF switch to OFF position.
NOTE: Step 14 is for returning paint in hose
to paint pail. One 25 ft (7.6 m) hose holds
approximate1ly 1/2 quart (0.5 liter) of paint.
14. To recover paint in hose, point gun into
paint pail while holding gun firmly to the
pail.
a. Disengage trigger lock (A).
b. Pull and hold gun trigger (B).
