Cleanup
3A5431B EN 23
Cleanup
Cleaning the sprayer after each use results in
a trouble free start up the next time the
sprayer is used.
• For short term shutdown periods (over-
night to two days), refer to Short Term
Storage, page 27.
• For cleanup after using water-based
materials only (by use of a garden
hose), refer to Cleanup with Power
Flush Valve, page 25.
• For cleanup from pails, refer to Clean-
ing from a Pail, below.
• See Cleaning Fluid Compatibility,
page 29 for information on flush-
ing/cleaning fluids and Static Ground-
ing Instructions (Oil-Based
materials), page 29.

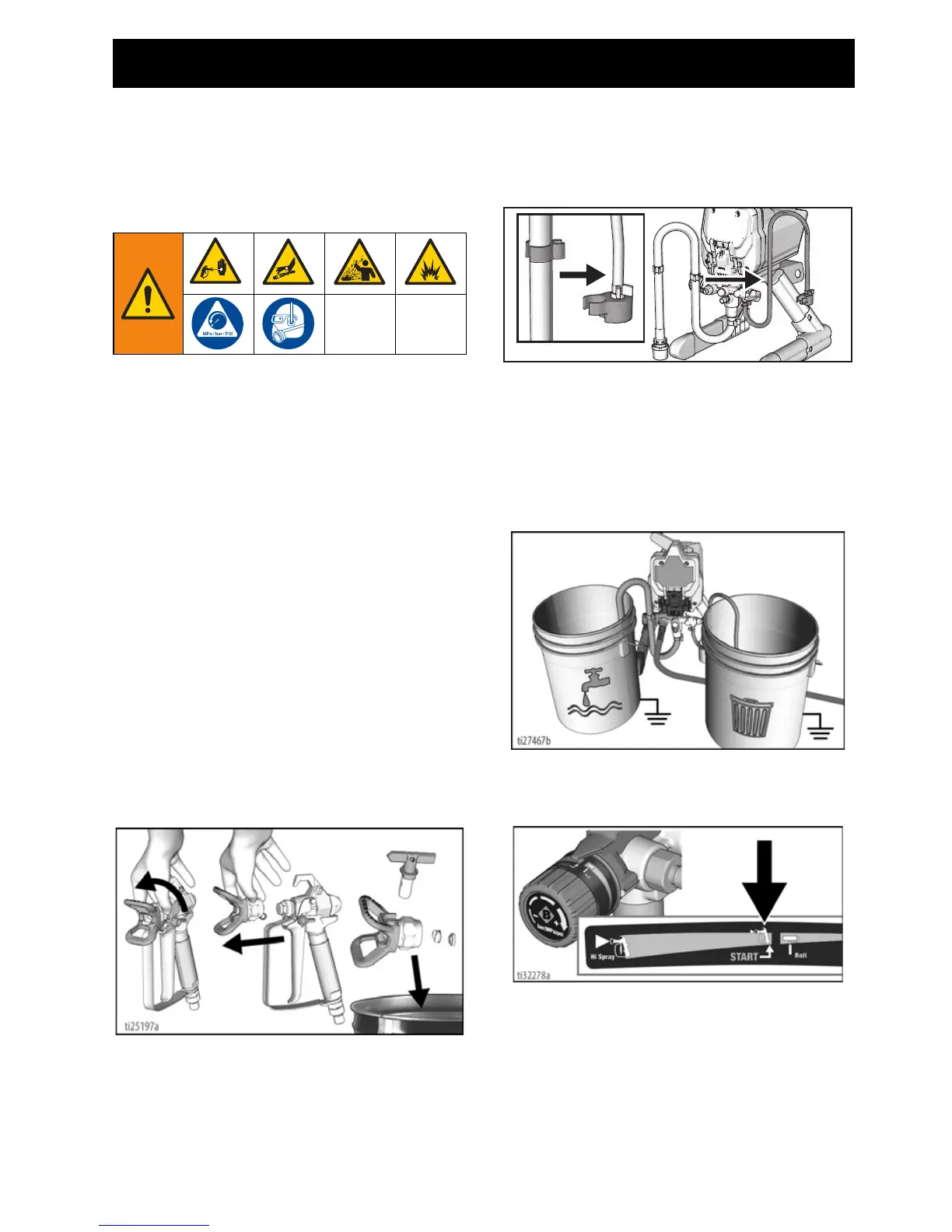

Cleaning from a Pail
1. Perform Pressure Relief Procedure,
page 14.
2. Remove Spray Tip Guard assembly
from gun and place in waste pail.
3. Lift Suction Tube and Drain Tube from
paint pail. Let paint drain into the pail.
4. Separate Drain Tube (smaller) from
Suction Tube (larger).
5. Place empty waste and flushing fluid
pails side by side.
6. Place Suction Tube in flushing fluid. For
water-based paint, use water. For
oil-based paints, use mineral spirits,
paint thinner, or compatible flushing
fluid. Place Drain Tube in waste pail.
7. Turn Pressure Control Knob to the
START position.
t
