Graco PR70 Series - Repair; Major Mechanical Assemblies, and Attachments

Base Frame and Air Cylinder Assemblies
Repair
Major Mechanical Assemblies, and Attachments

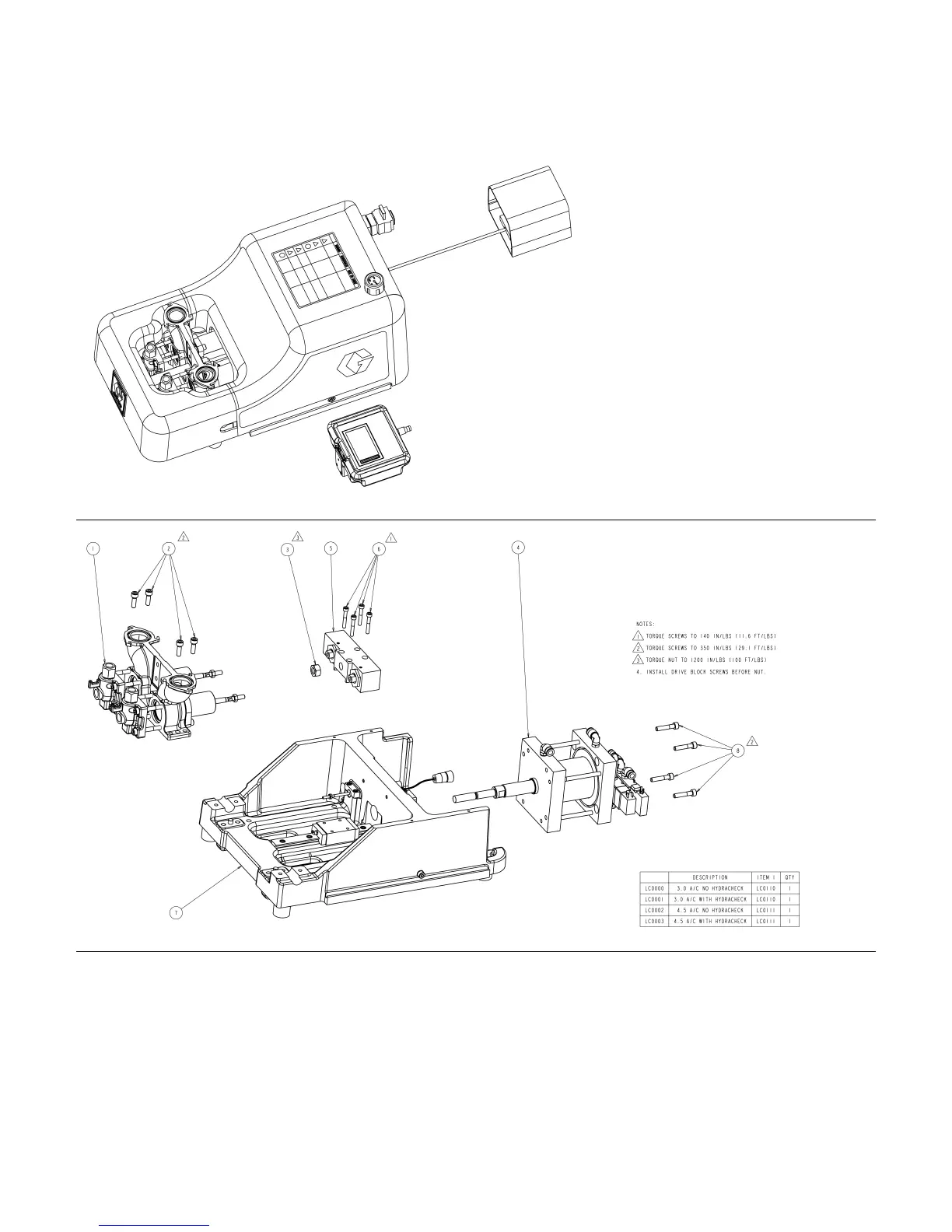

Figure 38: PR70 Top View w/o Tanks with Footswitch and HMI Illustrated
Figure 39: PR70 Base Frame to Air Cylinder, Pump and Drive Block Attachments
Key:
Ref P/N Description QTY Ref P/N Description QTY
1 LC0112 Pump Assembly, PR70 1 5 LC0107 Drive Block Assembly, PR70 1
2 120913 Screw, SHC, M8-1.25 x 25 4 6 121166 Screw, SHC, M6-1.0 x 40 4
3 120919 Nut, Hex, M14 7 LC0109 Base Frame Assembly 1
4 LC0110, or
LC0111
Air Cylinder Assemblies, 3.0” or 4.5” 1 8 121167 Screw, SHC, M8 - 1.25 x 40 4
312393C 33 of 52
