Graco PR70 Series - Drive Block Assembly; Pump Assemblies and Rebuild Kits

Pump Assembly
Drive Block Assembly

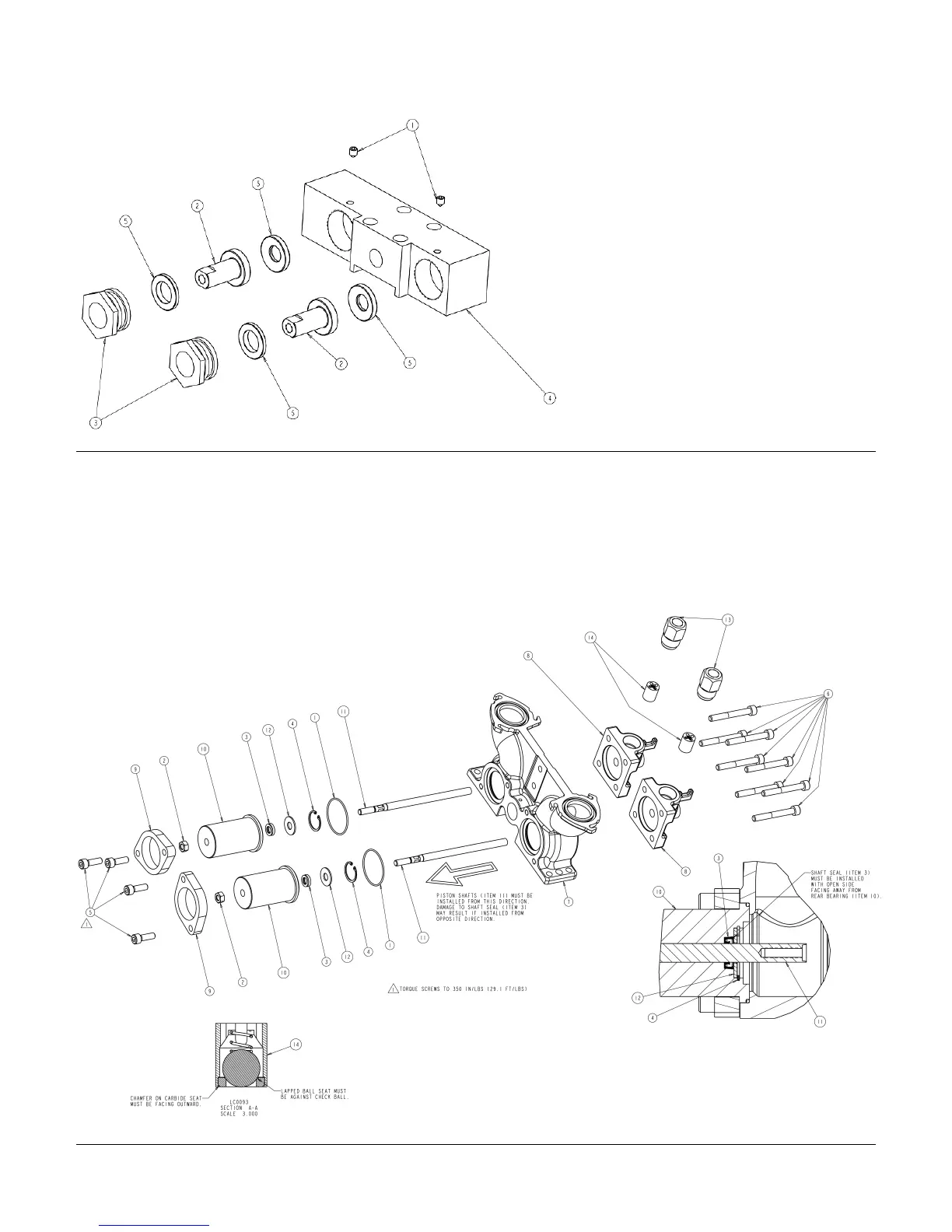

Figure 45: PR70 Drive Block Assembly (LC0107)
Key:
Ref P/N Description QTY Ref P/N Description QTY
1 120891 SCREW, SHS, M6-1.0 X 8, MS 2 4 15K805 BLOCK, DRIVE, PR70S 1
2 15K801 ROD, ALIGNMENT 2 5 15K868 WASHER, SPERICAL, ½ DIA. MODIFIED 2
3 15K802 NUT, RETAINER 2 6 84/0130-
27/11
LABEL, HAND CRUSH, 1.3 X 1.1, TRIANGLE,
ISO
1
Pump Assemblies and Rebuild Kits
Figure 46: PR70 Pump Assembly (LC0112)
312393C 38 of 52
