Miscellaneous Assemblies
Miscellaneous Mechanical Assemblies

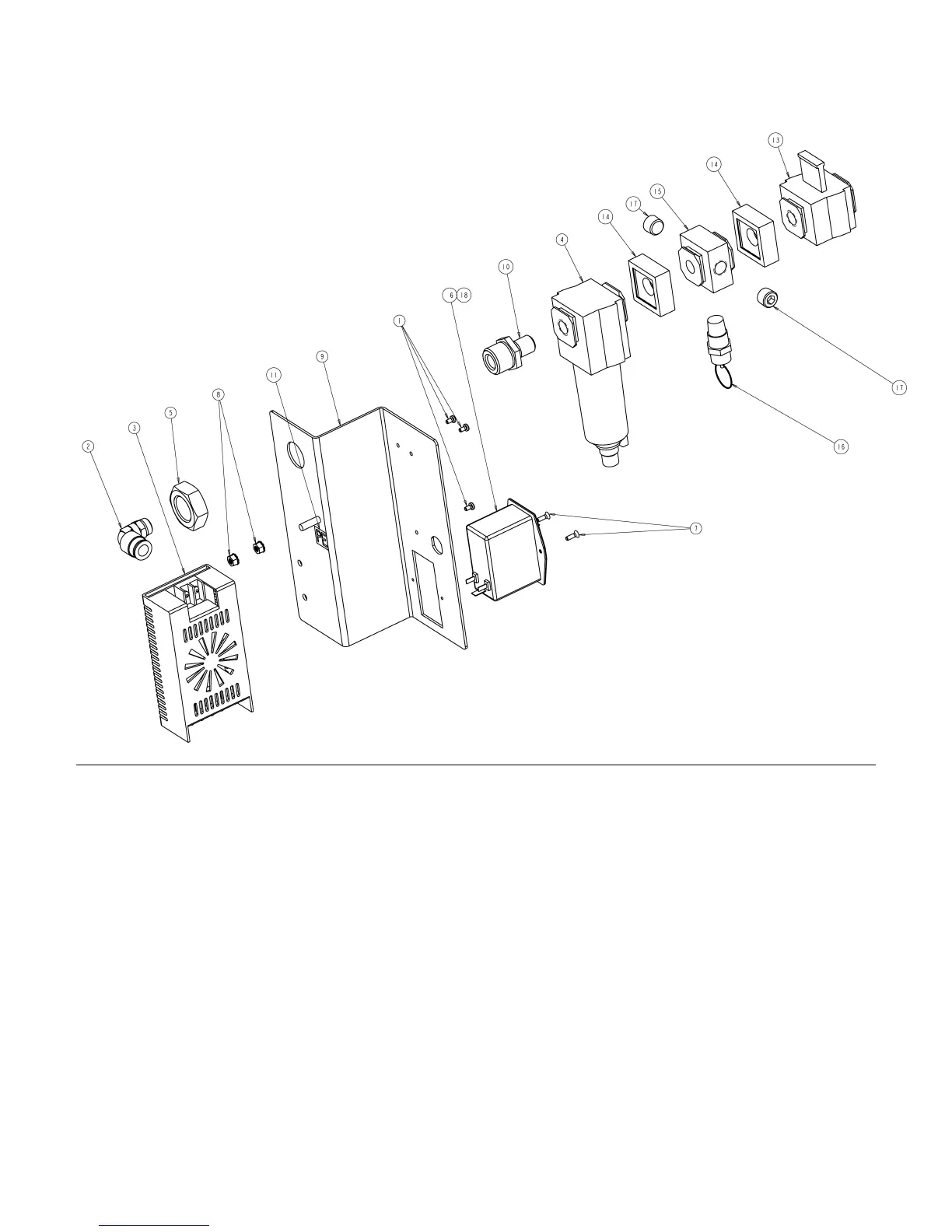

Figure 54: PR70 Power Entry Bracket Assembly (LC0106)
Key:
Ref P/N Description QTY Ref P/N Description QTY
1 119912 SCREW, PAN, M3X6, PHILLIPS, SS 3 11 84/0130-26/11 LABEL, PE 1
2 121018 ELBOW, SWVL, 3/8 X ¼ NPT, FXM, 90DE 1 12 LC0034 HARNESS, WIRE, REMOTE SIGNAL 1
3 120876 PWR SUPPLY, 24VDC, 40W, 100-240VAC IN 1 13 121178 VALVE, LOCKOUT, ¼ NPT 1
4 120882 FILTER, 1/4NPT 1 14 121179 QUIKCLAMP, ¼ NPT 2
5 120883 NUT, HEX, 7/8-14, MS 1 15 121180 MULTIPORT, [3] ¼ NPT 1
6 120910 PWR ENTRY, 120/240VAC, DUAL FUSE, EMI 1 16 94/0762/99 VALVE, RELIEF, ¼ NPT, M, 110PSI, SIL 1
7 120916 SCREW,FHSC, M3X0.5 X 10, SS 2 17 94/0430/99 PLUG, SKT HD, ¼ NPT, MS 2
8 120993 NUT, HEX, M5X0.8, WITH STAR WASHER 2 18 81/1054-4/11 FUSE 5X20MM, 4AMP, FAST, TYPE F, 250VAC 2
9 15K798 BRACKET, SWITCH, AIR 1 19 LC0031 CABLE ASSY, POWER IN 1
10 15K800 FITTING, BULKHEAD 1
To Replace the Fuses:
1. Remove the machine fuse holder from the PWR
Entry module (6) by inserting a flat-head
screwdriver between the holder and the back the
PWR Entry module (The fuse holder is above
where AC power is connected to the machine).
2. Replace the blown fuse(s) (18) into the fuse holder.
3. Re-install the holder into the PWR Entry Module.
312393C 45 of 52
