Graco PR70 Series - Base Frame Assembly

Base Frame and Air Cylinder Assemblies

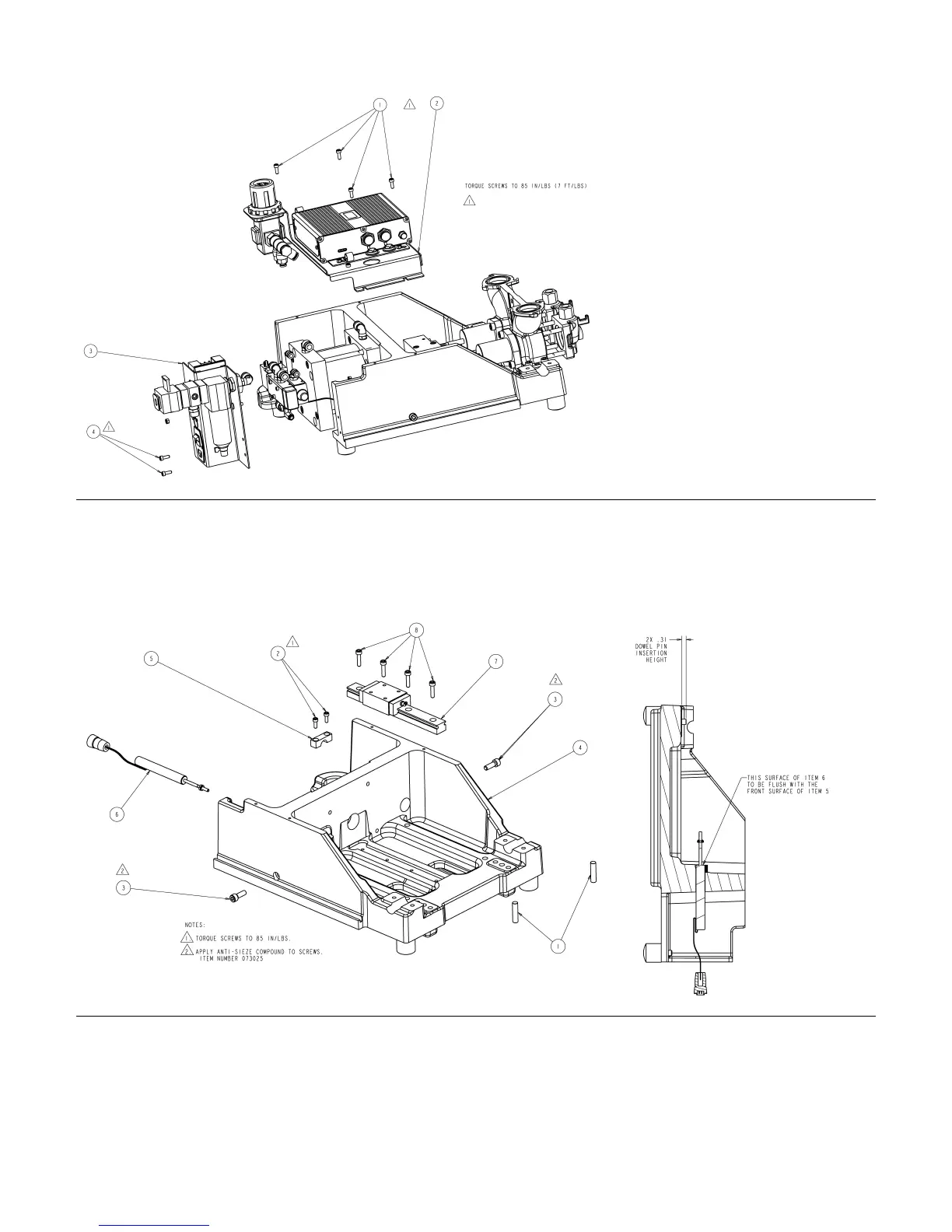

Figure 40: PR70 Power Entry Bracket and Control Bracket Assembly Attachments
Key:
Ref P/N Description QTY Ref P/N Description QTY
1 120885 Screw, SHC, M5 – 0.8 x 14 4 3 LC0106 Power Entry Assembly, PR70 1
2 LC0108 Control Bracket Assembly, PR70 1 4 120885 Screw, SHC, M5 – 0.8 x 14 2
Base Frame Assembly
Figure 41: PR70 Base Frame Assembly (LC0109)
Key:
Ref P/N Description QTY Ref P/N Description QTY
1 120599 PIN, DOWEL, 3/8DIAX1.50LG, SS 2 5 15K796 CLAMP 1
2 120885 SCREW,SHC, M5-0.8X14,MS,E 2 6 LC0033 TRANSDUCER ASSY, LINEAR, PR70S 1
3 120913 SCREW,SHC, M8X1.25X25,MS, E 2 7 120918 GUIDE, LINEAR 1
4 15K788 FRAME, BASE, PR70S, MACHINED 1 8 120886 SCREW, SHC,M6-1.0X25,MS,E 4
312393C 34 of 52
