Technical Data
Dimensions

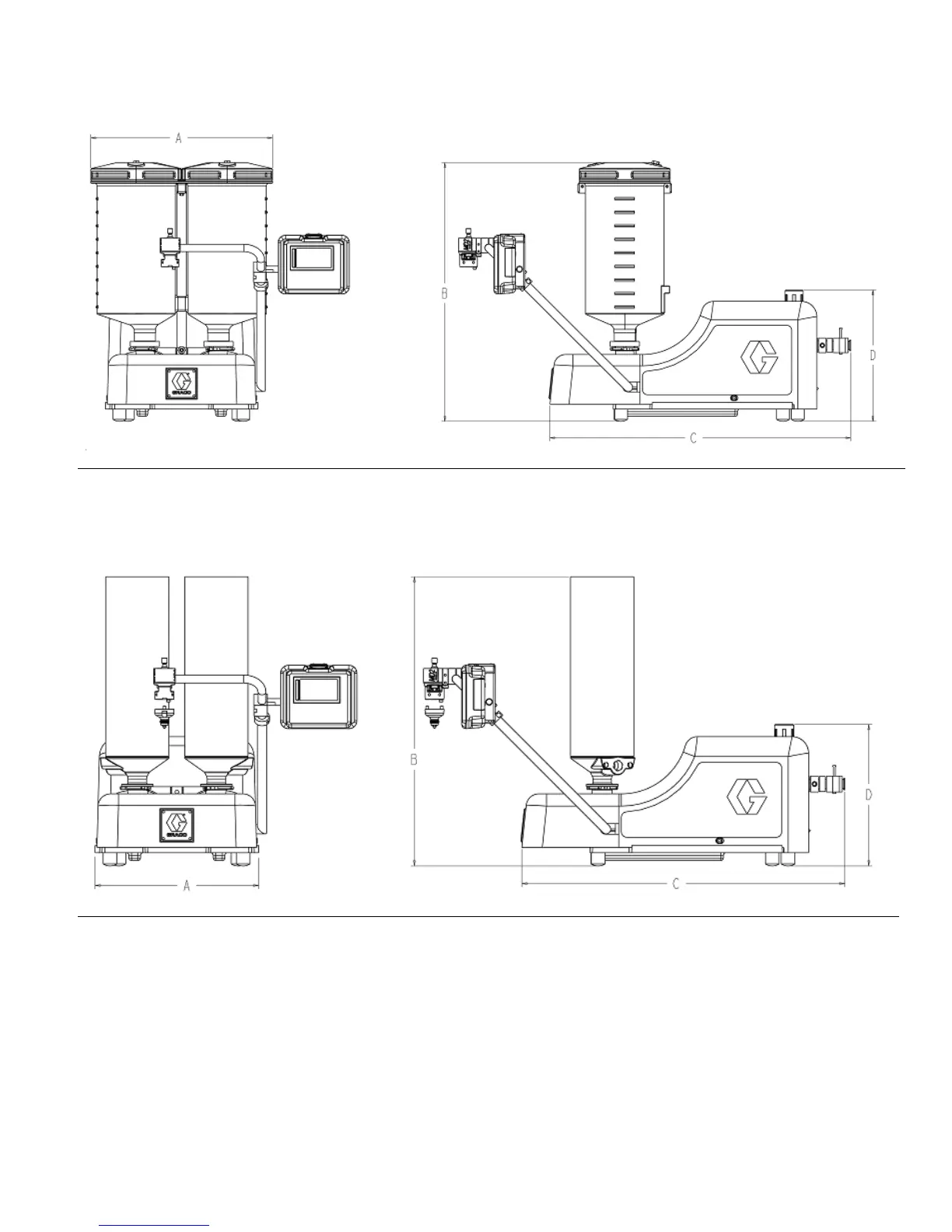

Figure 36: PR70 Dimensions (ON-Board PE Tank version Illustrated)
A typical PR70 Machine, with the standard On-Board twin 8 liter PE Tanks has the following dimensions:
Dimension In. (mm) Dimension In. (mm)
A (width) 18.49 (469.6) C (depth) 30.62 (777.7)
B (height) 26.39 (670.3) D (height in Back) 13.39 (340.1)
Figure 37: PR70 Dimensions (ON-Board 7.5L Stainless Tanks version Illustrated)
A typical PR70 Machine, with the standard On-Board 7.5 liter Stainless Steel Tanks has the following dimensions:
Dimension In. (mm) Dimension In. (mm)
A (width) 15.5 (393.7) C (depth) 30.62 (777.7)
B (height) 27.37 (695.2) D (height in Back) 13.39 (340.1)
312393C 51 of 52
