Miscellaneous Assemblies
312393C 46 of 52

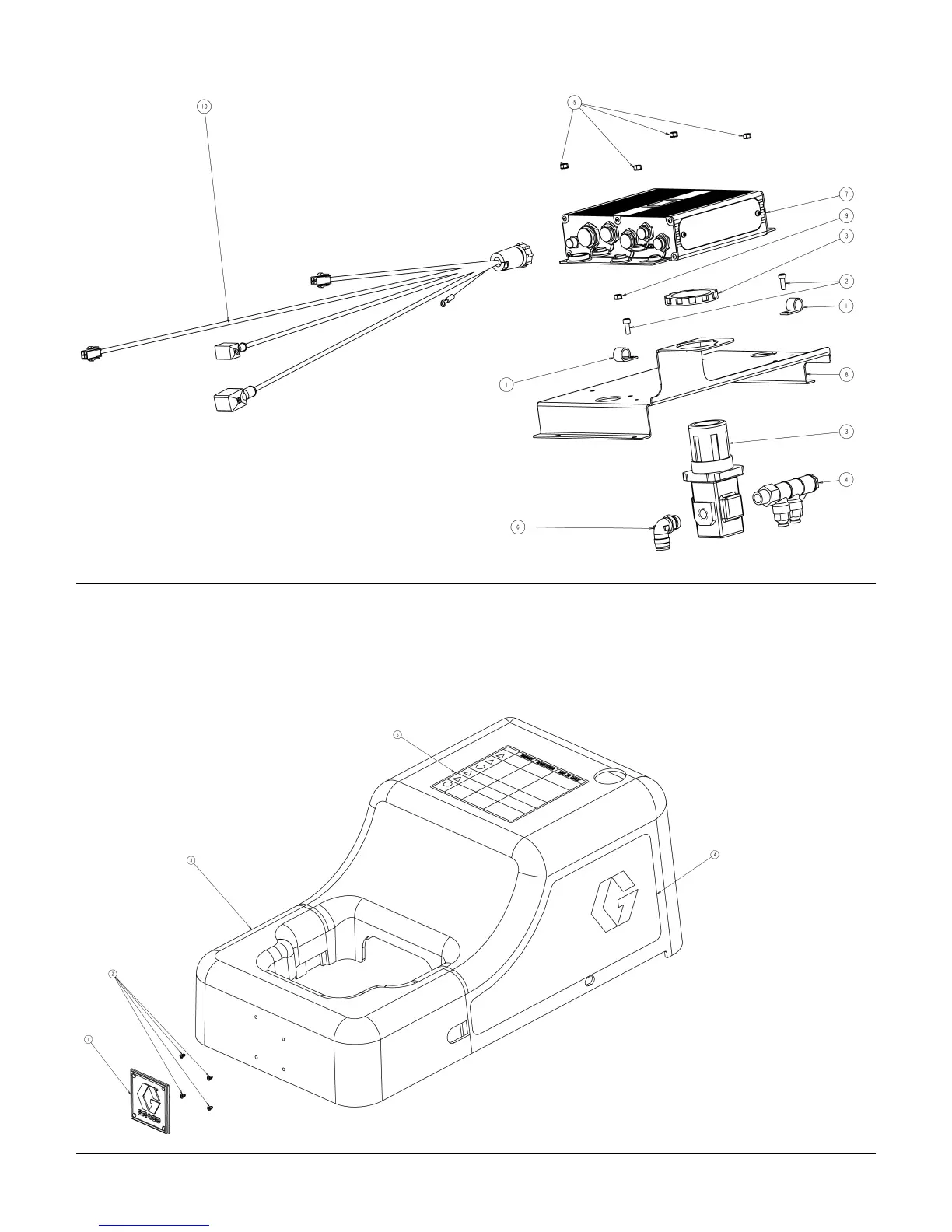

Figure 55: PR70 Control Bracket Assembly (LC0108)
Key:
Ref P/N Description QTY Ref P/N Description QTY
1 84/0153-1/89 CLAMP, HARNESS, REUSEABLE, 5/8,NYL 2 6 121019 ELBOW, SWVL, 3/8 X 3/8 NPT, FXM, 90DE 1
2 120885 SCREW, SHC, M5-0.8 X 14, MS, E 2 7 LC0124 CONTROLLER, FCM 1
3 120897 REGULATOR, 100PSI, 3/8NPT, GAGE 1 8 15K797 BRACKET, ELECTRICAL, 1
4 120954 MANIFOLD, PN, 3/8NPTX3/8T X ¼ TX1/4T 1 9 84/0130-25/11 LABEL,.375X.375 1
5 120993 NUT, HEX, M5X0.8, WITH STAR WASHER 5 10 LC0035 HARNESS, WIRE, I/O 1
Figure 56: PR70 Shroud Assembly (LC0113)
