Parts
44 312760Y
Fixed Ratio Frame Sub-Assembly, LC0290

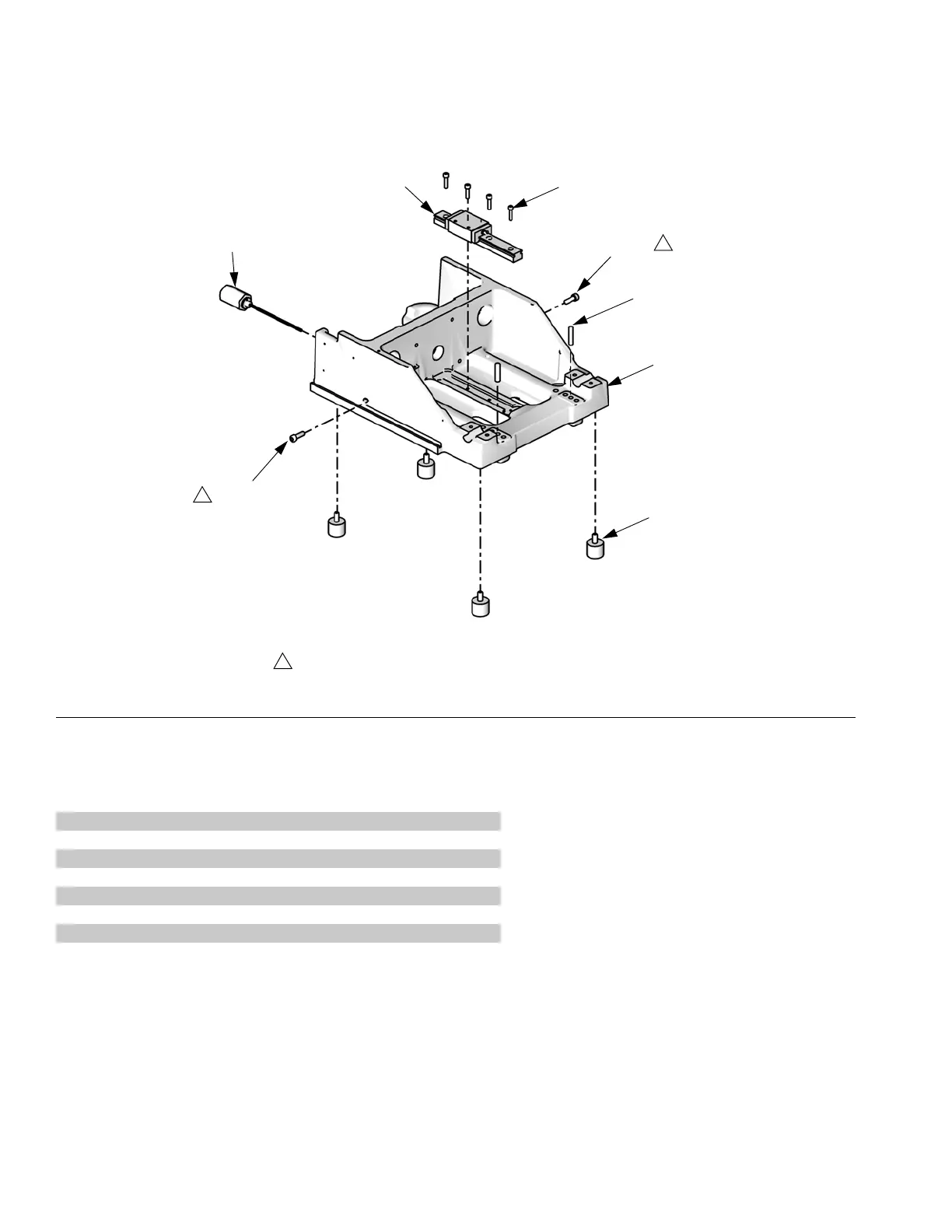

FIG. 17
Ref Part Description Qty
2201 120599 PIN, dowel 2
2202 120913 SCREW 2
2203 15K788 FRAME, base, machined 1
2204 LC0234 SENSOR, assembly 1
2205 120918 BEARING, linear, slide 1
2206 120886 SCREW 4
2207 96/0507/11 BUMPER, rubber, 3/8-16 x 0.63 4
Apply anti-seize compound (part 073025) to screws.
1
2201
ti12572a
1
2206
2202
2202
2205
2204
2203
2207
1
