Parts
312760Y 51

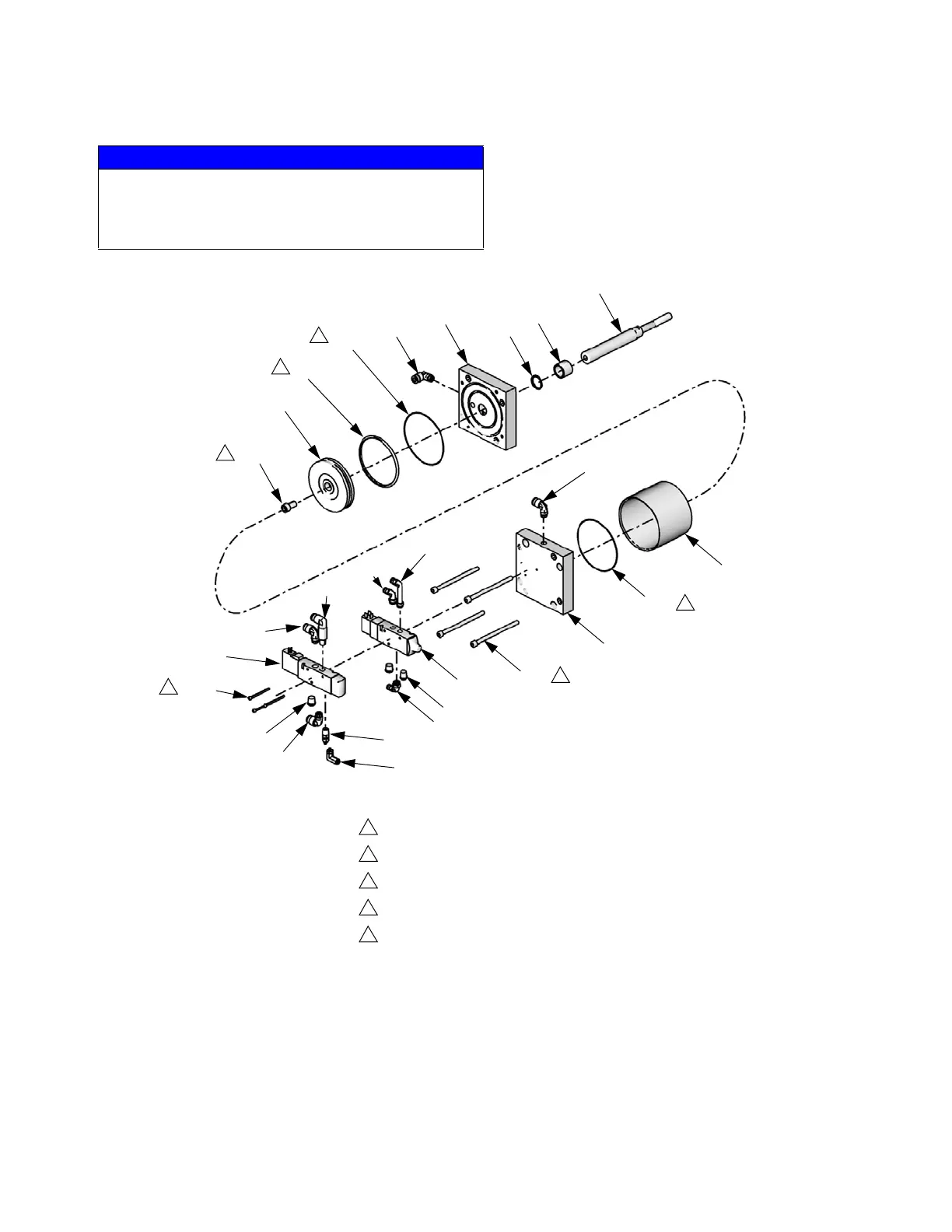

Air Cylinder, LC0110, LC0111, LC0230, LC0231
NOTICE
The four long screws (404) that attach the two drive
blocks (417, 418) must be tightened in a crisscross
pattern. Failure to do so may result in air cylinder
damage.
416
411
418
404
414
415
409†
410
412
414
402
407
412
422
415
413
412
420
405
401
417
412
411
403
419
406
408
Torque to 41 in-lb (4.6 N•m).
Torque to 350 in-lb (39.5 N•m).
Torque to 100 ft-lb (135 N•m).
Coat all sliding surfaces with lubricant, part 115982.
Apply sealant tape to npt fittings.
1
2
3
4
5
2
1
4
4
4
ti12490a
3
