Parts
312760Y 45

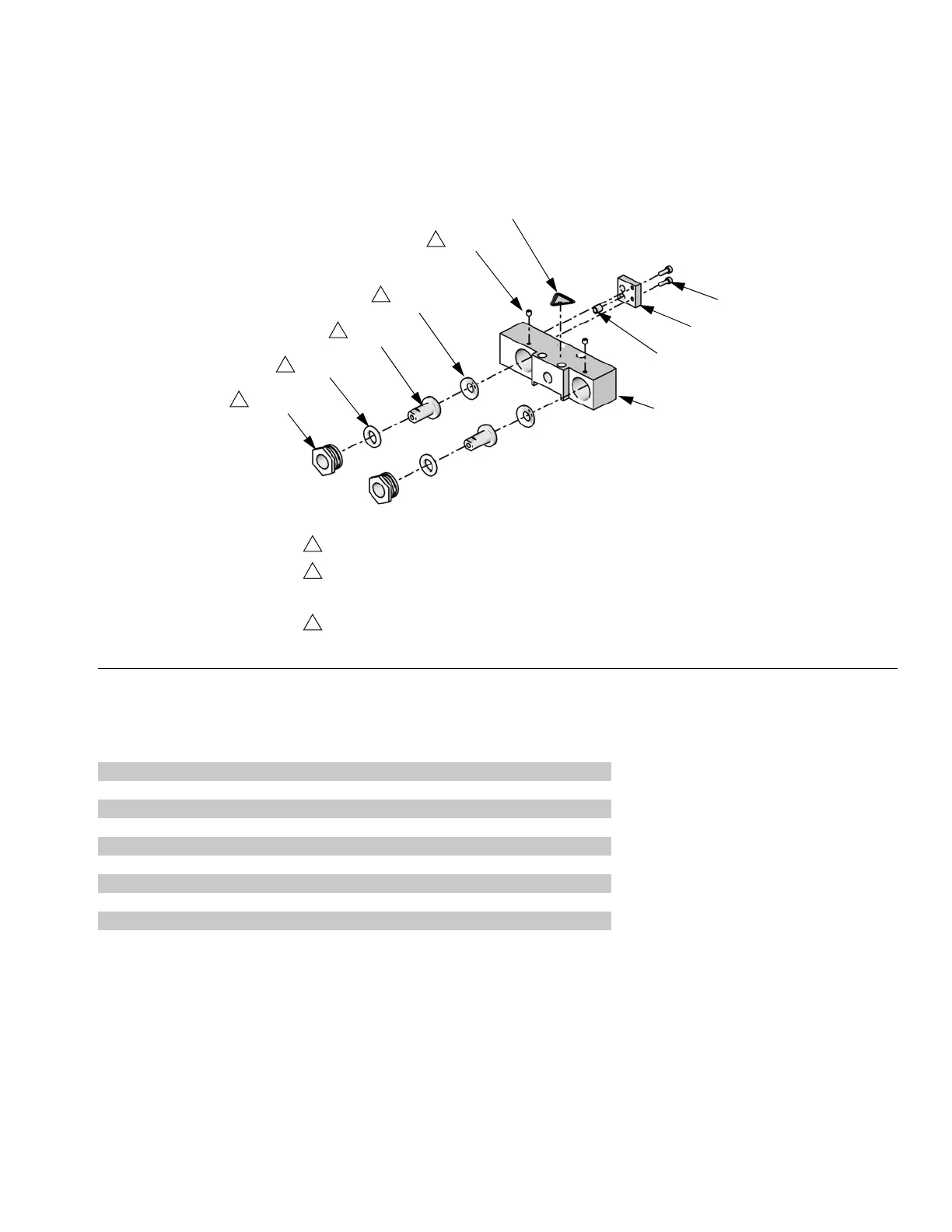

Fixed Ratio Drive Block
Assembly, LC0107
 Replacement Danger and Warning labels, tags, and cards are available at no cost.
F
IG. 18
Apply grease (part 115982) to all internal parts.
Tighten retaining nut until alignment rod (2302) cannot be moved.
Loosen retaining nut until alignment rod can move side-to-side with
no in-and-out movement.
Torque to 64 in-lb (7.2 N•m).
1
2
3
2308
2
ti12573a
2307
2309
2306
2305
2302
2305
2303
1
1
1
2301
3
2304
Ref Part Description Qty
2301 120891 SCREW, set, socket, cone point 2
2302 15K801 ROD, alignment 2
2303 15K802 RETAINER, nut 2
2304 15K805 BLOCK, drive 1
2305 15K868 WASHER, female, male modified, assembly 2
2306  84/0130-27/11 LABEL, warning, pinch point 1
2307 15T389 BRACKET, mounting, magnet 1
2308 120885 SCREW 2
2309 15G747 MAGNET, linear sensor 1
