Graco PR70 - Electrical Schematics

Electrical Schematics
312760Y 25
Electrical Schematics

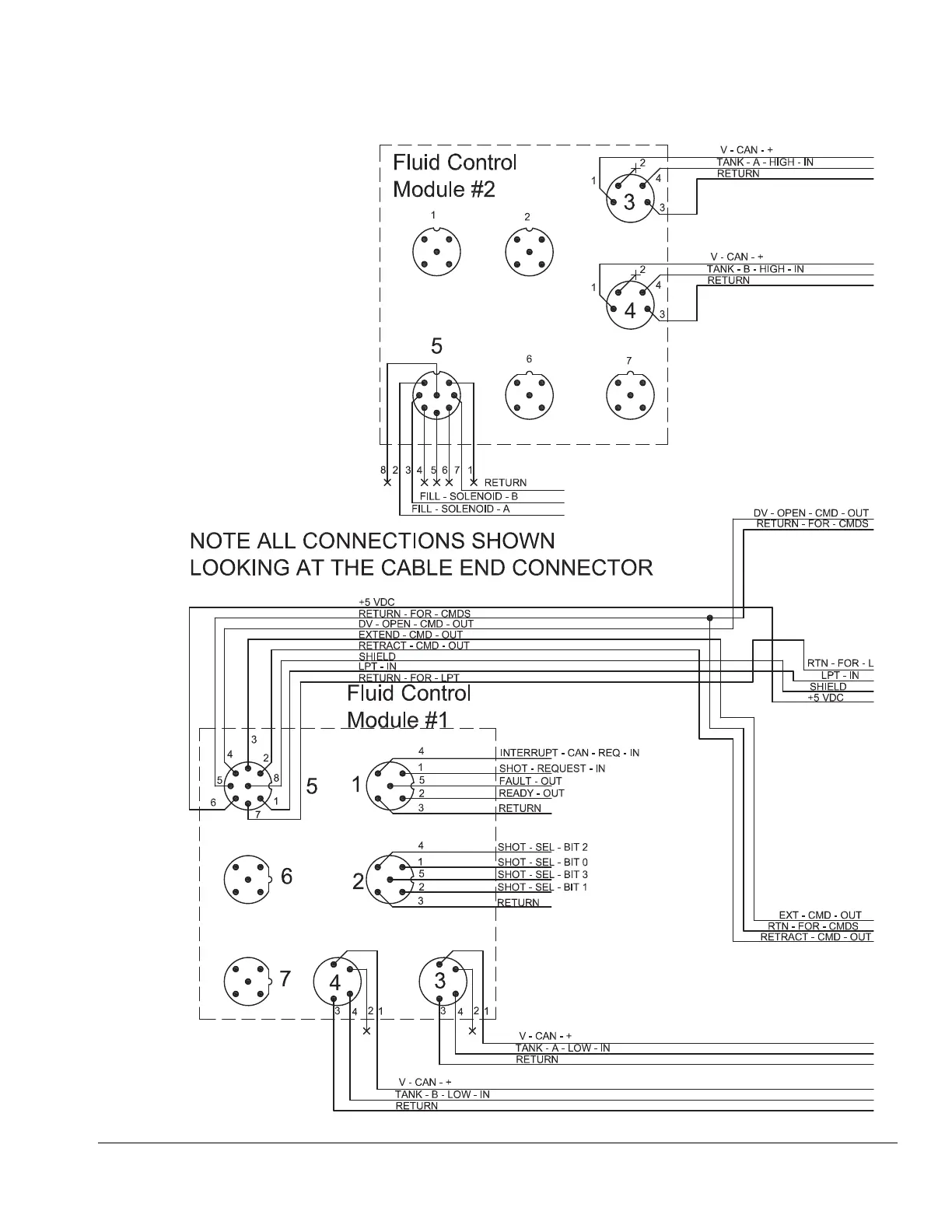

FIG. 3: Electrical Schematic - Page 1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
W
X
See F
IG. 6
See F
IG. 6
See F
IG. 6
NOTE: Fluid Control Module #2
sections apply only to models with
optional features purchased.
