Parts
312760Y 53

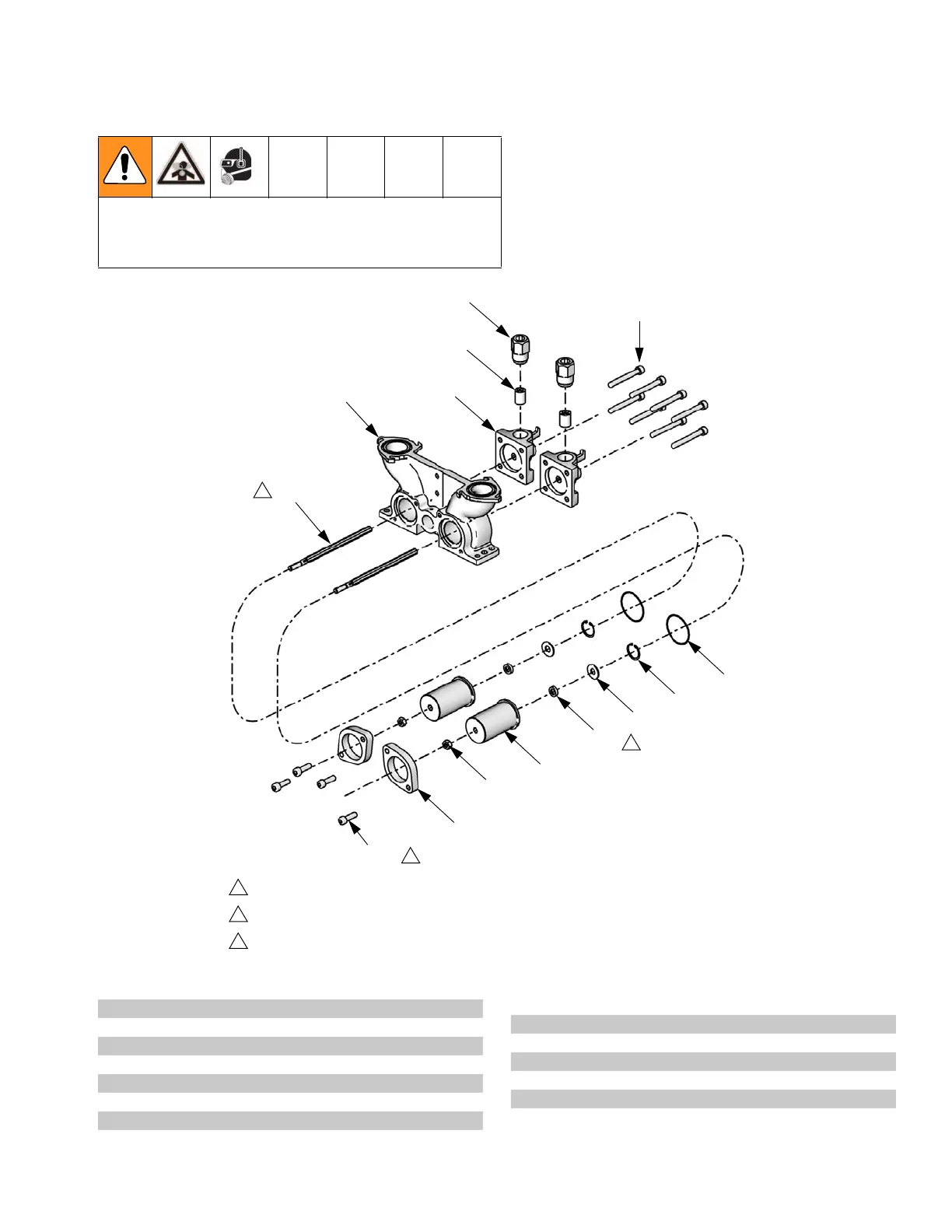

Pump Sub-Assembly, LC0112
The pump shaft is installed with Krytox. Contact with
Krytox can lead to flu-like symptoms. The MSDS for this
material is available upon request.
506
513
514
508
507
511
501
504
512
503
510
502
509
505
Torque to 350 in-lb (39.5 N•m).
Lube shaft with krytox grease prior to insertion into bearing.
Shaft seal (503) must be installed with open side facing the washer (512).
Ref Part Description Qty
501 106258 PACKING, o-ring 2
502 108712 NUT, hex 2
503 120887 SEAL, posipak, 3/8 x 5/8, uhmwpe 2
504 120890 RING, retaining 2
505 120913 SCREW 4
506 120982 SCREW 8
507 15K786 HOUSING, pump 1
508 15K787 CAP, end, pump, machined 2
509 15K803 COLLAR 2
510 15K804 HOUSING, bearing, seal 2
511 15K824 ROD, piston 2
512 15K828 WASHER, housing, seal 2
513 15K895 HOUSING, check valve 2
514 LC0093 KIT, rebuild, valve, check 2
Ref Part Description Qty
