Parts
54 312760Y

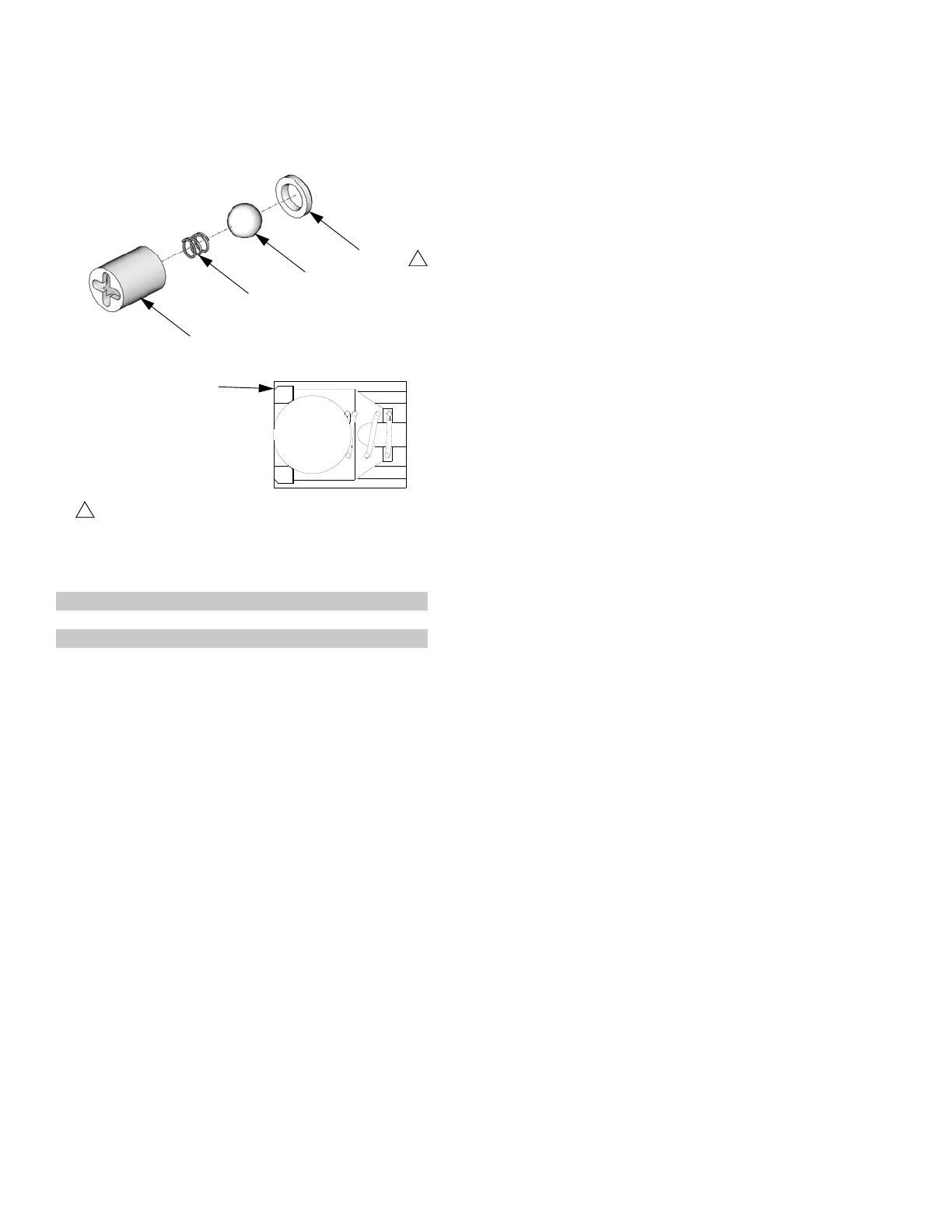

Check Valve, Assembly LC0093
Ref Part Description Qty
2101 105445 BALL, 0.5000 1
2102 121084 SPRING 1
2103 15D312 BUSHING, ball guide 1
2104 196832 SEAT, lapped 1
1
The side of the seat with an
outside diameter chamfer must point away from the ball.
1
2104
2101
2102
2103
ti12565a
Chamfer
