On-Board Stainless Steel Feed Systems

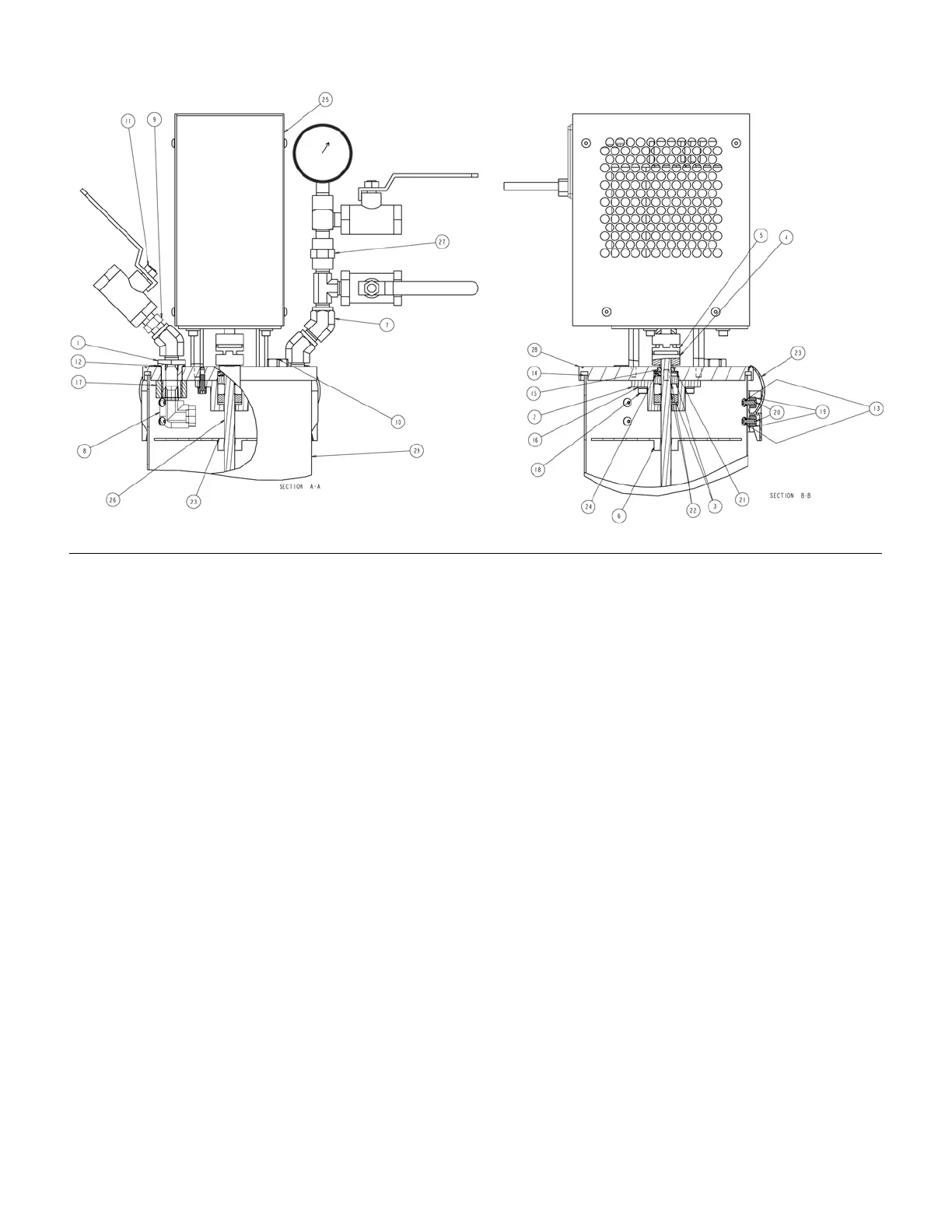

Figure 52: LID ASSEMBLIES WITH ELECTRIC AGITATOR, DEGAS & FILL PORT (P/Ns LC0025 & LC0026)
P/N LC0025 LID ASSY,7.5L, DEGAS, FILL PORT, AG 120V
1 01/1174-3/97 BULKHEAD,1/4 NPT,TANKLID,THIN,TFM,ALUM 16 96/0005/98 WASHER,LOCK,SPLIT,#10,SS>
2 01/2212/70 HOUSING,BEARING,ELECTRIC AGITATOR 17 96/0056/98 NUT,HEX,JAM,3/4-16,SS
3 84/0120/98 BEARING,BALL,0.375ID,DS 18 96/0125/98 SCREW,SHC,10-24X0.50,SS@@@
4 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID 19 96/0176-1/98 NUT,LOCK,8-32,NYLOCK,SS@@@
5 84/2215-B/11 COUPLING,ALIGNMENT,1"OD,DISK,NYLON 20 96/0282/98 SCREW,BHCS,8-32X0.38,SS@@@
6 87/0220-2/98 PLATE,SLINGER,TFM,3/8"ID,5-1/2"OD 21 96/0733/87 WASHER,3/8X7/8X0.062,PTFE
7 94/0299/98 ELBOW,STREET,1/4NPT,45DEG,3000PSI,316SS 22 96/0817/99 RING,RET,EXT,0.375,MS>@@@
8 94/0300-1HP/98 ELBOW,STREET,1/4NPT,90DEG,3K,SS 23 96/0820/98 CLAMP,OVER THE CENTER,SS
9 94/0320-1/99 NIPPLE,HEX,1/4NPT,5K,MS 24 97/2215/98 SPRING,WAVE,0.86X0.65X0.010,SS
10 94/0752-D/97 VALVE,RELIEF,9/16-32,5PSI 25 255337 AGITATOR MOTOR ASSEMBLY 120V
11 94/0900-R2/99 VALVE,BALL,2W,1/4NPT,F,2000PSI,MS 26 255339 AGITATOR BLADE ASSEMBLY
12 95/0117/00 O-RING,VIT,JAI,> 27 255342 MANIFOLD ASSY, VACUUM TREE
13 95/0518/00 O-RING,VIT,JJF,> 28 15M322 LID,7L,1 1/4"NPT AND 9/16-32,AG,FILL
POR
14 95/0524/01 GASKET,LID,TFM,NIT 29 15M392 TANK MODIFICATION
15 95/0849/11 POSIPAK,3/8IDX5/8OD,STD,P/VIT,>
