Graco PR70 - Identify Your Feed System

Feed System Identification
Identify Your Feed System
1. Your machine should include one of 5 feed system
options (see Figure 1 below)
A. On-Board Dual Polyethylene Tanks
B. On-Board Stainless Steel Tanks
C. 1-1/2” NPT Flange for attaching your own
feed package
D. A ccumulators
E. Off-Board Stainless Steel Tanks
F. Combination of One On-Board & One Off-
board Stainless Steel Tank
2. Each feed system has a variety of possible
options which will be covered in detail in
subsequent sections of this manual. Once you
have identified your feed system, please refer
back to the table of contents for the location of
your specific information
A. B C.
D. E. F.

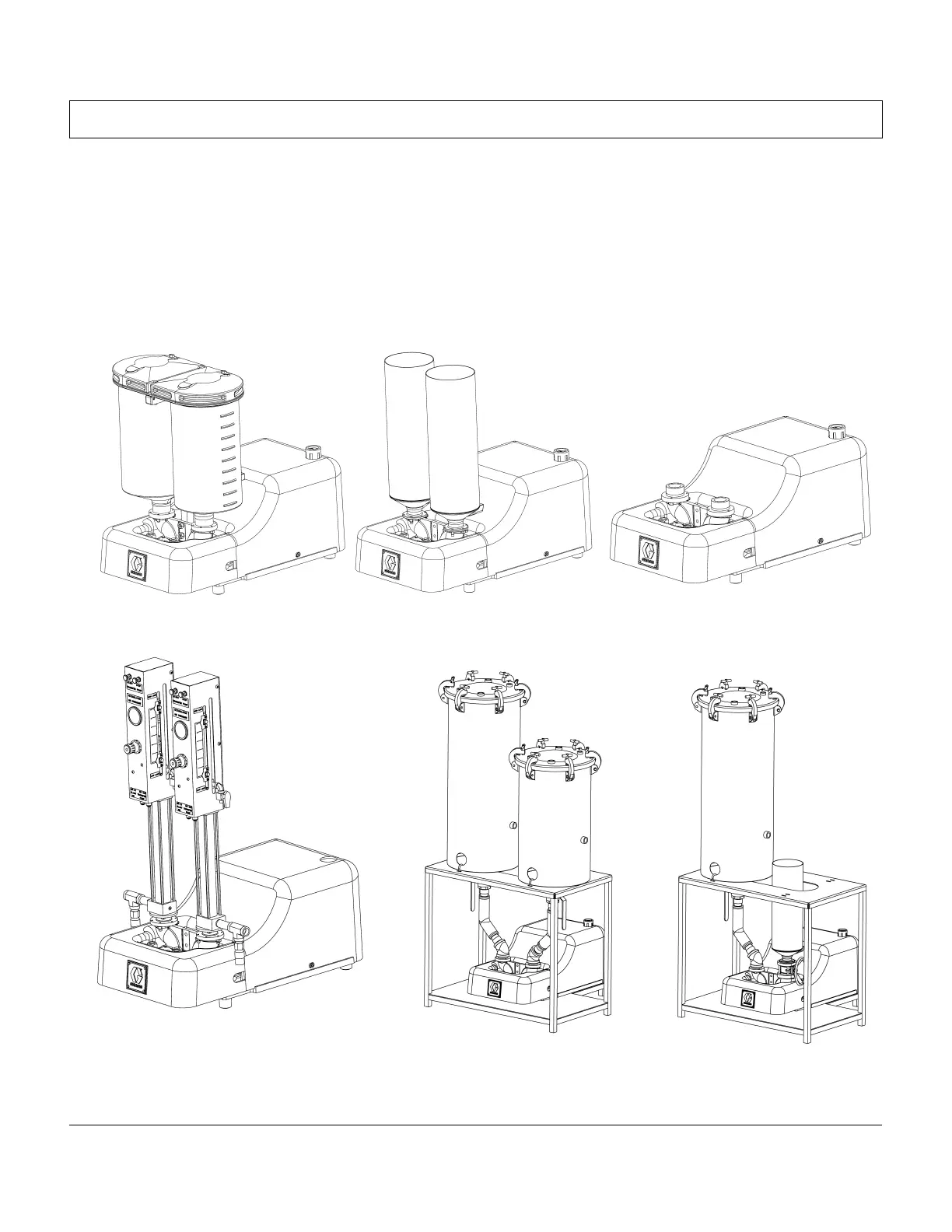

Figure 1: Typical PR70 (without HMI, hoses or dispense valves. Off-Board Tanks assemblies may or may not
come with the stand shown here)
